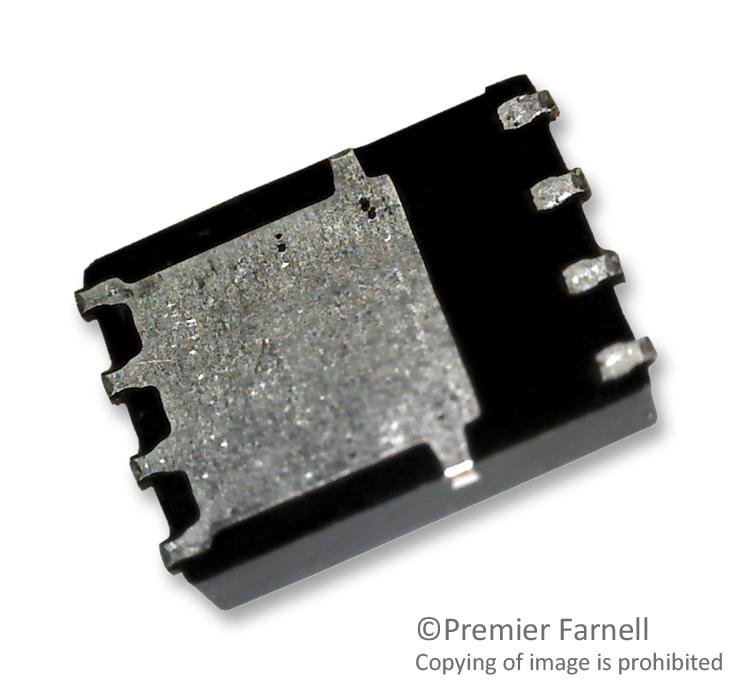

ONSEMI NTMFS08N2D5C Power MOSFET
The NTMFS08N2D5C is an N-channel shielded gate PowerTrench MOSFET designed for high efficiency in power switching applications. Utilizing ON Semiconductor's advanced PowerTrench technology, it offers low on-resistance and robust switching performance, making it ideal for primary DC-DC conversion, synchronous rectification, motor drives, and solar power systems. With a voltage rating of 80V and a continuous drain current of 166A, this MOSFET ensures reliable operation with excellent thermal characteristics, including a junction-to-ambient thermal resistance of 45°C/W, making it suitable for demanding industrial and electronic applications.
ONSEMI NTMFS08N2D5C Power MOSFET Specifications:
- Drain to Source Voltage: 80 V
- Gate to Source Voltage: ±20 V
- Continuous Drain Current: 166 A at 25°C
- Pulsed Drain Current: 823 A
- Power Dissipation: 138 W at 25°C
- Operating Junction Temperature: -55°C to +150°C
- Thermal Resistance, Junction to Case: 0.9 °C/W
- Thermal Resistance, Junction to Ambient: 45 °C/W
- Single Pulse Avalanche Energy: 600 mJ
- Rds(on): 2.7 mΩ at Vgs = 10 V, Id = 68 A
- Packaging: Power 56, Reel 13", 12mm wide, 3000 units
- RoHS Compliant, 100% UIL Tested
Buy the ON Semiconductor Series PowerTrench N-Channel MOSFET: NTMFS08N2D5C
Order the ON Semiconductor NTMFS08N2D5C now to enhance your power electronic designs. This high-current N-channel MOSFET features a low Rds(on) of 2.7 mΩ, rated at 80V and capable of handling continuous drain currents up to 166A. Its advanced PowerTrench technology ensures efficient switching with minimal losses, making it perfect for industrial power supplies, motors, inverter systems, and solar applications. With RoHS compliance and robust thermal performance, this MOSFET guarantees reliable operation and easy integration into your power management solutions.
Buy ON Semiconductor NTMFS08N2D5C now and experience unmatched reliability and performance in high-current power switching applications.
