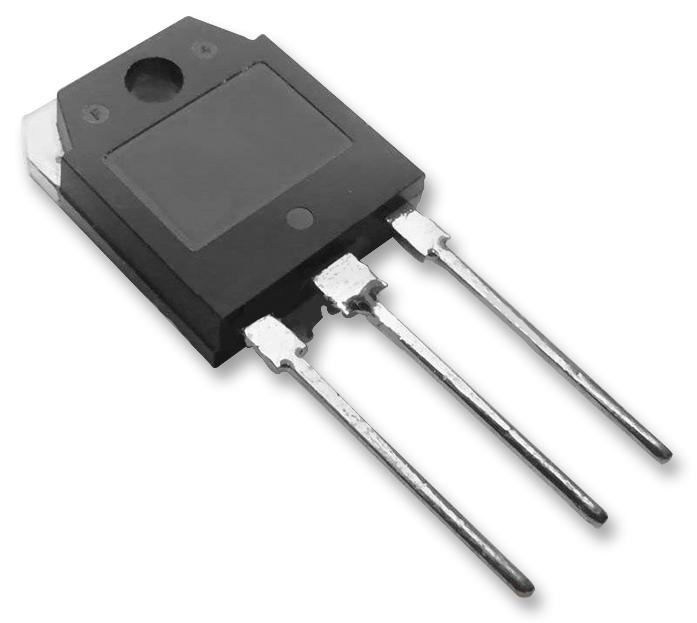

ONSEMI FDA24N40F High-Voltage Power MOSFET
The FDA24N40F is a high-voltage N-channel MOSFET designed for switching power supply applications such as PFC, TV power, and uninterruptible power supplies. It features a drain-source voltage of 400V, low Rds(on) of 19mΩ at 10V gate drive, and a low gate charge of 46nC for efficient switching. With excellent avalanche energy ratings, short reverse recovery times, and high thermal stability, it offers reliable performance in demanding industrial and electronic systems, ensuring high efficiency and system durability.
ONSEMI FDA24N40F High-Voltage Power MOSFET Specifications:
- Drain to Source Voltage: 400 V
- Gate to Source Voltage: ±30 V
- Drain Current, Continuous: 23 A at 25°C
- Drain Current, Pulsed: 92 A
- Single Pulsed Avalanche Energy: 1190 mJ
- Avalanche Current: 23 A
- Repetitive Avalanche Energy: 23.5 mJ
- Peak Diode Recovery dv/dt: 45 V/ns
- Power Dissipation: 235 W at 25°C
- Operating Temperature Range: -55°C to +150°C
- Thermal Resistance, Junction to Case: 0.53°C/W
- Thermal Resistance, Junction to Ambient: 40°C/W
- Package: TO-3PN
- Maximum Lead Soldering Temperature: 300°C for 5 seconds
- Gate Threshold Voltage: 3.0V to 5.0V
Buy the ON Semiconductor FDA24N40F – Reliable Switching MOSFET for Industrial Applications
Order the ON Semiconductor FDA24N40F online today and benefit from high efficiency, excellent avalanche energy ratings, and low Rds(on) for demanding power supply and switching applications. This high-voltage N-channel MOSFET ensures reliable performance with a 400V drain-source voltage, low gate charge, and robust thermal stability, making it ideal for industrial systems, uninterruptible power supplies, and electronic converters. Secure your supply now and enjoy fast shipping along with technical support tailored to your project's needs.
Buy ON Semiconductor FDA24N40F now and experience unmatched reliability and performance in high-voltage power switching systems.
Frequently Asked Questions
Where can I buy ONSEMI FDA24N40F?
You can click on the BUY or RFQ button to purchase FDA24N40F from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FDA24N40F?
You can download the FDA24N40F datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FDA24N40F?
ONSEMI
