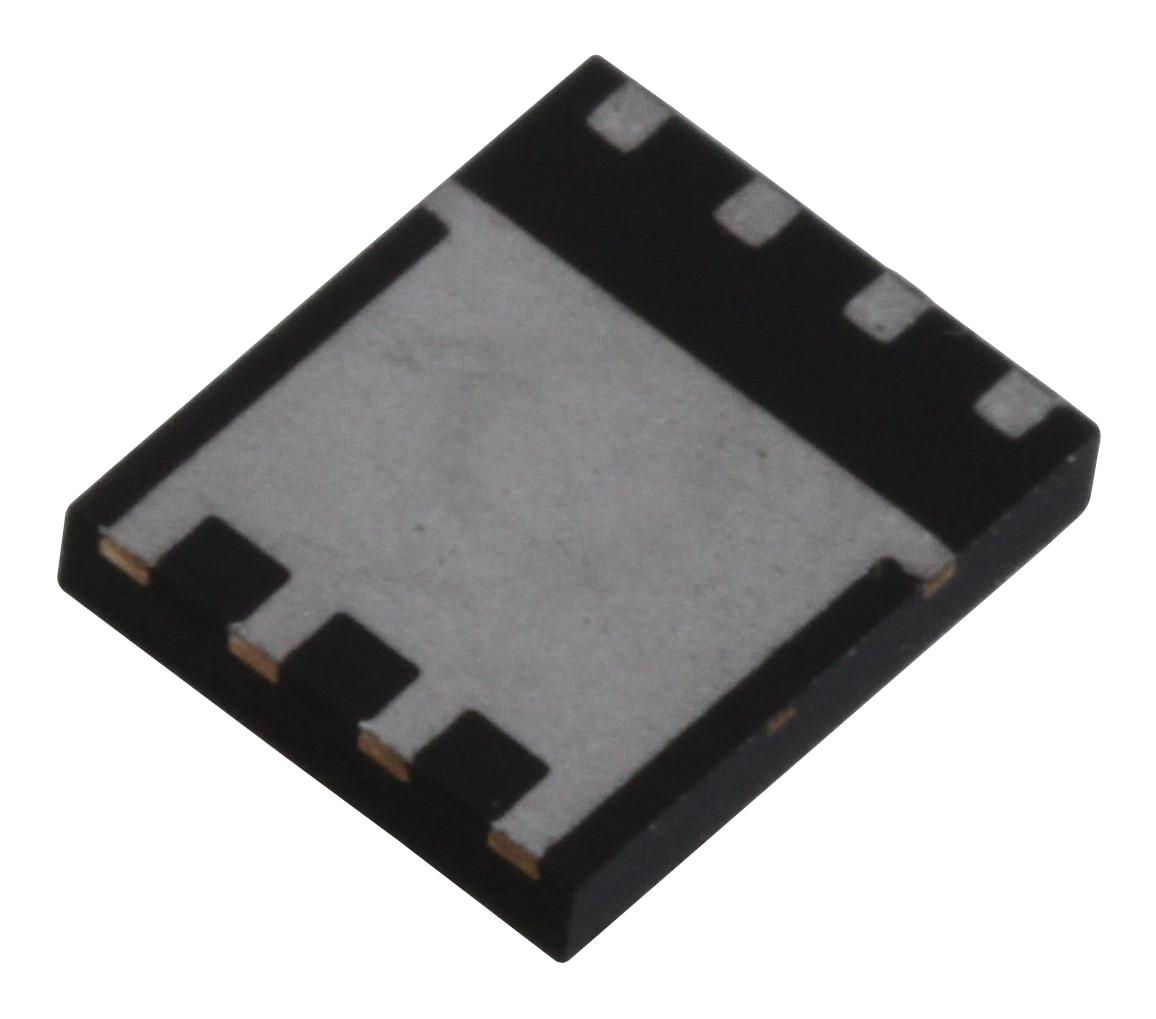

ONSEMI NTMFS10N3D2C High-Current MOSFET
This high-performance N-channel Shielded Gate PowerTrench MOSFET features advanced Shielded Gate technology, optimized for low on-state resistance and superior switching performance. Ideal for primary DC-DC conversion, synchronous rectification, and motor drive applications, it supports a drain-to-source voltage of 100V and continuous drain current of 151A at 25°C. Built with a robust Power 56 package, it delivers high avalanche energy, low gate charge, and excellent thermal characteristics, ensuring reliability in demanding industrial environments. This RoHS-compliant device is UL listed and tested for robust operation.
ONSEMI NTMFS10N3D2C High-Current MOSFET Specifications:
- Drain to Source Voltage: 100 V
- Continuous Drain Current: 151 A at 25°C
- Pulsed Drain Current: 775 A
- Gate to Source Voltage: ±20 V
- Maximum Power Dissipation: 138 W at 25°C
- Operating Junction Temperature Range: -55°C to +150°C
- Thermal Resistance, Junction to Case: 0.9°C/W
- Thermal Resistance, Junction to Ambient: 45°C/W
- Single Pulse Avalanche Energy: 486 mJ
- Package: Power 56 (JEDEC MO-240, Issue A, Vari. AA)
- RoHS Compliant, UL Listed
- Turn-On Delay Time: 24.39 ns
- Fall Time: 14 ns
- Gate Charge (Vgs=10V): 84 nc
- Output Capacitance: 2663 to 3730 pF
- Reverse Recovery Time: 44 to 71 ns
Buy the ON Semiconductor NTMFS10N3D2C – Reliable MOSFET for Industrial Applications
Purchase the ON Semiconductor NTMFS10N3D2C online today—engineered for demanding industrial applications with 100V, 151A ratings. This high-performance N-channel MOSFET offers low on-state resistance, high avalanche energy, and excellent thermal capabilities. Its robust Power 56 package ensures durability in power management, DC-DC conversions, and motor drives. Properly cooled and mounted, this device provides reliable operation under continuous current loads and switching conditions. Order now to secure this advanced, RoHS-compliant MOSFET for your industrial power electronics projects and ensure optimal system performance.
Get ON Semiconductor NTMFS10N3D2C today—built for high current switching, low Rds(on), and durable performance in industrial environments.
Frequently Asked Questions
Where can I buy ONSEMI NTMFS10N3D2C?
You can click on the BUY or RFQ button to purchase NTMFS10N3D2C from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NTMFS10N3D2C?
You can download the NTMFS10N3D2C datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NTMFS10N3D2C?
ONSEMI
