ONSEMI NCP3020BDR2G Synchronous PWM Controller
The NCP3020 is a high-frequency synchronous PWM controller designed for efficient power regulation. Operating from 4.7V to 28V, it supports output voltages as low as 0.6V. It integrates gate drivers, built-in soft-start times, and multiple protection features including overcurrent, short circuit, undervoltage, and overvoltage protections. The device's operation frequency is 300 kHz for the NCP3020A and 600 kHz for the NCP3020B, making it suitable for compact, efficient switching power supplies with precise voltage control in automotive and industrial applications.
ONSEMI NCP3020BDR2G Synchronous PWM Controller Specifications:
- Input Voltage Range: 4.7 V to 28 V
- Supported Output Voltage: As low as 0.6 V
- Oscillator Frequency: 300 kHz (NCP3020A), 600 kHz (NCP3020B)
- Internal Reference Voltage: 0.6 V
- Soft-Start Time: 4.4 ms (NCP3020B), 6.8 ms (NCP3020A)
- Protection Features: Overcurrent limit, short circuit, output overvoltage, output undervoltage, input undervoltage lockout
- Package: SOIC-8
- Operating Temperature Range: -40°C to +125°C
- Thermal Resistance (Junction-to-Air): 165°C/W
- Maximum Junction Temperature: +150°C
- Control Type: Voltage mode buck converter
- Switching Frequencies: 300 kHz (A version), 600 kHz (B version)
- Gate Driver: Integrated, with boost clamp and diode
- Current Limit Set: Programmable via external resistor

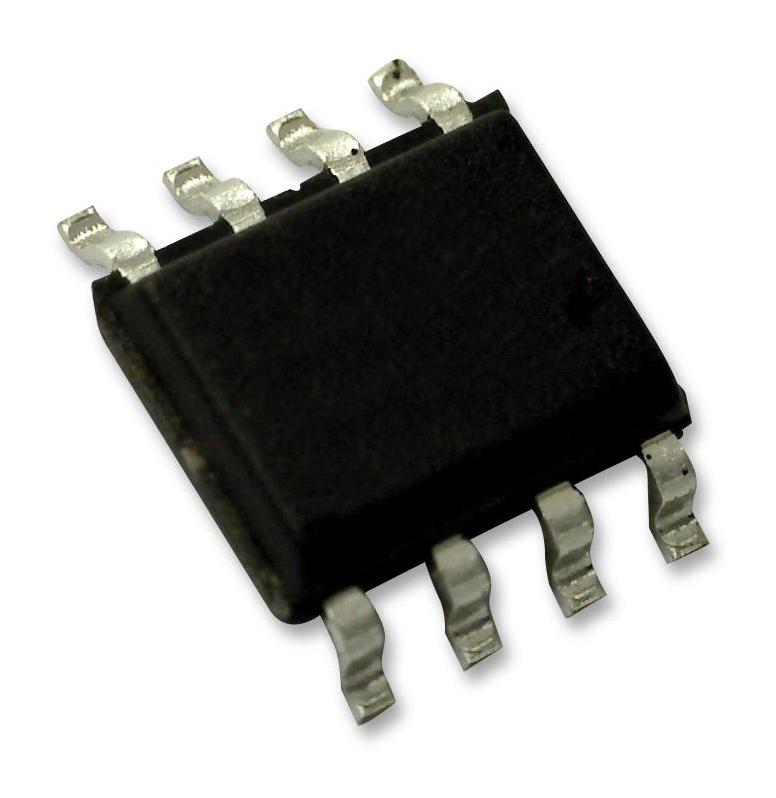

Buy the Buy ON Semiconductor NCP3020 Part Number NCP3020BDR2G Online
Discover the NCP3020 Synchronous PWM Controller for efficient power management. Operating from 4.7V to 28V with support for output voltages as low as 0.6V, it features integrated gate drivers and soft-start. Its high-frequency operation at 300 or 600 kHz ensures compact designs, while protection features safeguard your circuitry. Ideal for automotive, industrial, and communication power supplies, this device guarantees reliable and precise regulation, simplifying your design process—order online now and enhance your power solutions.
Buy ON Semiconductor NCP3020BDR2G now and experience unmatched reliability and performance in high-frequency synchronous power regulation.
Frequently Asked Questions
Where can I buy ONSEMI NCP3020BDR2G?
You can click on the BUY or RFQ button to purchase NCP3020BDR2G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCP3020BDR2G?
You can download the NCP3020BDR2G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCP3020BDR2G?
ONSEMI
