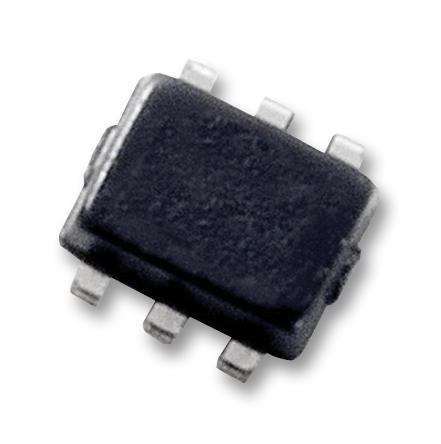

ONSEMI NUP5120X6T1G Transient Voltage Suppressor Array
The NUP5120X6 is a 5-line transient voltage suppressor array designed for robust protection of sensitive electronic equipment such as cell phones, portables, computers, and printers. Featuring a monolithic common anode design in a compact SOT-563 package, it offers high ESD protection exceeding 8 kV for human body model and 400 V for machine model, along with a peak power dissipation of 90 W. Ideal for applications requiring reliable transient suppression, this device ensures durability, compliance with IEC standards, and environmental safety as a Pb-free component, making it suitable for diverse industrial and consumer electronics.
ONSEMI NUP5120X6T1G Transient Voltage Suppressor Array Specifications:
- Peak Power Dissipation: 90 W with 8x20 μs double exponential waveform
- Operating Junction Temperature Range: -40°C to 125°C
- Storage Temperature Range: -55°C to 150°C
- Maximum Lead Solder Temperature: 260°C (10 seconds)
- ESD Rating: Human Body Model exceeding 8 kV, Machine Model above 400 V
- Reverse Working Voltage: 5.0 V
- Breakdown Voltage at 1 mA: 6.8 to 7.2 V
- Reverse Leakage Current at 3V: 0.01 μA
- Capacitance (Line to GND) at 0V, 1 MHz: 54 to 70 pF
- Clamp Voltage and Peak Current are specified per standard test conditions
- Package: SOT-563, 6-lead, case 463A-01
- Lead Solder Temperature: Max 260°C (10 sec)
- Certifications: RoHS compliant, Pb-Free
- Device Marking: RN (device code), M (month code), microdot may vary
- Dimensions: Millimeters, control dimension in accordance with ANSI Y14.5M (1982)
