ONSEMI NVBGS4D1N15MC N-Channel Power MOSFET
The NVBGS4D1N15MC is a high-performance N-channel MOSFET designed for power switching applications. It features a voltage rating of 150 V, a continuous drain current of 185 A, and a low Rds(on) of 4.1 mΩ at 10 V, ensuring minimal conduction losses. Its low gate charge and capacitance reduce driver losses and switching noise, making it ideal for power tools, UAVs, battery management, and home automation systems. The device is RoHS, halogen, and BFR free, and complies with AEC-Q101 standards for automotive reliability. Its compact D2PAK7 package facilitates surface mounting and efficient heat dissipation, while its robust ratings enable durable performance in demanding environments.
ONSEMI NVBGS4D1N15MC N-Channel Power MOSFET Specifications:
- Drain-to-Source Voltage: 150 V
- Continuous Drain Current: 185 A
- Power Dissipation: 316 W
- Max Pulsed Drain Current: 2564 A
- Gate-to-Source Voltage: +20 V (a also logic-compatible control)
- Rds(on): 4.1 mΩ at 10 V Vgs
- Gate Threshold Voltage: 25-45 V
- Total Gate Charge: 88.9 nc
- Output Capacitance: 2025 pF
- Input Capacitance: 7285 pF
- Case: D2PAK7 (TO-263)
- Operating Junction Temperature Range: -55°C to +175°C
- Maximum Power Dissipation: 316 W
- Lead soldering temperature: 260°C for 10s
- Junction-to-Case Thermal Resistance: 0.5°C/W
- Junction-to-Ambient Resistance: 40°C/W
- Switching delay times: 49 ns (turn-on), 64 ns (turn-off)
- Body diode forward voltage: 0.88 V at 104 A

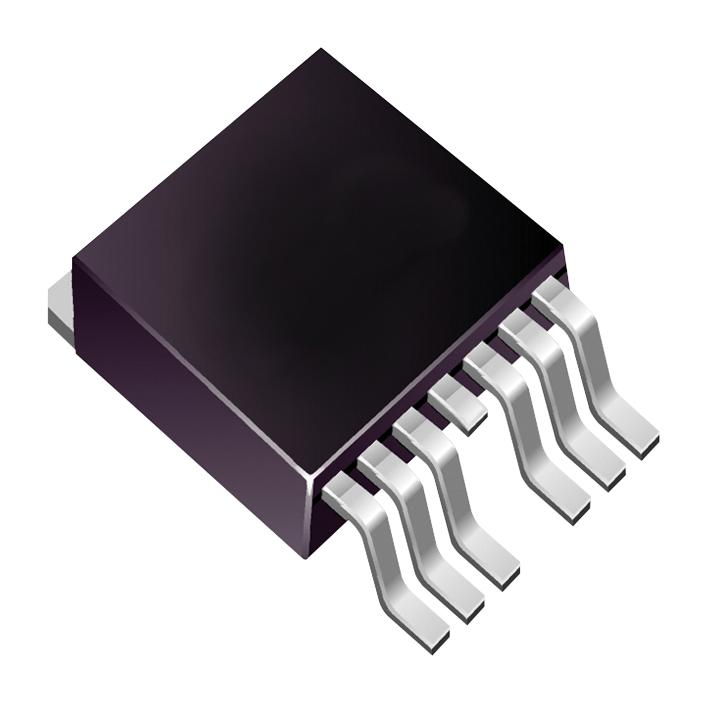

Buy the ON Semiconductor Series NVBGS4D1N15MC N-Channel MOSFET: NVBGS4D1N15MC
Purchase the ON Semiconductor NVBGS4D1N15MC N-channel MOSFET online today for versatile power switching in various electronics applications. Featuring a 150 V drain-to-source voltage, 185 A continuous drain current, and low Rds(on), this device delivers outstanding efficiency and reliability. Its compact D2PAK7 package simplifies surface mounting, while its low gate charge minimizes driver losses. Certified for automotive standards and RoHS compliant, it is perfect for power tools, UAVs, battery management systems, and home automation. Buy now to enhance your project's durability and performance with trusted semiconductor technology.
Order your ON Semiconductor NVBGS4D1N15MC power MOSFET today and ensure reliable, high-current switching for your demanding electronic projects.
Frequently Asked Questions
Where can I buy ONSEMI NVBGS4D1N15MC?
You can click on the BUY or RFQ button to purchase NVBGS4D1N15MC from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NVBGS4D1N15MC?
You can download the NVBGS4D1N15MC datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NVBGS4D1N15MC?
ONSEMI
