ONSEMI NZT7053 High Voltage Power Transistor
The NZT7053 is an NPN Darlington transistor designed for applications that require extremely high current gain at collector currents up to 1A and high breakdown voltage. It operates within a junction temperature range of -55°C to 150°C. Suitable for power management and industrial applications.
ONSEMI NZT7053 High Voltage Power Transistor Specifications:
- Collector-Emitter Voltage: 100 V
- Collector-Base Voltage: 100 V
- Emitter-Base Voltage: 12 V
- Collector Current - Continuous: 15 A
- Operating and Storage Junction Temperature Range: -55 to +150 °C
- Total Device Dissipation: 625 mW (2N7052), 1,000 mW (2N7053, NZT7053)
- Thermal Resistance, Junction to Case: 83.3 °C/W (2N7052), 125 °C/W (2N7053, NZT7053)
- Thermal Resistance, Junction to Ambient: 200 °C/W (2N7052), 50 °C/W (2N7053, NZT7053)
- Collector-Emitter Breakdown Voltage: 100 V
- Base-Emitter On Voltage: 2.0 V at Ic=100 mA
- Transition Frequency: 200 MHz
- Junction Temperature Limit: 150 °C

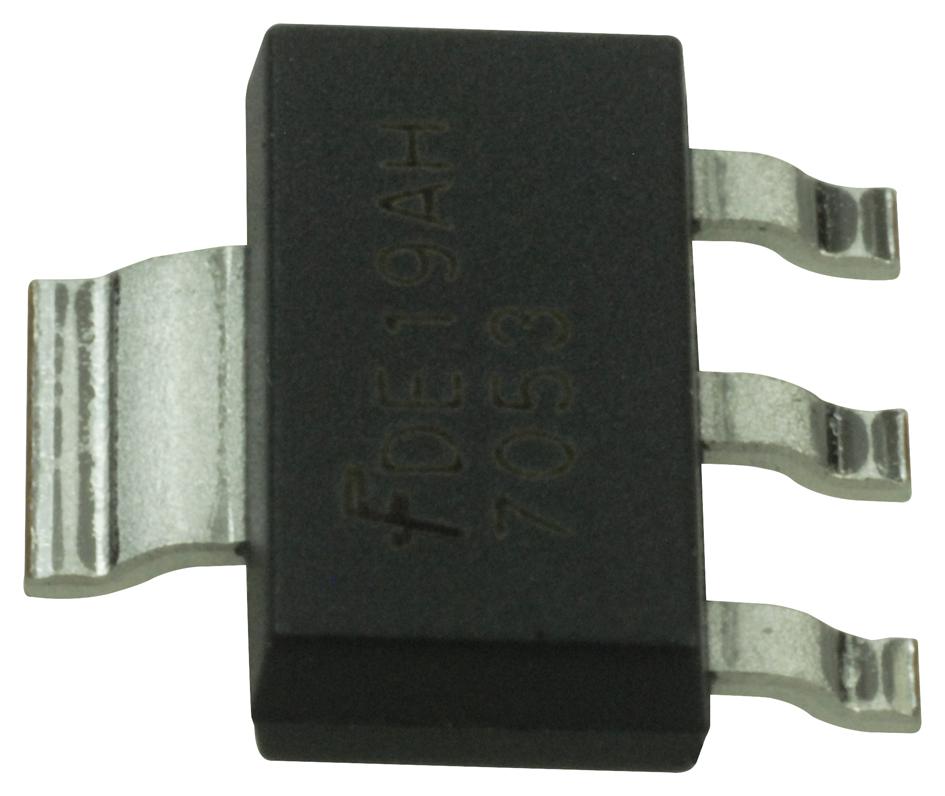

Buy the Buy ON Semiconductor NZT7053 Part Number Online
Purchase the ON Semiconductor NZT7053 high voltage power transistor online now to take advantage of its high current gain and robust breakdown voltage for industrial and power management systems. This Darlington device supports collector currents up to 1A and operates over a wide junction temperature range of -55°C to 150°C, offering excellent thermal and electrical characteristics for demanding applications. Reliable, easy to order, and perfect for your next power electronics project.
Order your ON Semiconductor NZT7053 Darlington transistor today and ensure high current gain with reliable power management performance.
Frequently Asked Questions
Where can I buy ONSEMI NZT7053?
You can click on the BUY or RFQ button to purchase NZT7053 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NZT7053?
You can download the NZT7053 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NZT7053?
ONSEMI
