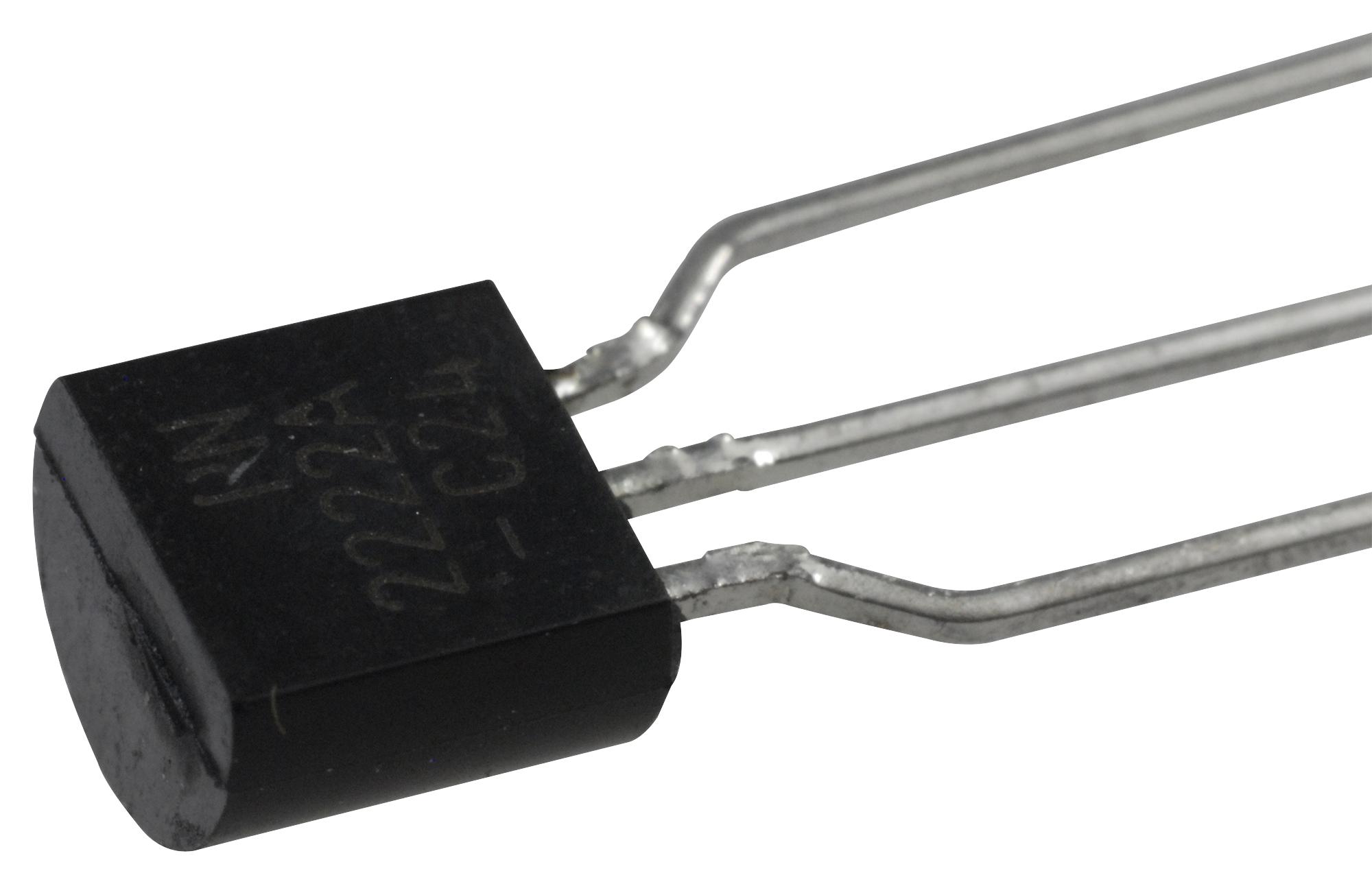

ONSEMI PN2222ATF NPN Bipolar Transistor
The PN2222ATF is a 40V NPN Bipolar Junction Transistor (BJT) designed for medium-power amplification and switching applications. It can handle collector currents up to 500mA and is suitable for various general-purpose applications. Key specifications include a collector-to-base voltage of 75V, emitter-to-base voltage of 6V, junction-to-case thermal resistance of 83.3°C/W, junction-to-ambient thermal resistance of 200°C/W, and a fall time of 60ns at 25°C. This transistor is commonly used in power management circuits. Please note that delivery times may be extended due to high market demand, and the product is exempt from discounts.
ONSEMI PN2222ATF NPN Bipolar Transistor Specifications:
- Collector-Emitter Voltage: 40 V
- Collector-Base Voltage: 75 V
- Emitter-Base Voltage: 6 V
- Collector Current: 500 mA
- Junction Temperature Range: -55 to 150 °C
- Total Device Dissipation: 625 mW
- Thermal Resistance, Junction to Case: 83.3 °C/W
- Thermal Resistance, Junction to Ambient: 200 °C/W
- Fall Time: 60 ns at 25°C
