ONSEMI ESD9R33ST5G ESD Protection Diode
The ESD9R3.3S is an ultra-low leakage ESD protection diode with a stand-off voltage of 3.3V, designed for human body sensors and high-speed data lines. It features a small SOD-923 package measuring 0.039 x 0.024 inches, with a low profile height of just 0.016 inches. The device offers exceptional protection with a clamping voltage of 48V at a peak pulse current of 10A, and leakage current less than 1 nA at 25°C. It is IEC61000-4-2 Level 4 compliant, Q101 automotive qualified, Pb-free, halogen-free, and suitable for space-constrained space applications.
ONSEMI ESD9R33ST5G ESD Protection Diode Specifications:
- Stand-off Voltage: 3.3 V
- Leakage Current: < 1 nA at 25°C
- Capacitance: 0.5 pF
- Clamping Voltage: 48V at 10A peak pulse current
- Package Dimensions: 0.039” x 0.024” (1.00 mm x 0.60 mm)
- Body Height: 0.016” (0.4 mm)
- Maximum Power Dissipation: 150 mW
- Temperature Range: -55°C to +125°C
- Reflow Max Temperature: 260°C
- Qualification: IEC61000-4-2 Level 4, AEC-Q101 compliant
- Lead Finish: 100% Matte Sn (Tin)
- Mounting: Any position
- Mechanical: Transfer-molded plastic, UL 94V-0
- Package: SOD-923 (CASE 514AB)

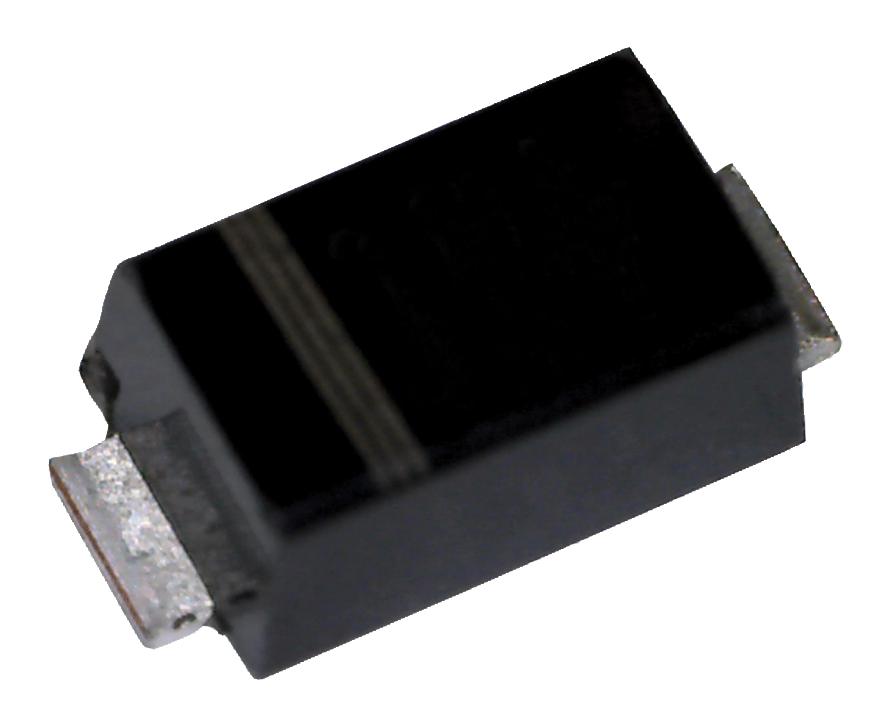

Buy the Buy ON Semiconductor ESD9R3.3S Part Number ESD9R3.3S Online
Experience reliable and high-speed electrostatic discharge protection with the ON Semiconductor ESD9R3.3S diode. Its ultra-low leakage current, small SOD-923 package, and high IEC61000-4-2 compliance make it ideal for human body sensors, high-speed data interfaces, and automotive applications. Designed to clamp ESD events to safe voltage levels with a stand-off voltage of 3.3V, this Pb-free, halogen-free device ensures space efficiency, durability, and excellent electrical performance in space-limited environments. Enhance your circuit's resilience with this compact, high-quality protector.
Buy ON Semiconductor ESD9R3.3S now and enjoy compact, high-speed ESD protection suitable for sensitive circuits and space-constrained designs.
Frequently Asked Questions
Where can I buy ONSEMI ESD9R33ST5G?
You can click on the BUY or RFQ button to purchase ESD9R33ST5G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part ESD9R33ST5G?
You can download the ESD9R33ST5G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of ESD9R33ST5G?
ONSEMI
