ONSEMI RB751S40T1G Schottky Diode
The RB751S40T1G is a high-speed Schottky barrier diode in SOD-523 package for circuit protection, voltage clamping, and switching applications. It features extremely low forward voltage of 0.28 V at 1.0 mA, low reverse leakage current, and a maximum reverse voltage of 30 V. With a maximum continuous forward current of 30 mA and peak surge current of 500 mA, this diode is ideal for compact, high-efficiency electronic circuits. Certified RoHS, halogen-free, and AEC-Q101 qualified for automotive use, it ensures reliability in demanding environments.
ONSEMI RB751S40T1G Schottky Diode Specifications:
- Peak Reverse Voltage: 40 V
- Reverse Voltage: 30 V
- Forward Continuous Current: 30 mA
- Peak Forward Surge Current: 500 mA
- Total Capacitance: 2.0 to 25 pF
- Reverse Leakage Current: 300 to 500 nA at 30 V
- Forward Voltage: 0.28 to 0.37 V at 1.0 mA
- Thermal Resistance, Junction-to-Ambient: 635 °C/W
- Total Device Dissipation: 200 mW at 25°C
- Temperature Range: -55°C to +150°C
- Material: Pb-Free, Halogen Free, BFR Free, RoHS compliant
- Package Dimensions: SOD-523, approx. 1.80 mm pin pitch
- Maximum Lead Thickness: Includes lead finish
- Certifications: RoHS, AEC-Q101

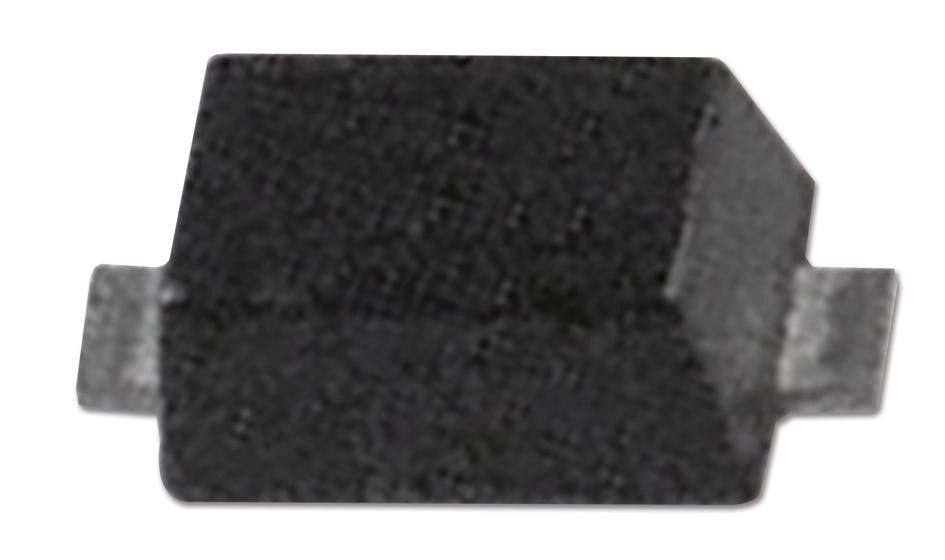

Buy the Buy ON Semiconductor RB751S40T1G Schottky Barrier Diode Part Number RB751S40T1G Online
Purchase the high-speed Schottky diode in SOD-523 package, ideal for compact electronic devices requiring efficient switching and protection. The RB751S40T1G features low forward voltage of 0.28 V, maximum reverse voltage of 30 V, and a continuous forward current of 30 mA. Its RoHS compliance, halogen-free construction, and AEC-Q101 qualification ensure safe use in automotive and industrial applications. With a small form factor and excellent thermal performance, this diode guarantees durability and high efficiency in demanding electronic circuits. Buy online now for fast delivery and standard warranty.
Order your ON Semiconductor RB751S40T1G Schottky Barrier Diode today and ensure fast switching and reliable circuit protection with this high-performance component.
Frequently Asked Questions
Where can I buy ONSEMI RB751S40T1G?
You can click on the BUY or RFQ button to purchase RB751S40T1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part RB751S40T1G?
You can download the RB751S40T1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of RB751S40T1G?
ONSEMI
