ONSEMI RHRP15120 High-Speed Power Diode
The RHRP15120 is a hyperfast diode designed for switching power supplies and power switching applications. It features soft recovery characteristics, a half recovery time of 75 ns at 15 A, and can withstand up to 1200 V reverse voltage. Its silicon nitride passivated, ion-implanted epitaxial planar construction minimizes electrical noise and ringing, reducing power loss. Suitable for freewheeling or clamping purposes, it is RoHS compliant, reliable, and ideal for general power switching circuits requiring high efficiency and fast recovery times.
ONSEMI RHRP15120 High-Speed Power Diode Specifications:
- Peak Repetitive Reverse Voltage: 1200 V
- Working Peak Reverse Voltage: 1200 V
- DC Blocking Voltage: 1200 V
- Average Rectified Forward Current: 15 A
- Repetitive Peak Surge Current: 200 A
- Maximum Power Dissipation: 200 W
- Peak Recovery Time: 75 ns
- Maximum Forward Voltage: 3.2 V at 15 A, 25°C
- Repetitive peak surge current (square wave, 20 kHz): 200 A
- Operating and Storage Temperature: -65°C to 175°C
- Package: TO-220AC-2L
- RoHS Compliant

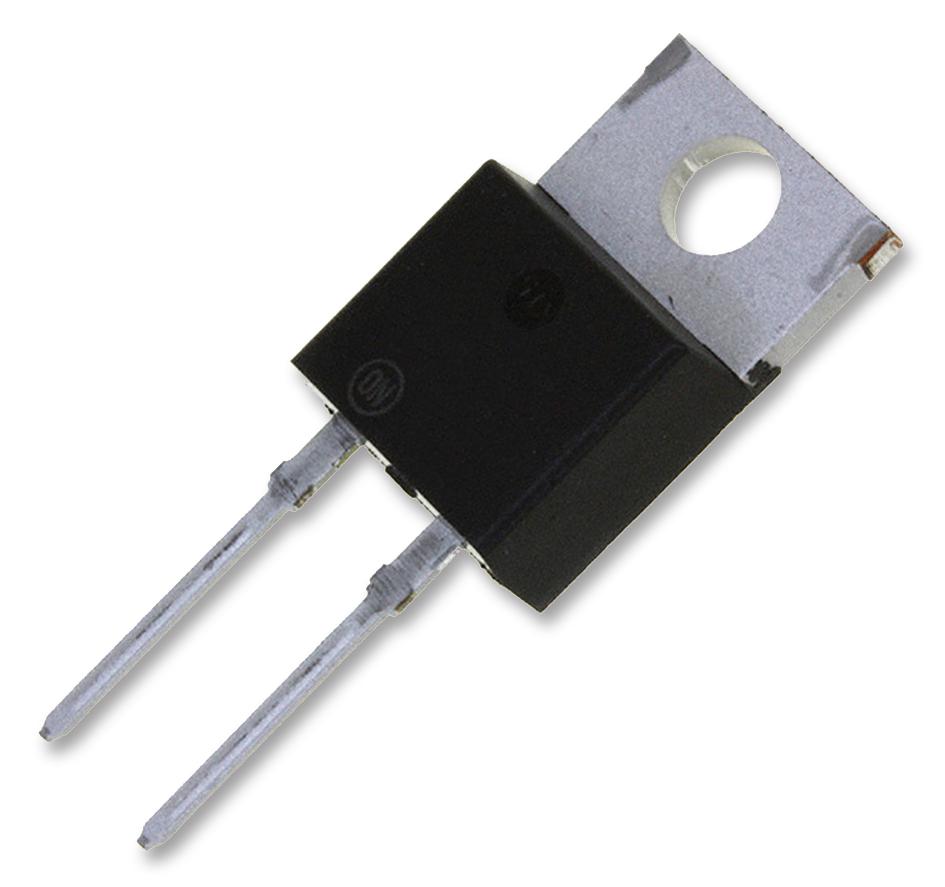

Buy the Fairchild Series RHRP Hyperfast Diode: RHRP15120
Purchase the high-speed power diode suitable for switching power supplies, offering 1200V reverse voltage, 15A current capacity, and soft recovery features. Its fast recovery time of 75 ns reduces electrical noise and switching losses, improving overall system efficiency. This diode features silicon nitride passivation and reliable ion-implanted epitaxial construction, ensuring durability and optimal performance in demanding power switching environments. RoHS compliant, it is ideal for industrial applications requiring fast switching, low power loss, and high reliability.
Buy Fairchild RHRP15120 now and experience unmatched reliability and performance in high-speed power switching applications.
Frequently Asked Questions
Where can I buy ONSEMI RHRP15120?
You can click on the BUY or RFQ button to purchase RHRP15120 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part RHRP15120?
You can download the RHRP15120 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of RHRP15120?
ONSEMI
