ONSEMI NC7WP08K8X Dual Logic Gate
The NC7WP08 is a dual 2-input AND gate in tiny footprint packages designed for low voltage operation from 0.9 V to 3.6 V. It features high speed with a typical propagation delay of 2.2 ns at 3.3 V and supports over-voltage tolerant inputs and outputs up to 3.6 V. The device supports partial power-down and has source/sink current of 2.6 mA at 3.3 V. Available in US8 and MicroPak™ packages, it's suitable for compact, high-speed logic applications in digital circuits and electronic systems.
ONSEMI NC7WP08K8X Dual Logic Gate Specifications:
- Supply Voltage Range: 0.9 V to 3.6 V
- Propagation Delay: 2.2 ns at 3.3 V
- Input Voltage Range: 0 V to 3.6 V
- Output Voltage Range: 0 V to Vcc
- Input/Output Over-Voltage Tolerance: Up to 3.6 V
- Source/Sink Current: 2.6 mA at 3.3 V
- Operating Temperature: -40°C to +85°C
- Package Types: US8, MicroPak™ (UQFN8 case)
- Power Dissipation: 500 mW (MicroPak)
- ESD Withstand Voltage: 2000 V Human Body Model
- Storage Temperature: -65°C to +150°C
- Lead Temperature: 260°C for 10 seconds
- Junction Temperature: Up to +150°C
- Moisture Sensitivity Level: 1

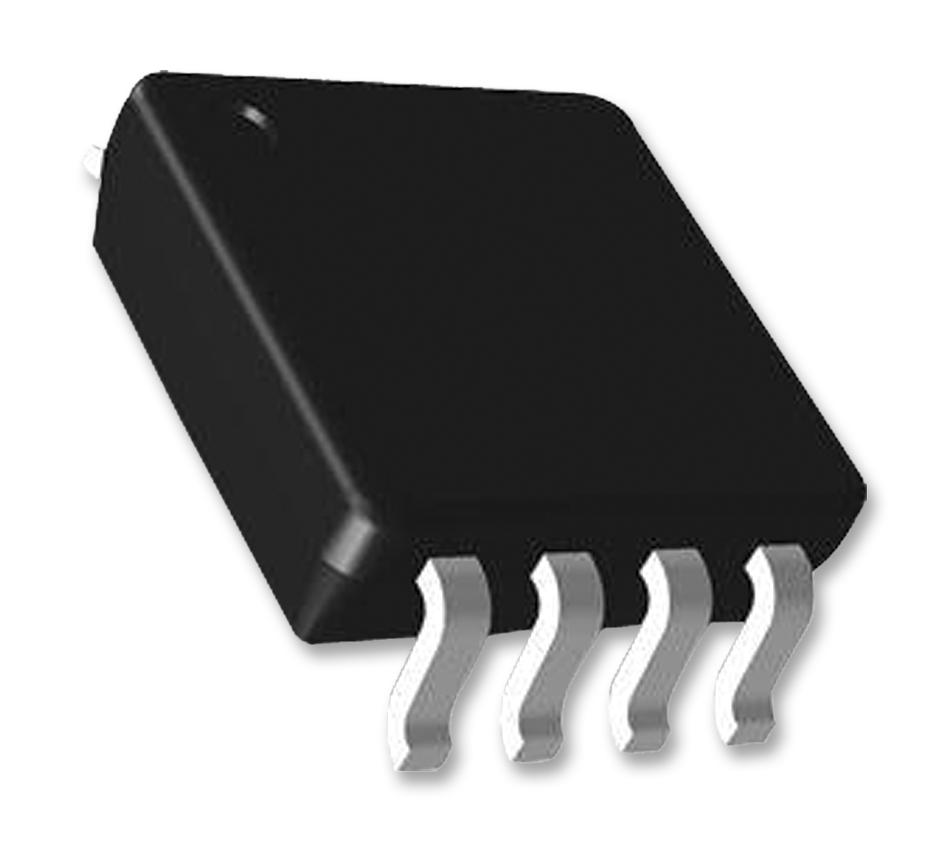

Buy the Buy ON SEMI NC7WP08 Dual 2-Input AND Gate Part Number NC7WP08K8X Online
Purchase the ON SEMI NC7WP08 dual 2-input AND gate online today to enhance your digital systems with high-speed, low-voltage operation. This compact, reliable device offers over-voltage tolerant inputs/outputs, supporting efficient logic operations in tight spaces. Its fast propagation delay of just 2.2 ns at 3.3 V makes it ideal for high-speed applications requiring quick signal processing. The device's robust features include partial power-down support, and it is available in space-saving MicroPak™ and US8 packages, perfect for modern electronic designs and industrial automation projects.
Order your ON SEMI Series NC7WP08 micro logic gate today and ensure rapid, reliable digital signal processing in your electronic circuits.
Frequently Asked Questions
Where can I buy ONSEMI NC7WP08K8X?
You can click on the BUY or RFQ button to purchase NC7WP08K8X from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NC7WP08K8X?
You can download the NC7WP08K8X datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NC7WP08K8X?
ONSEMI
