ONSEMI S210 Schottky Rectifier
The SS22-S210 series includes high-efficiency, low power loss Schottky rectifiers suited for free wheeling, secondary rectification, and reverse polarity protection. Featuring glass-passivated junctions and a clip-bonded leg structure, these rectifiers offer high thermal performance and low electrical resistance, making them ideal for low voltage, high-frequency inverters, and polarity protection applications. They support repeated reverse voltages up to 100V, operate with a forward current of 2.0A, and have a power dissipation of 13W. Their compact DO-214AA package enhances thermal management and durability.
ONSEMI S210 Schottky Rectifier Specifications:
- Maximum Repetitive Reverse Voltage: 20 to 100 V
- Maximum Average Forward Current: 2.0 A
- Non-Repetitive Peak Forward Surge Current: 50 A
- Storage Temperature Range: -65 to +150 °C
- Operating Junction Temperature: -65 to +125 °C
- Power Dissipation: 13 W
- Thermal Resistance, Junction to Ambient: 75 °C/W
- Forward Voltage (If = 2.0A): 500 to 850 mV
- Reverse Current at 25°C: 0.4 mA, at 100°C: 10 mA
- Package: DO-214AA (SMB)

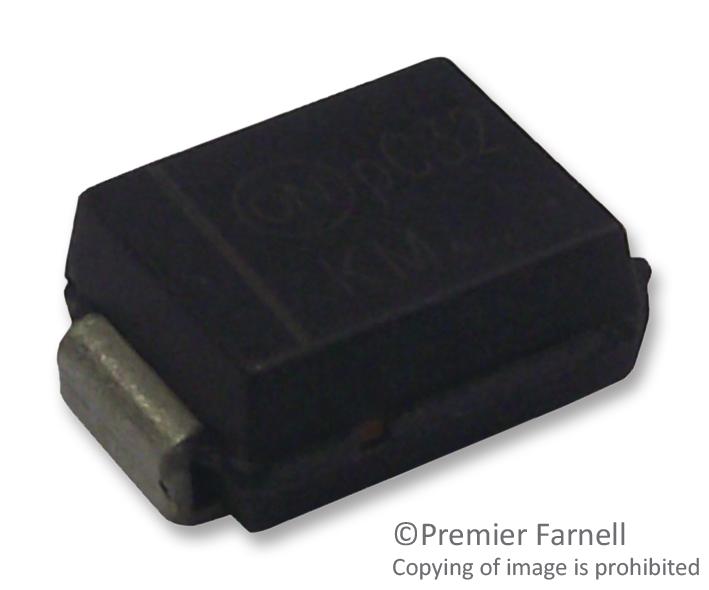

Buy the Fairchild Series S210 Schottky Rectifier: S210
Order the Fairchild S210 Schottky Rectifier online today. Designed for high efficiency, low power loss, and excellent thermal performance, this rectifier supports 2A current and up to 100V reverse voltage. Ideal for free-wheeling, secondary rectification, and polarity protection, it features a compact DO-214AA package for easy installation. Trust the durability and reliability of Fairchild’s high-quality power components for your electronic projects and industrial applications. Purchase now for quick delivery and guaranteed performance.
Get Fairchild S210 today—built for high efficiency and reliable performance in low voltage, high-frequency rectification applications.
Frequently Asked Questions
Where can I buy ONSEMI S210?
You can click on the BUY or RFQ button to purchase S210 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part S210?
You can download the S210 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of S210?
ONSEMI
