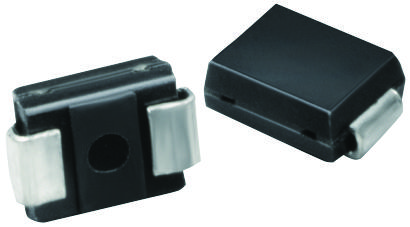

ONSEMI S2B general-purpose rectifier
The S2 family of standard-purpose rectifiers provide reliable 2 A current capacity, with voltage ratings from 50 V to 1000 V. Packaged in SMB packages, these glass passivated junction rectifiers are ideal for AC to DC rectification, bypass diodes, and general purpose applications. Features include a fast response time of 2 microseconds, low forward voltage drop of 1.15 V at 2 A, and high surge current capability of 50 A. UL and RoHS compliant, they ensure safe and eco-friendly operation suitable for various industrial applications.
ONSEMI S2B general-purpose rectifier Specifications:
- Voltage Ratings: 50 V to 1000 V
- Average Rectified Forward Current: 2 A
- Maximum Repetitive Reverse Voltage: 50 V (S2A) to 1000 V (S2M)
- Forward Voltage: 1.15 V at 2 A
- Surge Current: 50 A for 8.3 ms
- Storage Temperature Range: -65°C to +150°C
- Junction Temperature Range: -65°C to +150°C
- Power Dissipation: 2.35 W
- Thermal Resistance, Junction to Ambient: 53 °C/W
- Thermal Characteristics rated at 25°C ambient
- UL Certified, RoHS Compliant, Package: SMB (DO-214AA)
- Dimensions conform to JEDEC DO-214AA standards
Buy the ON Semiconductor S2B – Reliable Rectifiers for Industrial Applications
Purchase the ON Semiconductor S2B series rectifier online today and experience dependable performance in power rectification. With a 2 A current rating, voltage ratings up to 1000 V, fast response time, and high surge capabilities, these rectifiers are suitable for a wide range of industrial applications. Their glass passivated junction ensures reliability and longevity, while UL and RoHS compliance makes them safe and environmentally friendly. Enjoy seamless ordering and swift delivery to enhance your production and power management systems.
Order your ON Semiconductor Series S2B high-current rectifiers today and ensure robust performance for your industrial power systems.
Frequently Asked Questions
Where can I buy ONSEMI S2B?
You can click on the BUY or RFQ button to purchase S2B from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part S2B?
You can download the S2B datasheet or visit the ONSEMI website for support.
Who is the manufacturer of S2B?
ONSEMI
