ONSEMI SS13HE Schottky Barrier Rectifier
The SS13HE is a surface mount Schottky barrier rectifier diode designed for low forward voltage drop, high efficiency, and compact applications. With a maximum repetitive peak reverse voltage of 30V and a forward current of 1A, it is suitable for various power rectification tasks. It features a very low profile with a typical height of 0.68 mm, moisture sensitivity level 1, and is RoHS compliant. The device is qualified for industrial standards, making it ideal for space-constrained electronic power circuits and efficient switching power supplies.
ONSEMI SS13HE Schottky Barrier Rectifier Specifications:
- Repetitive Peak Reverse Voltage: 30V for SS13HE, 40V for SS14HE, 60V for SS16HE
- Maximum Average Forward Rectified Current: 1A
- Peak Forward Surge Current: 25A (8.3 ms single half sine wave)
- Operating Junction Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Thermal Resistance (Junction to Ambient): 199°C/W
- Package Type: SOD-323HE (Surface Mount)
- Moisture Sensitivity Level: 1
- UL Flammability Class: 94-0
- RoHS Compliant, Green Mold Compound
- Mechanical Dimensions: Length approximately 2.3 mm, width approximately 1.75 mm, height 0.68 mm

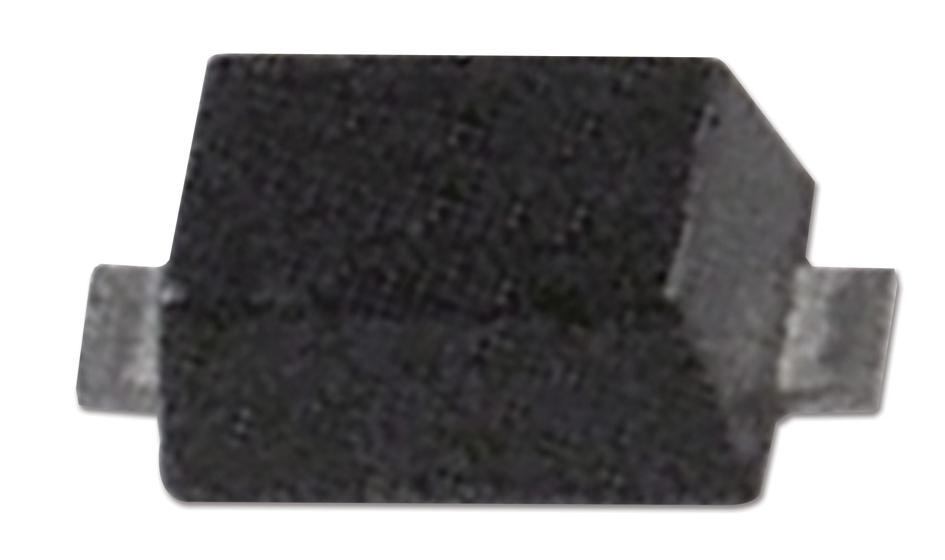

Buy the Fairchild SS13HE – Reliable Schottky Barrier Rectifier for Industrial Applications
Purchase the Fairchild SS13HE Schottky barrier rectifier diode online today. This compact surface mount device offers a maximum of 30V reverse voltage and 1A forward current, ideal for space-constrained industrial power circuits. Its low profile height of 0.68 mm, high efficiency, and RoHS compliance make it perfect for modern electronic applications. Easy to integrate into your design, the SS13HE ensures reliable operation, minimal power loss, and superior performance in switching power supplies and rectification modules. Get yours now for dependable project results.
Order your Fairchild SS13HE surface mount Schottky diode today and ensure high efficiency and space-saving power rectification for your industrial designs.
Frequently Asked Questions
Where can I buy ONSEMI SS13HE?
You can click on the BUY or RFQ button to purchase SS13HE from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part SS13HE?
You can download the SS13HE datasheet or visit the ONSEMI website for support.
Who is the manufacturer of SS13HE?
ONSEMI
