ONSEMI SS15FA Schottky Barrier Rectifier
The SS15FA is a surface-mount Schottky barrier rectifier designed for low power loss and high efficiency in electronic circuits. It features a guard ring for overvoltage protection, high surge current capability, and is UL 94V-0 flammability rated. The device complies with RoHS standards and is qualified per AEC-Q101 for industrial applications. Its compact SOD-123FA package ensures reliable operation at a maximum repetitive peak reverse voltage of 50 V, making it suitable for power rectification and voltage clamping in various electronic systems.
ONSEMI SS15FA Schottky Barrier Rectifier Specifications:
- Repetitive Peak Reverse Voltage: 50 V
- RMS Reverse Voltage: 35 V
- DC Blocking Voltage: 50 V
- Average Forward Rectified Current: 1 A
- Peak Forward Surge Current: 30 A
- Operating Junction Temperature Range: -55°C to +150°C
- Thermal Resistance, Junction-to-Ambient: 152 °C/W
- Thermal Characteristics, Junction-to-Lead: 16 °C/W
- Maximum Instantaneous Forward Voltage at 1.0A: 0.70 V
- Maximum Reverse Current at Rated Vp (25°C): 6.0 mA
- At 100°C: 6.0 mA
- Maximum Junction Capacitance: 54 pF
- Peak Reverse Recovery Time: 5.6 ns
- Package: SOD-123FA
- Flammability Rating: UL 94V-0
- RoHS Compliant, Green Molding Compound
- Industrial Device Qualification: AEC-Q101
- Surge Current Capability: 30 A
- Device operates reliably at high surge currents and voltage transients.

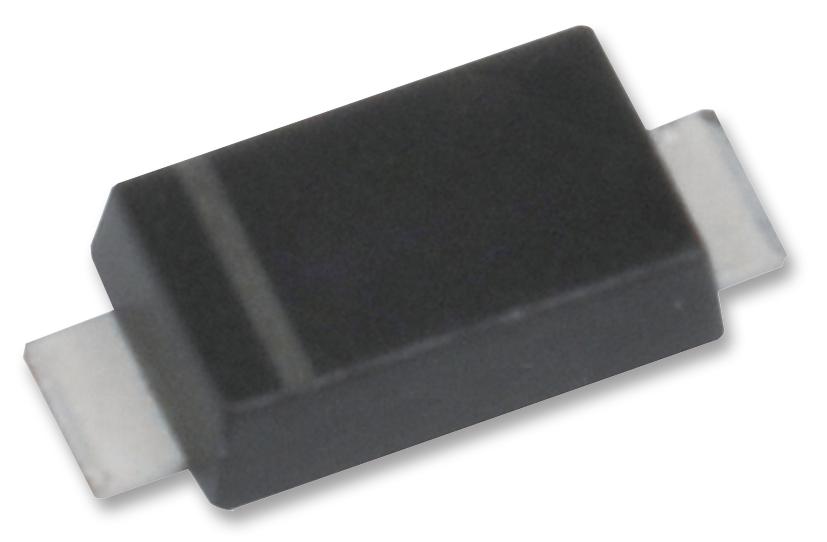

Buy the Buy ON Semiconductor SS15FA Part Number 15L Online
Enhance your electronic projects with the high-quality ON Semiconductor SS15FA Schottky barrier rectifier. This compact SOD-123FA package offers 50 V peak repetitive reverse voltage and 1 A average forward rectified current, ensuring low power loss and high efficiency. Designed for overvoltage protection, it withstands surge currents up to 30 A and features RoHS compliance and UL 94V-0 flammability rating. Perfect for power supplies, voltage clamping, and rectification, this device guarantees reliable performance and optimal thermal management in demanding applications. Buy online today for dependable circuit protection and efficiency.
Order your ON Semiconductor SS15FA Series15L rectifier today and ensure high-efficiency power management in your electronic designs.
Frequently Asked Questions
Where can I buy ONSEMI SS15FA?
You can click on the BUY or RFQ button to purchase SS15FA from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part SS15FA?
You can download the SS15FA datasheet or visit the ONSEMI website for support.
Who is the manufacturer of SS15FA?
ONSEMI
