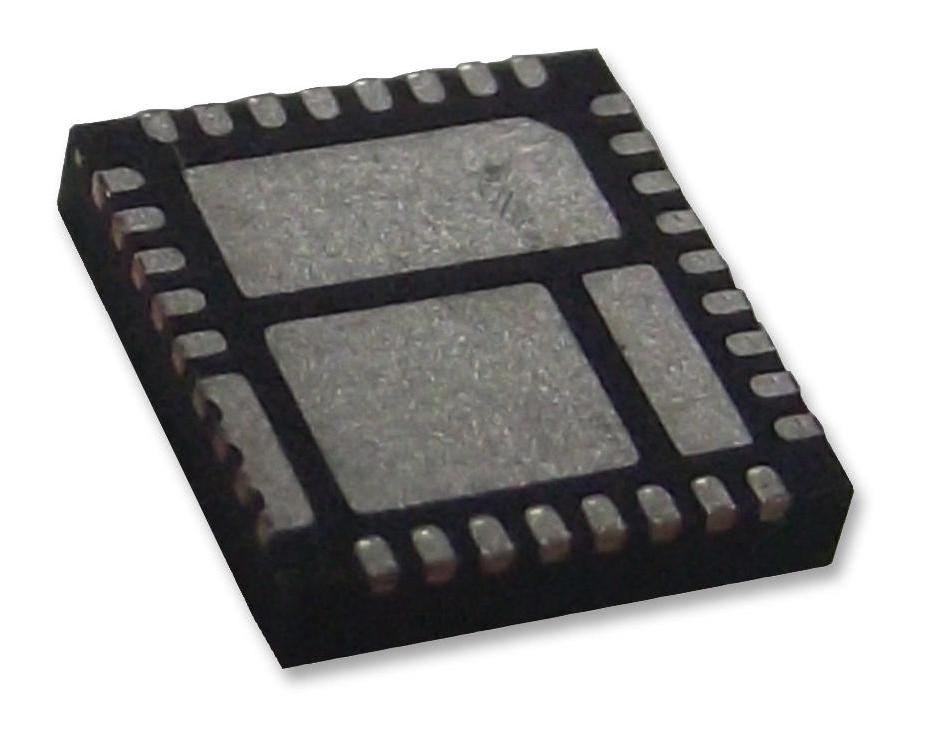

ONSEMI FAN23SV06PAMPX Synchronous Buck Regulator
The FAN23SV06PAMPX is a highly efficient 6 A synchronous buck regulator designed for applications requiring high efficiency and fast transient response. Capable of operating over a wide input voltage range from 7 V to 18 V, it supports both PFM and forced PWM modes for light and heavy loads. Features include programmable switching frequency from 200 kHz to 1.5 MHz, excellent line and load transient response, and integrated protections such as over-current, over-voltage, under-voltage, and thermal shutdown. Ideal for powering servers, gaming consoles, telecommunications equipment, and storage devices, ensuring robust performance in demanding environments.
ONSEMI FAN23SV06PAMPX Synchronous Buck Regulator Specifications:
- Vin Range: 7 V to 18 V, supporting 6 A load current
- Operating temperature: -40°C to +125°C
- Switching frequency: Programmable from 200 kHz to 1.5 MHz
- Output voltage: 0.6 to 5.5 V with ±1% accuracy
- Internal linear regulator supports 5 V rail operation
- Supports PFM and forced PWM modes for light and heavy load efficiency
- Protection features: over-current, over-voltage, under-voltage, thermal shutdown
- Efficiency: Over 96% peak at full load
- Enable pin facilitates UVLO function; soft-start controlled ramp
- Integrated bootstrap diode and adjustable current limit
- Compact 34-pin, 5.5 mm x 5.0 mm package
Buy the Fairchild Series Synchronous Buck Regulator: FAN23SV06PAMPX
Purchase the Fairchild FAN23SV06PAMPX online today and ensure your designs benefit from high efficiency, wide input voltage operation, and comprehensive protection features. This versatile 6 A synchronous buck regulator offers programmability of switching frequency from 200 kHz to 1.5 MHz, enabling precise power management in applications like servers, gaming consoles, telecommunications, and storage devices. Its excellent transient response, low dropout, and integrated protections make it an ideal choice for robust, high-performance power solutions. Immediate online purchase guarantees quick delivery and technical support for your project success.
Buy Fairchild FAN23SV06PAMPX now and experience unmatched reliability and high efficiency for demanding power management needs.
