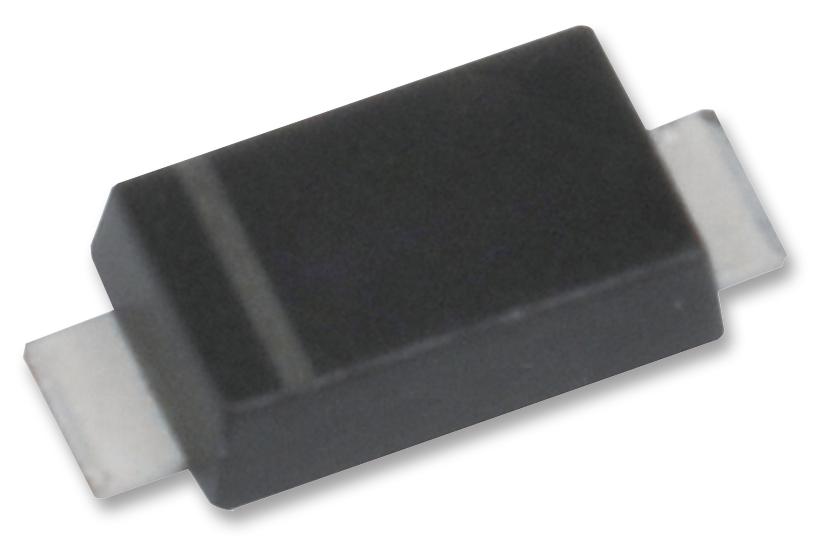

ONSEMI SS34FA Surface Mount Schottky Rectifier
This surface mount Schottky barrier rectifier offers low power loss, high efficiency, and high surge current capability with a compact SOD-123FA package. It features a guard ring for overvoltage protection, UL 94V-0 flammability classification, and RoHS compliance for green manufacturing. Certified to AEC-Q101 standards, the device handles 3 A current with voltage ratings of 40 V, 60 V, and 100 V. Suitable for automotive and industrial applications, it provides reliable, overvoltage protection and efficient rectification within compact electronic systems.
ONSEMI SS34FA Surface Mount Schottky Rectifier Specifications:
- Package: SOD-123FA
- Part Numbers: SS34FA, SS36FA, S310FA
- Peak Reverse Voltage: 40 V (SS34FA), 60 V (SS36FA), 100 V (S310FA)
- Average Forward Rectified Current: 3 A
- Peak Forward Surge Current: 80 A (8.3 ms)
- Operating Junction Temperature Range: -55°C to +125°C (SS34FA), -55°C to +150°C (SS36FA, S310FA)
- Storage Temperature Range: -55°C to +150°C
- Thermal Resistance, Junction-to-Ambient: 152 °C/W
- Thermal Resistance, Junction-to-Lead: 16 °C/W
- Maximum Instantaneous Forward Voltage: 0.50 V (SS34FA), 0.75 V (SS36FA), 0.85 V (S310FA)
- Typical Reverse Current: 5 μA at 25°C, 60 mA at 125°C
- Typical Junction Capacitance: 152 pF (SS34FA), 117 pF (SS36FA), 78 pF (S310FA)
Buy the Fairchild Series Rectifiers: SS34FA - S310FA
Purchase the Fairchild SS34FA surface mount Schottky rectifier online today for high surge capacity, low forward voltage, and reliable overvoltage protection. Ideal for automotive, industrial, and power supply applications, this component guarantees high efficiency and durable operation. With a compact SOD-123FA package and RoHS compliance, it simplifies design integration. Order now to ensure a steady supply of this vital rectification device, enhancing your circuit's performance and reliability with fast delivery and quality assurance.
Get Fairchild SS34FA rectifier today—designed for high efficiency and robustness in automotive and industrial circuits.
Frequently Asked Questions
Where can I buy ONSEMI SS34FA?
You can click on the BUY or RFQ button to purchase SS34FA from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part SS34FA?
You can download the SS34FA datasheet or visit the ONSEMI website for support.
Who is the manufacturer of SS34FA?
ONSEMI
