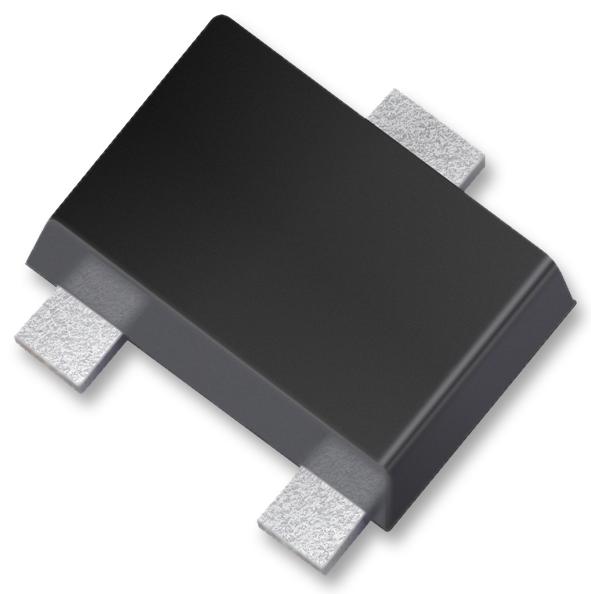

ONSEMI SZESD7205DT5G ESD Protection Diode for High-Speed Data Lines
The ESD7205 transient voltage suppressor protects high-speed data lines from electrostatic discharge, featuring ultra-low capacitance of 0.4 pF and low ESD clamping voltage of 12 V. It is ideal for safeguarding sensitive signals in automotive Ethernet, LVDS, and USB 2.0 applications. The device is AEC-Q101 qualified, Pb-Free, RoHS compliant, and designed for compact PCB layout with flow-through packages, ensuring reliable ESD protection for differential pairs and high-speed data systems.
ONSEMI SZESD7205DT5G ESD Protection Diode for High-Speed Data Lines Specifications:
- Low Capacitance: 0.4 pF Typical, I/O to GND
- Protection for IEC 61000-4-2 Level 4 (ESD)
- Low ESD Clamping Voltage: 12 V Typical, +16 A TLP
- Maximum Reverse Peak Pulse Current: 8 A / 16 A
- Reverse Working Voltage: 5.0 V
- Breakdown Voltage: 6.3 V (at 1 mA)
- Junction Capacitance: 2 to GND at 1 MHz
- Operating Temperature Range: -55°C to +125°C
- Storage Temperature: -55°C to +150°C
- Lead Solder Temperature: 260°C for 10 Seconds
- IEC 61000-4-2 Contact/ Air ESD: 425 kV
- Device Package: SOT-723, SOT-323
- RoHS & Pb-Free Compliant, AEC-Q101 Qualified
Buy the ON Semiconductor Series ESD7205 ESD Protection Diodes: SZESD7205DT5G
Purchase the ON Semiconductor ESD7205 transient voltage suppressor today to ensure ultra-low capacitance electrostatic discharge protection for your sensitive high-speed data lines. Designed to meet automotive standards and IEC 61000-4-2 Level 4, this diode provides a low ESD clamping voltage of 12 V and a maximum pulse current of 16 A for robust protection. Its compact SOT-723 and SOT-323 packages enable easy PCB integration, making it ideal for Ethernet, LVDS, and USB circuits in automotive and industrial environments. Ensure your system’s safety with trusted, Pb-Free design.
Get ON Semiconductor ESD7205 protection diode today—built for high-speed data line safety and high-reliability automotive applications.
Frequently Asked Questions
Where can I buy ONSEMI SZESD7205DT5G?
You can click on the BUY or RFQ button to purchase SZESD7205DT5G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part SZESD7205DT5G?
You can download the SZESD7205DT5G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of SZESD7205DT5G?
ONSEMI
