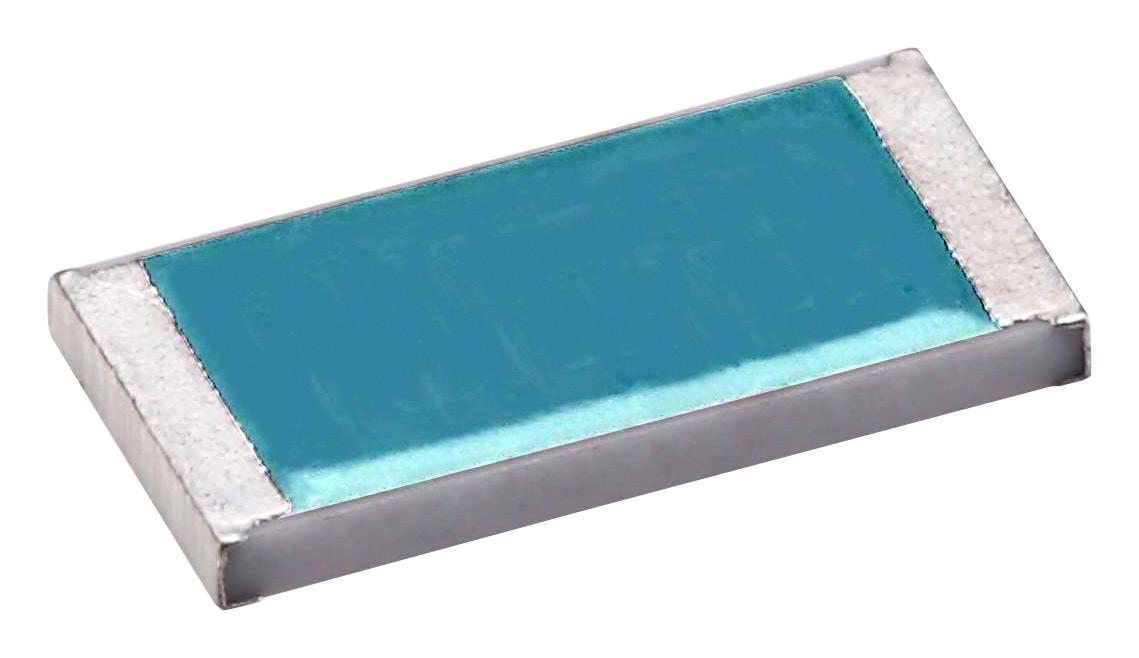

Ohmite ALN2512F2K00E1 High Power Thick Film Resistor
The ALN2512F2K00E1 is a high-power, thick film resistor designed on an aluminum nitride substrate, offering reliable performance in industrial and telecom applications. It features a 2512 size, a resistance range from 102 ohms to 2K ohms, and a power rating of 3.5W at 70°C, with up to 22W under temperature-controlled conditions. The resistor withstands temperatures from -55°C to +155°C, provides excellent overload and moisture resistance, and conforms to industry standards for solderability and durability, making it ideal for demanding electronic systems.
Ohmite ALN2512F2K00E1 High Power Thick Film Resistor Specifications:
- Size: 2512
- Resistance Range: 102Ω to 2KΩ
- Power Rating: 3.5W at 70°C, up to 22W with temperature control
- Temperature Range: -55°C to +155°C
- Maximum Operating Voltage: 200V
- Overload Voltage: 2.5×P-R or Max Operating Voltage
- Terminal Temp: Not specified
- Resistance Temperature Coefficient: ±150 ppm/°C
- Temperature Coeff. of Resistance: ±120 ppm/°C
- Moisture Resistance: 240 hours at 80% RH
- Soldering: IR reflow at 260°C for 10 seconds, three reflow cycles max
- Storage Conditions: 15-28°C, humidity < 80% RH
Buy the Aluminum Nitride Resistor 2K Ohm – Reliable Thick Film Resistor for Industrial Applications
Purchase the ALN2512F2K00E1 high power thick film resistor online to ensure reliable performance in industrial and telecom systems. Featuring aluminum nitride substrates, resistance from 102Ω to 2KΩ, and a power rating of 3.5W at 70°C, it offers excellent thermal stability and durability. Designed to withstand temperatures from -55°C to +155°C, it is ideal for high-demand applications. Easy to integrate into your circuit with industry-standard size 2512, ensure your project’s success with this high-quality component available now for quick online ordering.
Get ALN2512F2K00E1 today—built for high power performance, thermal stability, and long-lasting durability in demanding electronic environments.
Frequently Asked Questions
Where can I buy Ohmite ALN2512F2K00E1?
You can click on the BUY or RFQ button to purchase ALN2512F2K00E1 from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part ALN2512F2K00E1?
You can download the ALN2512F2K00E1 datasheet or visit the Ohmite website for support.
Who is the manufacturer of ALN2512F2K00E1?
Ohmite
