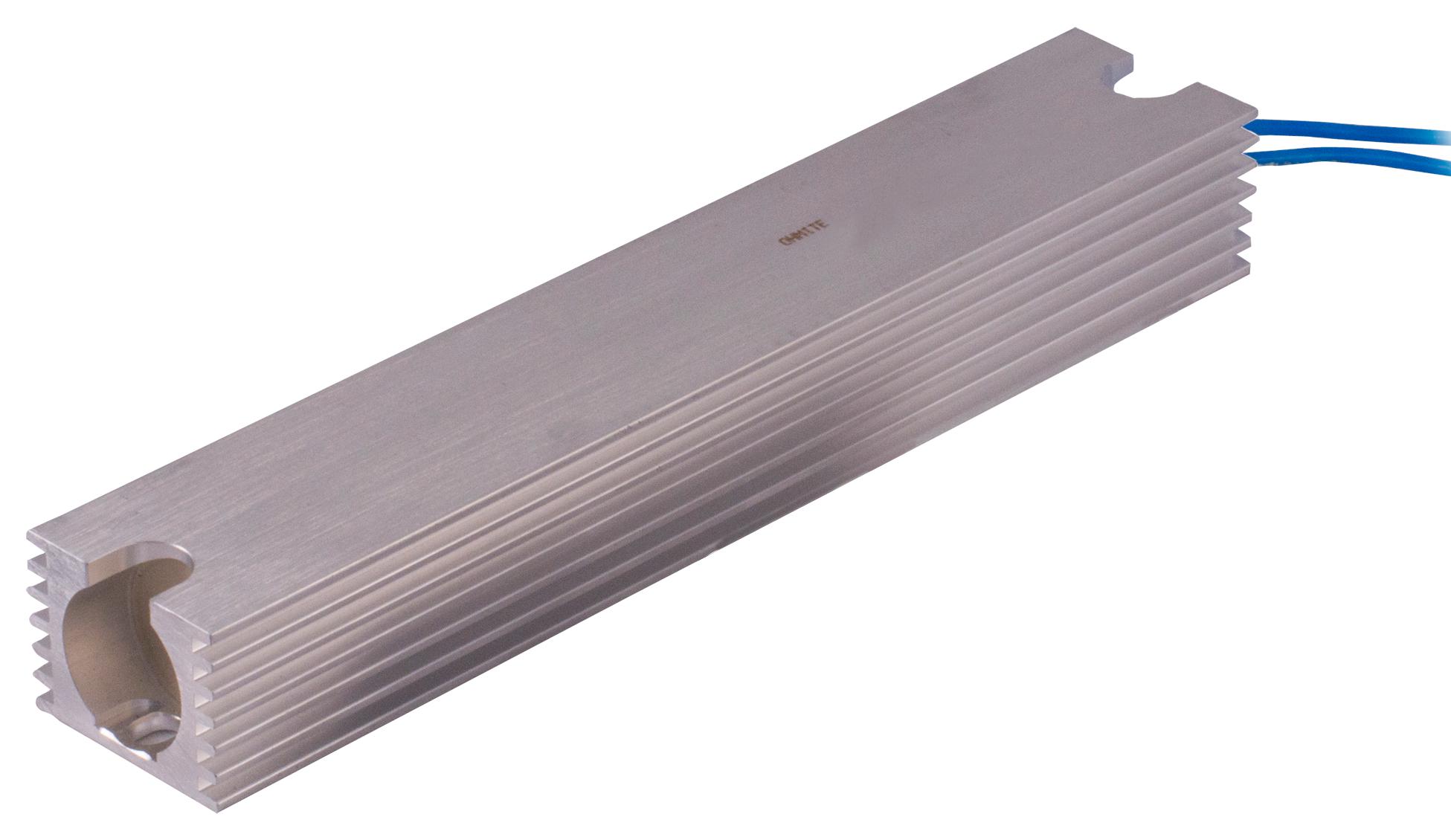

Ohmite ARG320C8RJ Power Resistor
The ARG series by Ohmite comprises wirewound power resistors housed in aluminum cases, designed for efficient heat dissipation through finned extrusion profiles. Suitable for high-power electronic circuits such as motor control and braking, these resistors feature insulated connectors for secure wiring. They handle nominal loads up to 400W at 25°C, with resistance values ranging from 1R6 to 910R. Capable of withstand voltage up to 2,300VAC, their rugged construction ensures stability, reliability, and thermal efficiency in demanding industrial applications.
Ohmite ARG320C8RJ Power Resistor Specifications:
- Power Rating: 150W to 500W at 25°C
- Resistance Range: 1R6 to 910R
- Maximum Overload Voltage: 1,000VAC to 2,300VAC
- Maximal Surface Temperature: 250°C
- Resistance Tolerance: ±5%
- Temperature Coefficient: < +150ppm/°C
- Isolation Resistance: >10GΩ at 50VAC
- Isolation Test Voltage: 4000VAC
- Climatic Category: 50/200/56
- Dimensions vary by model, e.g., ARG120: L1 90mm, L2 79mm, Weight 180g
- Surface Temperature Stability: ±5% at 25°C and 100% load over 1000 hours
- Pulse Overload: 10x nominal power for 5 sec
- Surface Max Temperature: 250°C
- Derating: Power reduces with increasing temperature beyond rated conditions
Buy the Buy Ohmite ARG Series Power Resistor Part Number ARG320C8RJ Online
Discover the high-quality Ohmite ARG series power resistors, designed for demanding industrial applications including motor control and power regulation. With robust aluminum casings and finned profiles, these resistors dissipate heat efficiently and handle up to 400W at 25°C. Their high overload voltage ratings and stability make them ideal for critical electronic circuits requiring reliable and durable components. Purchase online today for quick delivery and competitive prices, ensuring seamless integration into your power or automation systems.
Order your Ohmite ARG Series ARG320C8RJ power resistor today and ensure reliable performance in your high-power electronic projects.
