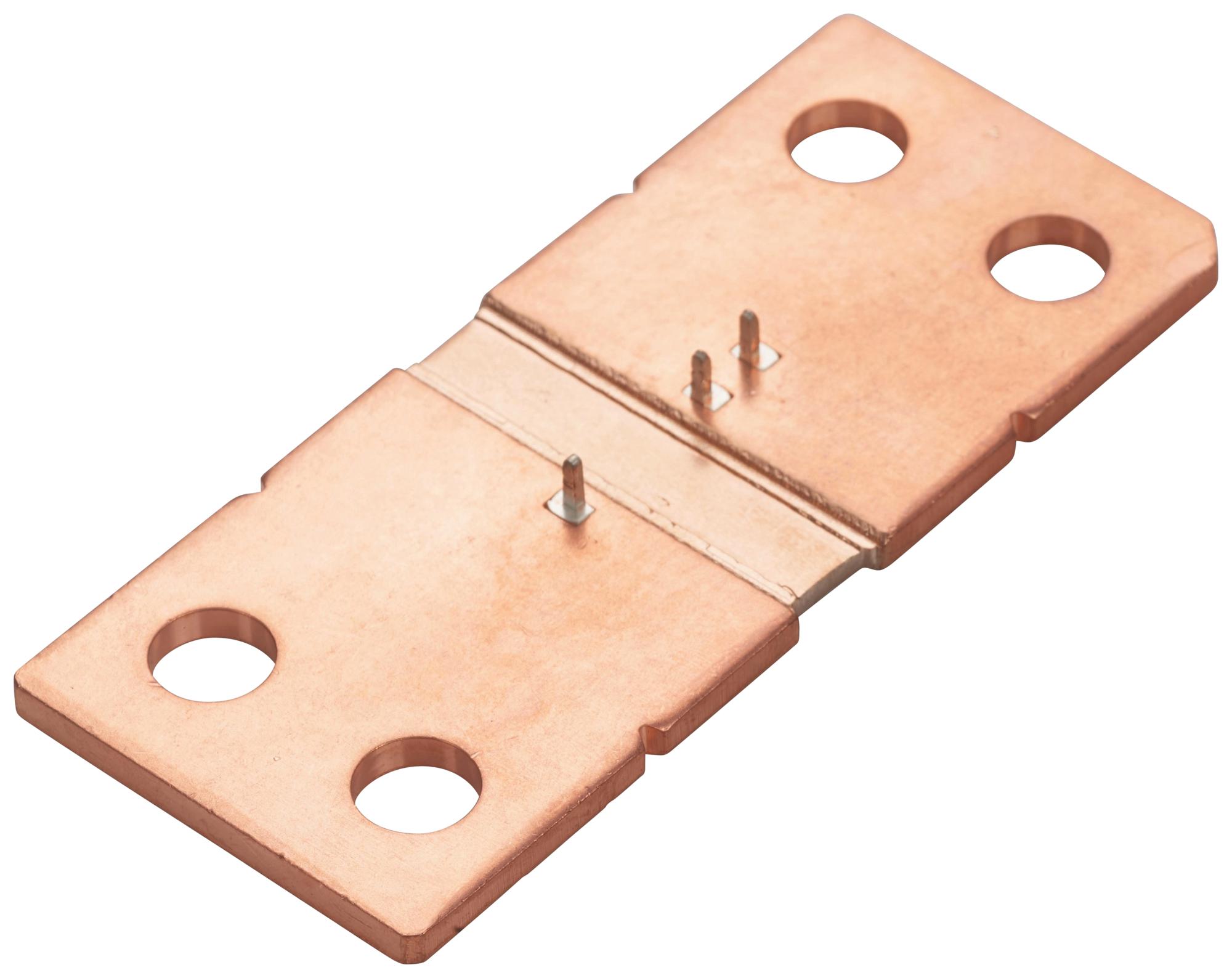

Ohmite SH8536F1K0APEP High Power Current Shunt
The Ohmite SHA series precision manganin copper alloy shunt supports up to 1KA rated current, offering excellent stability, low inductance under 3nH, and high-frequency suitability. Crafted with special heat treatment, it maintains low temperature coefficient and stability under pulse currents. With four-terminal Kelvin connections, rated power options of 25W, 36W, and 50W, it suits applications like battery management, electronic power, motor control, and frequency converters. Its durable construction and low thermal EMF provide reliable performance in demanding environments, ensuring precise current measurement and excellent long-term stability.
Ohmite SH8536F1K0APEP High Power Current Shunt Specifications:
- Rated Power: 25W, 36W, 50W
- Resistance Range: 50uΩ, 100uΩ, 125uΩ, 250Ω, customized options available
- Tolerance: +0.5%, +1%, +5%
- Resistance Coefficient: <10ppm/A
- Rated Current: 500A to 1000A
- Thermal Shock Resistance: -55°C to 150°C, 1000 cycles
- Pulse Overload: 5 times rated power for 5 seconds
- Storage Temp Range: -55°C to +170°C
- Vibration Resistance: 10Hz to 2000Hz, 12 hours
- Weight: 35g, 40g, 80g
- Pins: Tin plated, interference fit
- Dimensions: Varies per model, typical sizes 60x18mm, 85x36mm
- Inductance: Less than 3nH
- Temperature Coefficient: Less than 10ppm/A
- Operating Frequency: Suitable for high frequency applications
- Compliance: RoHS
Buy the Ohmite SH8536 U+2013 Reliable Current Shunt for Industrial Applications
Purchase the Ohmite SH8536 precision manganin copper alloy shunt online today and experience reliable current measurement in demanding industrial applications. This high-power shunt supports up to 1KA rated current with robust construction, low inductance, and excellent stability for long-term use. Its resistance is finely tuned for minimal thermal EMF and consistent performance under pulse overload conditions. Ideal for battery management, motor control, electronic power, and frequency converter applications, it ensures accurate readings, durability, and high-frequency capability, making it the perfect choice for professionals seeking dependable measurement solutions.
Order your Ohmite Series SH8536 high-power copper alloy shunt today and ensure precise current measurement with superior stability and durability for your industrial projects.
Frequently Asked Questions
Where can I buy Ohmite SH8536F1K0APEP?
You can click on the BUY or RFQ button to purchase SH8536F1K0APEP from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part SH8536F1K0APEP?
You can download the SH8536F1K0APEP datasheet or visit the Ohmite website for support.
Who is the manufacturer of SH8536F1K0APEP?
Ohmite
