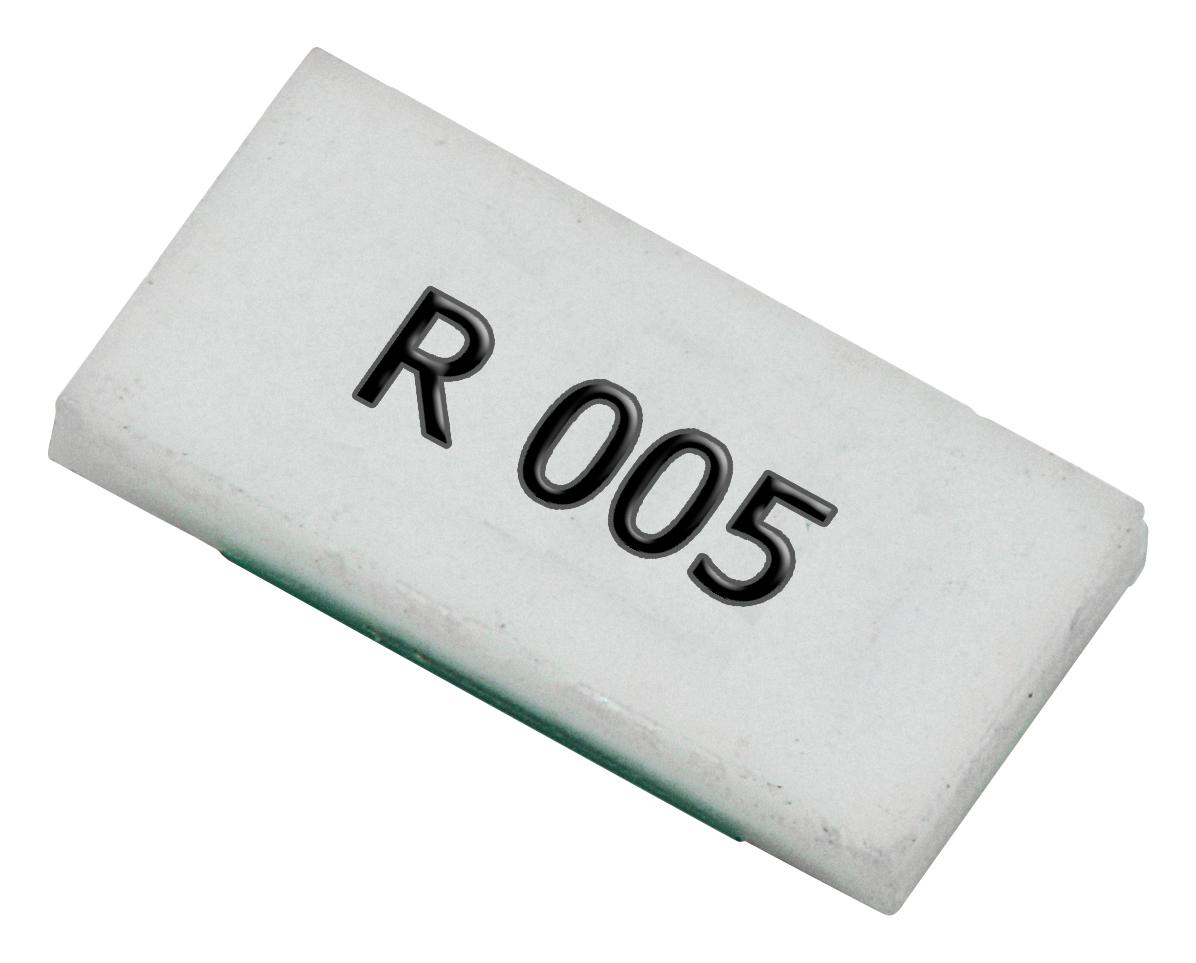

Ohmite FC4TR015FER Metal Foil Resistor
The FC4T chip features four terminals in a Kelvin configuration, allowing precise current measurement by eliminating terminal resistance and temperature effects. Made with Ohmite's Metal Foil technology, it provides an excellent Temperature Coefficient of Resistance (TCR), even for very low resistance values down to 50ppm. This high-performance resistor offers stable operation across a wide temperature range from -55°C to +155°C, with rated power of 0.5W, resistance values from 0.005Ω to 0.100Ω, and tolerance options of 0.5% and 1%. Its epoxy coating and Cu/Ni/Sn terminals ensure durability and reliable performance in various electronic applications.
Ohmite FC4TR015FER Metal Foil Resistor Specifications:
- Series: FC4T
- Package Size: 1206
- Power Rating: 0.5W at 70°C
- Resistance Range: 0.005Ω to 0.100Ω
- Resistance Tolerance: 0.5%, 1%
- Temperature Coefficient of Resistance: 50ppm
- Operating Temp. Range: -55°C to +155°C
- Termination Material: Cu/Ni/Sn
- Construction: Epoxy resin coating on Cu-alloy resistor on alumina substrate
- Max. Current: 27.55A based on resistance value
- Resistance of Electrodes: Less than 5mΩ
- Tolerance Options: 0.5% and 1% available
- Construction includes epoxy resin protection coat, copper alloy resistor, alumina substrate, and sealing tape
Buy the Buy Ohmite Metal Foil Low Value Chip Part Number FC4TR015FER Online
Order the high-precision Metal Foil resistor online from Ohmite today to benefit from its exceptional TCR, low resistance values, and durable construction. Designed for accuracy and stability in electronic circuits, this resistor is ideal for applications requiring precise current measurement. The FC4T chip's Kelvin configuration and low resistance make it suitable for advanced electronic systems. Enjoy fast shipping, safe purchasing, and reliable performance by choosing to buy this resistor online for your professional and industrial needs.
Buy Ohmite FC4TR015FER now and experience unmatched reliability and performance with high-precision low resistance chip technology.
Frequently Asked Questions
Where can I buy Ohmite FC4TR015FER?
You can click on the BUY or RFQ button to purchase FC4TR015FER from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part FC4TR015FER?
You can download the FC4TR015FER datasheet or visit the Ohmite website for support.
Who is the manufacturer of FC4TR015FER?
Ohmite
