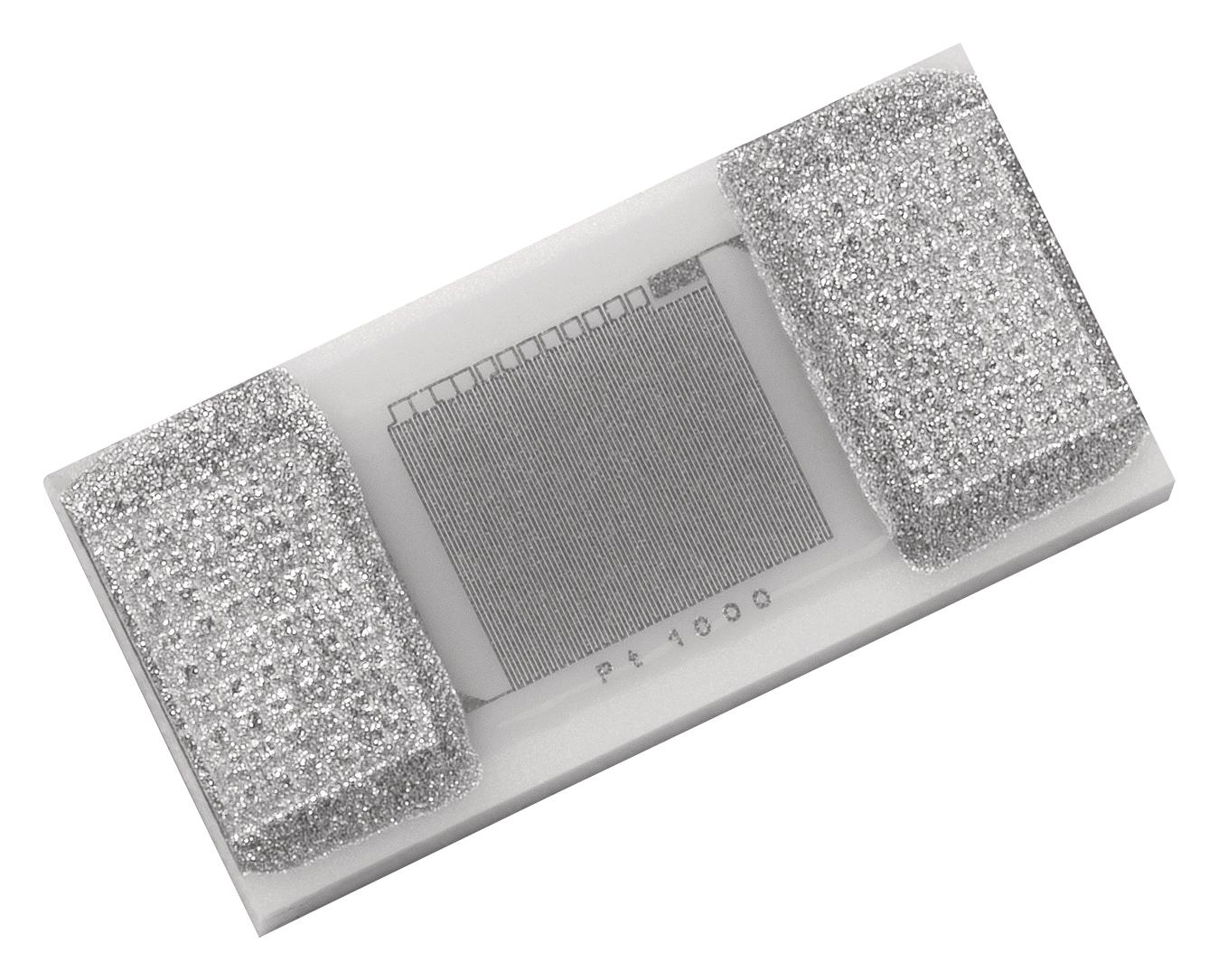

Ohmite FST08B100E Thin Film Temperature Sensor
The FST series thin film temperature sensors are designed for face-down mounting in electronic applications, offering high accuracy and stability. They utilize thick-film AgPd metallization and are compliant with RoHS standards. Suitable for dry environments, these sensors operate over -50°C to 170°C with a TCR of 3850 ppm/K. They feature resistance tolerances of 0.12% or 0.24%, and are ideal for precise temperature measurements in industrial systems. Mounting options include reflow soldering, wave soldering, or SMD insertion with conductive adhesive, ensuring reliable performance and long-term stability.
Ohmite FST08B100E Thin Film Temperature Sensor Specifications:
- Resistance: 100Ω, 500Ω, 1kΩ with tolerance classes B (0.12%) and 2B (0.24%)
- Temperature Range: -50°C to 170°C
- Resistance TCR: 3850 ppm/K
- Material: AgPd metallised thick-film technology
- Operating Power: 100Ω: 0.3 to 1.0mA; 500Ω: 0.1 to 0.7mA; 1kΩ: 0.1 to 0.3mA
- Insulation Resistance: >100 MW at 20°C, >2 MW at 170°C
- Surface Mounting: Suitable for reflow, wave soldering, or SMD insertion with conductive adhesives
- Storage Life: Min. 9 months in nitrogen atmosphere
- Reaction Time: Flowing water t0.5=0.10s, t0.9=0.255s; Air flow v=2m/s: 0.5=2.55s, 0.9=80s
- Ambient Conditions: Dry environment recommended
- Long-term Stability: Ro drift <0.06% after 1000 hours at 170°C
Buy the Omnitech FST08B100E – Reliable Temperature Sensor for Industrial Applications
Enhance your industrial temperature monitoring with the high-accuracy FST series thin film sensors. Designed for face-down mounting, these sensors offer excellent stability, precise resistance at various levels, and are compliant with RoHS standards. Suitable for dry environments, they operate in a temperature range from -50°C to 170°C with fast response times. Easily mounted via reflow, wave soldering, or SMD insertion, ensuring reliable long-term performance in demanding industrial settings. Order online today for dependable temperature measurement solutions.
Buy Omnitech FST08B100E now and experience unmatched reliability and precision in temperature measurement for industrial environments.
Frequently Asked Questions
Where can I buy Ohmite FST08B100E?
You can click on the BUY or RFQ button to purchase FST08B100E from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part FST08B100E?
You can download the FST08B100E datasheet or visit the Ohmite website for support.
Who is the manufacturer of FST08B100E?
Ohmite
