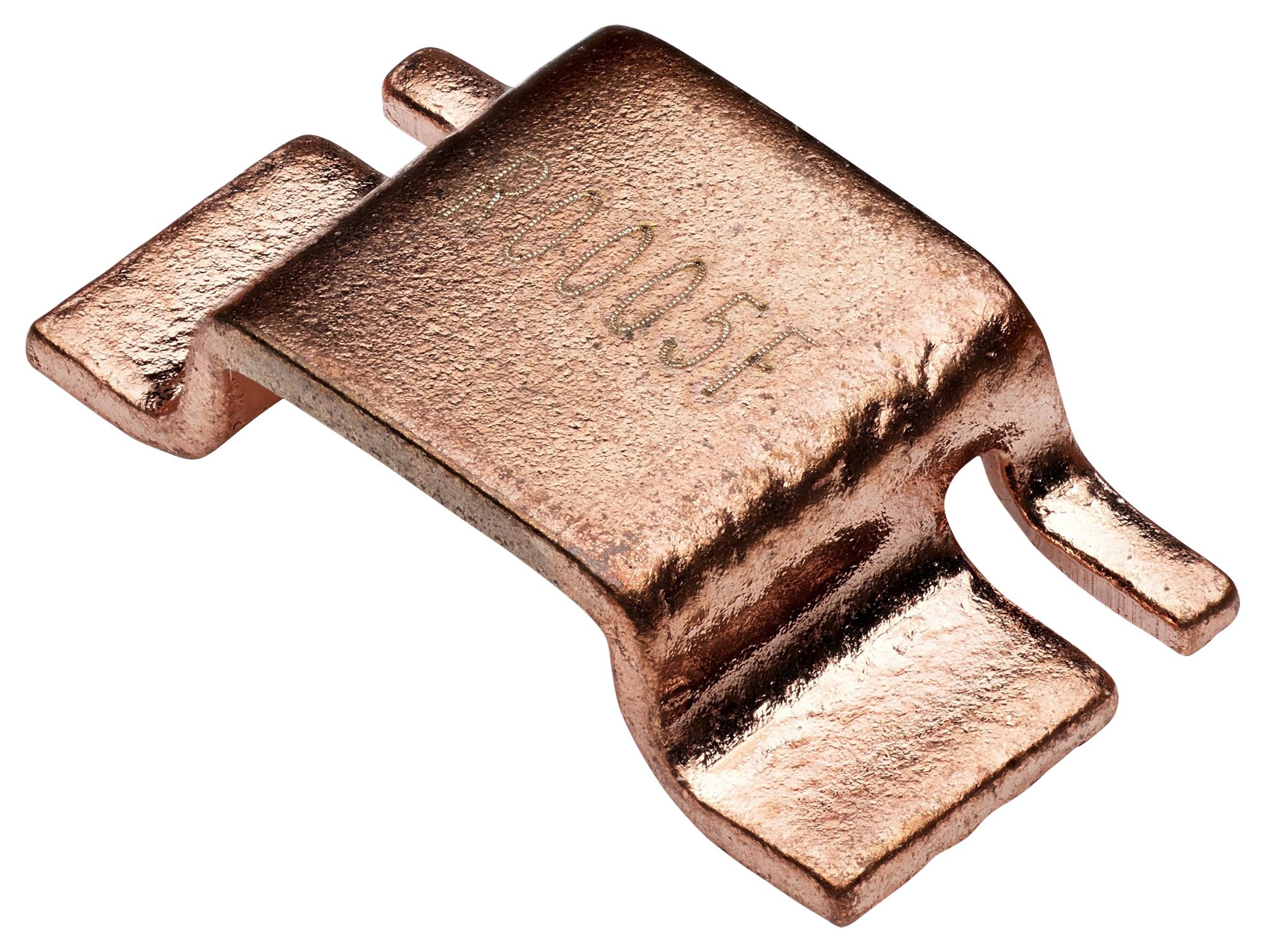

Ohmite GKK5R0030FETR Low-Resistance Chip Resistor
The GKK Series metal film low-resistance chip resistor is designed for high-power and high-precision applications, offering a power rating up to 5 watts. It features excellent long-term stability, a resistance range from 0.3mΩ to 3mΩ, and a 1% tolerance. The resistor is suitable for mounting on DCB/IMS substrates, power modules, and current sensors within automotive and automation markets. It operates over a temperature range of -55°C to +155°C and complies with RoHS standards, making it ideal for demanding electronic control and power management systems.
Ohmite GKK5R0030FETR Low-Resistance Chip Resistor Specifications:
- Power Rating: Up to 5 watts at 70°C
- Resistance Range: 0.3mΩ to 3mΩ
- Tolerance: 1%
- Thermal Coefficient of Resistance (TCR): Manganin: 70ppm/K, Karma: <40ppm/K
- Operating Temperature Range: -55°C to +155°C
- Resistance Stability (Covered): <1.0%
- Termination Material: FKM folded terminal, Manganin, Karma, Gullwing configurations
- Physical Dimensions: Folded land pattern, material-specific dimensions (e.g., 6.9 mm x 40.3 mm for certain models)
- RoHS Compliant
- Welding and mounting: Suitable for automatic processes and DCB/IMS substrates
Buy the Buy Metal Film Low-Resistance Chip Resistor Part Number GKK5R0030FETR Online
Order the GKK Series low-resistance chip resistor online today to benefit from superior stability, high power ratings up to 5W, and precise resistance values. Designed for automotive, industrial, and automation systems, this resistor offers excellent long-term performance and RoHS compliance. Its wide operating temperature range from -55°C to +155°C ensures reliability in harsh environments. Easily mount on DCB/IMS substrates and power modules, making it the ideal choice for engineers seeking high-quality, durable resistors for critical electronic applications.
Buy Metal Film Low-Resistance Chip Resistor GKK5R0030FETR now and experience unmatched reliability and high power efficiency for your demanding electronic applications.
