Ohmite HS25560RJ Aluminium Housed Resistor
The HS aluminium housed resistors are high-power, high pulse capability resistors designed for direct heatsink mounting with thermal compound to ensure optimal performance. Manufactured according to MIL 18546 and IEC 115 standards, these resistors feature wound construction for enhanced pulse handling, RoHS compliance, and customizable options with various ohmic values from R005 to 100K. Suitable for applications requiring reliable power dissipation, these resistors are engineered for maximum thermal efficiency, with specific mounting and heat sink recommendations to prevent exceeding 200°C surface temperature. Ideal for industrial, electronic, and power management uses, they offer low inductance options and precise tolerance capabilities.
Ohmite HS25560RJ Aluminium Housed Resistor Specifications:
- Power Rating: Ranges from 4W to 600W depending on size and model
- Ohmic Values: R005 to 100K
- Tolerance: Standard +5% (J), +10% (K), options +1% (F), +2% (G), +3% (H)
- Temperature Coefficient: Typically < 1K 100ppm, or < 1K 25ppm for lower TCR options
- Insulation Resistance: Minimum 10,000 MΩ (dry)
- Surface Temperature Rise: Controlled via heat sink and thermal compound, maximum 200°C
- Dimensions: Vary by model, e.g., HS15: 36.5 mm max length, HS25: 51.0 mm max length
- Voltage: Max working voltage varies from 1400V AC to 7070V AC depending on model
- Resistance Range: Manufacturer specified, from low ohmic to high resistance values
- Construction: Wound for high pulse capability, RoHS compliant, custom designs available

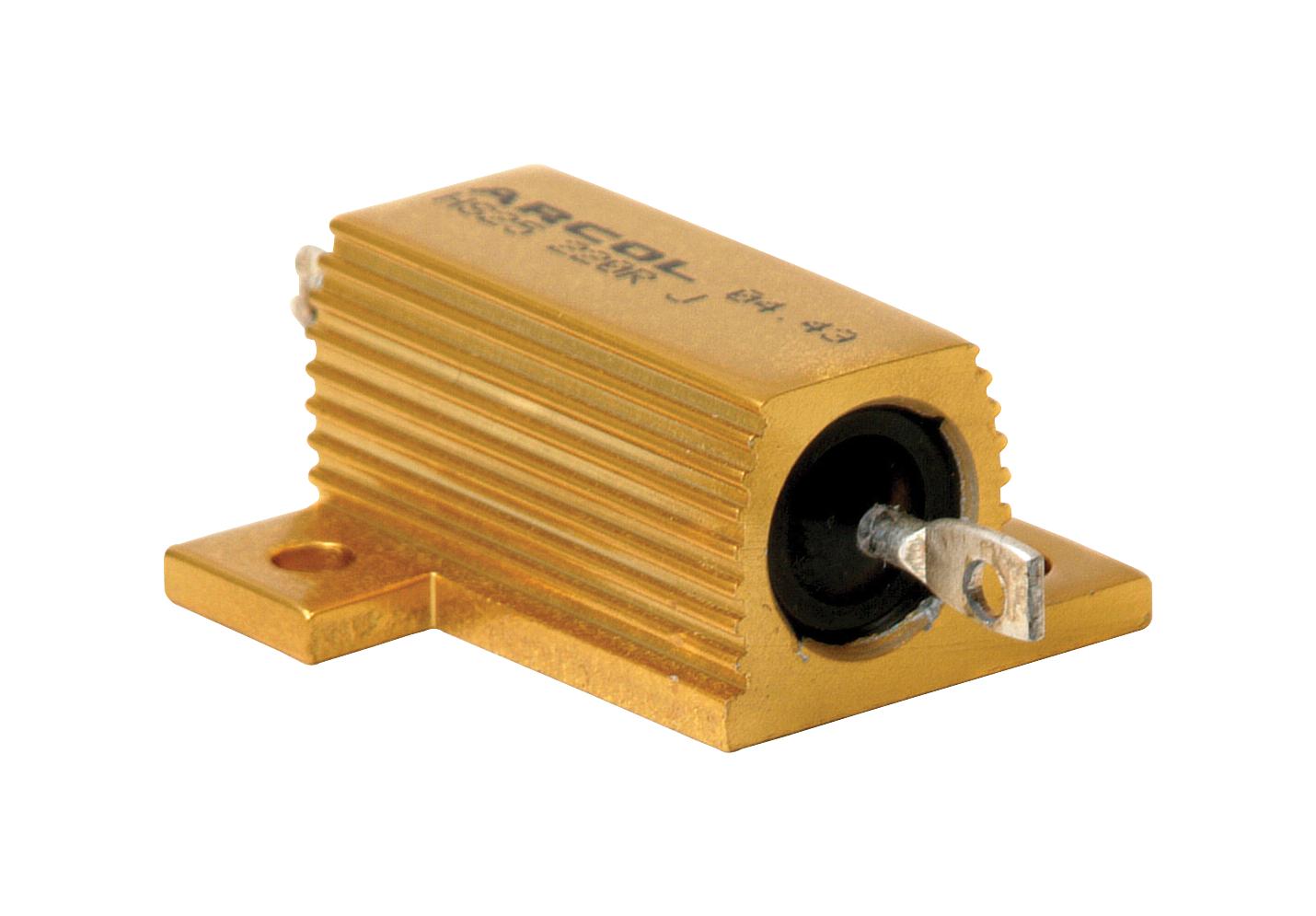

Buy the Buy Arcol Aluminium Housed Resistors Part Number HS25560RJ Online
Purchase the Arcol HS25560RJ aluminium housed resistor today for high power dissipation, excellent pulse response, and precise thermal management. Designed for direct heatsink mounting with thermal compound, these resistors are RoHS compliant and suitable for demanding industrial environments. Their wound construction ensures maximum pulse capability across a wide range of ohmic values, from R005 to 100K. With tailored tolerances and construction options, they offer low inductance, reliable insulation resistance, and efficient heat dissipation, making them ideal for power management, electronic, and industrial applications. Order now for quick, secure online availability and expert support.
Get Arcol HS25560RJ today—built for high power, thermal efficiency, and reliable performance in industrial applications.
Frequently Asked Questions
Where can I buy Ohmite HS25560RJ?
You can click on the BUY or RFQ button to purchase HS25560RJ from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part HS25560RJ?
You can download the HS25560RJ datasheet or visit the Ohmite website for support.
Who is the manufacturer of HS25560RJ?
Ohmite
