Ohmite HS25R47J High Power Aluminium Resistor
The HS25 Aluminium Housed Resistor is designed for high power and high pulse capability applications, compliant with MIL 18546 and IEC 115 standards. It features direct heatsink mounting with thermal compound for optimal heat dissipation, ensuring maximum performance at elevated temperatures. Available in ohmic values from R005 to 100K, it offers various tolerance options, including ±1%, ±2%, and ±5%. Its construction provides low inductance, high insulation resistance, and efficient heat transfer, making it suitable for demanding industrial environments requiring reliable, high-power resistors with robust thermal management.
Ohmite HS25R47J High Power Aluminium Resistor Specifications:
- Power Dissipation: 25 Watts at 25°C, derates linearly to zero at 200°C
- Resistance Range: R005 to 100K ohms
- Tolerance: ±1% (F), ±2% (G), ±5% (J, standard), ±10% (K)
- Insulation Resistance: Minimum 10,000 MΩ (dry)
- Temperature Coefficient: Typically < 100 ppm (for < 1K TCR) and < 25 ppm (for > 1K TCR)
- Maximum Surface Temperature: 200°C
- Voltage Ratings: Divide standard max working voltage by 1.414 for working voltage
- Construction: Aluminium housing with heatsink mounting using proprietary compound
- Dimensions: Length 28.0 mm, Width 51.0 mm, Height 14.2 mm (approximate for HS25)
- RoHS Compliant, Suitable for high pulse applications, Custom designs available

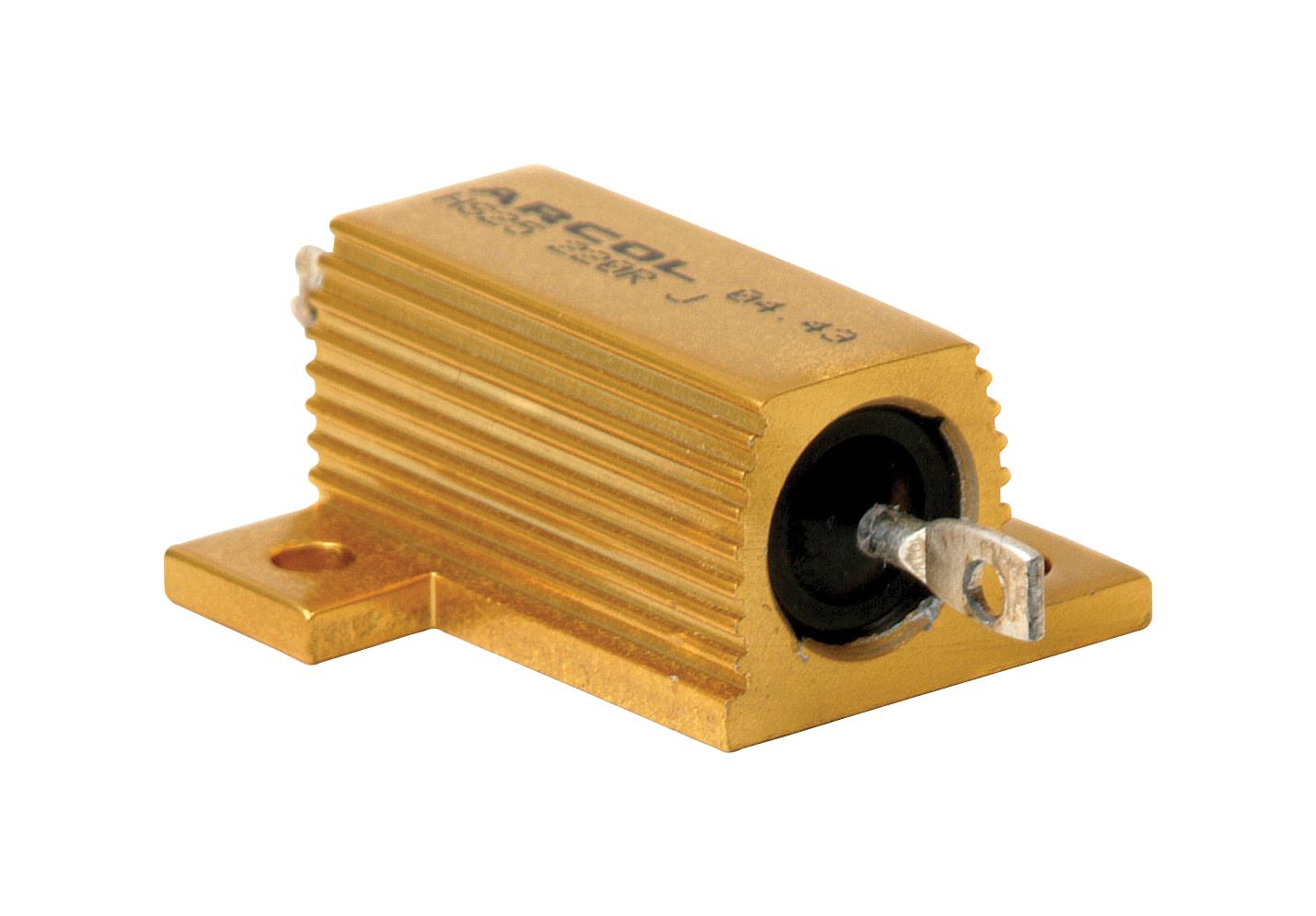

Buy the Buy Arcol HS25R47J Aluminium Housed Resistor Part Number HS25R47J Online
Order the Arcol HS25R47J aluminium housed resistor online now to ensure reliable high power performance in industrial applications. This resistor features direct heatsink mounting, low inductance, and excellent thermal management. Suitable for demanding environments, it provides high pulse capability, a resistance range from R005 to 100K, and tolerance options down to ±1%. Its sturdy aluminium housing ensures efficient heat transfer and durability under high temperature conditions. Perfect for automation, power supplies, and thermal management systems requiring long-lasting, precise resistors with robust construction.
Get Arcol HS25R47J aluminium high power resistor today—designed for high pulse capability and robust thermal performance.
Frequently Asked Questions
Where can I buy Ohmite HS25R47J?
You can click on the BUY or RFQ button to purchase HS25R47J from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part HS25R47J?
You can download the HS25R47J datasheet or visit the Ohmite website for support.
Who is the manufacturer of HS25R47J?
Ohmite
