Ohmite LVT06R0030GER Low Value Current Sense Resistor
The Ohmite LVT series consists of low value current sense resistors made from metal alloy strips, offering excellent TCR ratings as low as 50ppm and tight tolerances down to 1%. Designed for precision current measurement, these resistors feature resistance ranges from 2mΩ to 20mΩ and operate reliably in temperatures from -55°C to 155°C. Constructed with epoxy resin coating and cu-alloy terminals with matte tin finish, they are suitable for various high-power, small form factor applications requiring stability, durability, and accurate electrical performance.
Ohmite LVT06R0030GER Low Value Current Sense Resistor Specifications:
- Resistance Range: 0.002-0.020 ohms, dependent on size and TCR
- Power Ratings: 0.33W (0402, 0603), 0.5W (0805), 1.0W (1206)
- Operating Temp. Range: -55°C to +155°C
- Rated Ambient Temperature: +70°C
- Resistance Tolerance: 1%, 2%, 3%
- Temperature Coefficient: 50ppm/°C, 75ppm/°C, 100ppm/°C, 150ppm/°C
- Coating Material: Epoxy resin
- Terminals: 100% matte tin
- Construction: Cu-alloy resistor with epoxy substrate
- Storage Conditions: 2 years, airtight, 10°C to 40°C, humidity <75%
- Solderability: Meets UL-94V-0 flame-retardant epoxy, resistance to reflow at 275°C for 20 sec.
- Mechanical Shock Resistance: 100G, 11ms
- Reflow Soldering: Max 260°C, profile with preheating and cooling phases
- Rework: Hot air reflow at 350°C for 3-5 sec.
- Resistance Stability: Maintains performance after high temperature and moisture exposure.

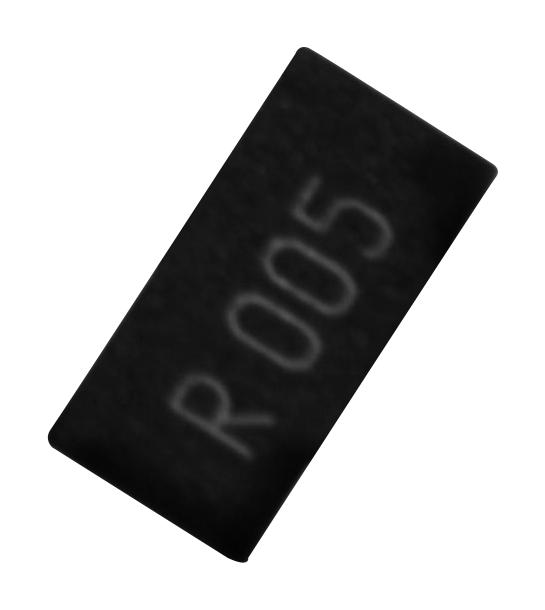

Buy the Ohmite Series LVT Low Value Current Sense: R0025-RO20
Enhance your electronic projects with Ohmite LVT series low value current sense resistors, offering superb accuracy, low TCR, and tight tolerances from 2mΩ to 20mΩ. Designed for precision current measurement, these resistors operate efficiently from -55°C to 155°C and feature epoxy resin coating and durable cu-alloy terminals with matte tin finish. Ideal for power electronics, automation, and testing, they ensure stability, reliable performance, and easy installation for demanding environments. Purchase online and improve your project's measurement accuracy today.
Buy Ohmite LVT series low value current sense resistors now and experience unmatched reliability and precision in your current measurement applications.
Frequently Asked Questions
Where can I buy Ohmite LVT06R0030GER?
You can click on the BUY or RFQ button to purchase LVT06R0030GER from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part LVT06R0030GER?
You can download the LVT06R0030GER datasheet or visit the Ohmite website for support.
Who is the manufacturer of LVT06R0030GER?
Ohmite
