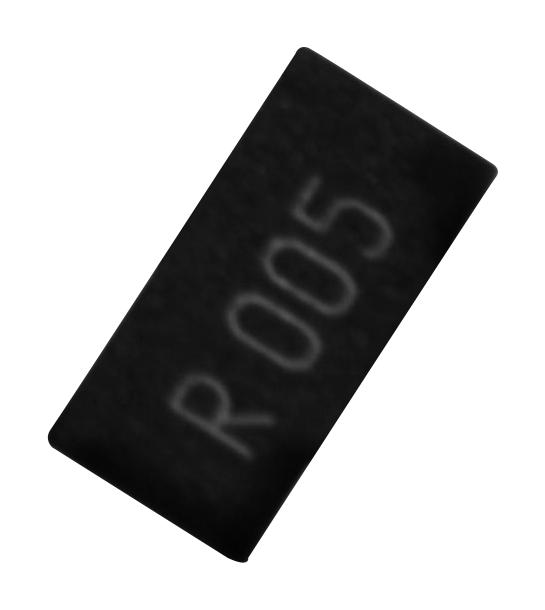

Ohmite LVT06R0050FER Current Sense Resistor
The Ohmite LVT series consists of metal alloy strip resistors designed for accurate current sensing in various electronic applications. Offering resistance values from 2mΩ to 20mΩ, these resistors feature low TCR ratings down to 50ppm, ensuring exceptional stability over temperature. Available in multiple sizes including 0402, 0603, 0805, and 1206, they have power ratings of up to 1.0W, with precise tolerances as low as 1%. These resistors meet UL-94V-0 flammability standards and are protected with epoxy resin coating, suitable for high-reliability circuits.
Ohmite LVT06R0050FER Current Sense Resistor Specifications:
- Resistance Range: 0.002-0.020 ohms depending on size and TCR value
- Power Ratings: 0.33W (0402, 0603), 0.5W (0805), 1.0W (1206)
- Resistance Tolerance: 1%, 2%, and 3%
- Temperature Coefficient: 50, 75, 100, or 150 ppm/°C
- Operating Temp Range: -55°C to +155°C
- Rated Ambient Temperature: +70°C
- Coating Material: epoxy resin
- Terminals: 100% matte tin
- Storage Conditions: 2 years airtight, 10°C to 40°C, RH<75%; 95% RH, 30 days
- Construction: Cu-alloy resistor with epoxy substrate, meets UL-94V-0 flammability
Buy the Ohmite R0025 – Reliable Current Sense Resistor for Industrial Applications
Purchase the Ohmite LVT series resistors online for accurate and reliable current sensing in your electronic circuits. These resistors feature low TCR ratings, tight tolerances, and diverse sizes and power ratings ideal for industrial, automotive, and high-performance applications. Their construction with epoxy coating and tin-plated terminals ensures durability and high reliability. Order now to benefit from fast shipping, quality assurance, and competitive pricing—perfect for engineers and technicians seeking precision components for critical power management and electronic measurement in a variety of demanding environments.
Get Ohmite LVT06R0050FER today—built for precision and long-lasting durability in current sensing and power measurement.
Frequently Asked Questions
Where can I buy Ohmite LVT06R0050FER?
You can click on the BUY or RFQ button to purchase LVT06R0050FER from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part LVT06R0050FER?
You can download the LVT06R0050FER datasheet or visit the Ohmite website for support.
Who is the manufacturer of LVT06R0050FER?
Ohmite
