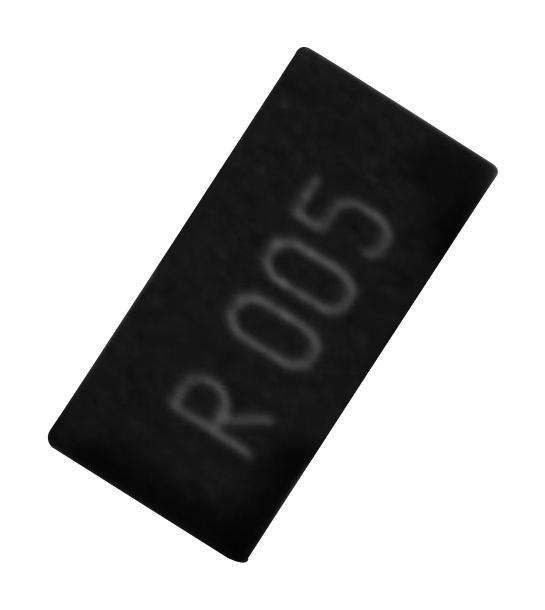

Ohmite LVT06R0100FER Low-Value Current Sense Resistor
The ohmite LVT series is a high-precision metal alloy strip resistor designed for low-value current sensing applications. It features excellent TCR ratings down to 50 ppm, with resistance values ranging from 2m to 20m ohms. The series offers tight tolerances of 1%, 2%, and 3%, along with epoxy resin coating for durability. Its temperature coefficient ensures stable operation across -55°C to 155°C, making it suitable for precise and reliable current measurement in electronic circuits and power management systems.
Ohmite LVT06R0100FER Low-Value Current Sense Resistor Specifications:
- Resistance Range: 0.002-0.020 ohms depending on size and TCR
- Power Rating: 0.33W (0402, 0603), 0.5W (0805), 1.0W (1206), 1.0W (others)
- Temperature Coefficient: +50, 75, 100, or 150 ppm/°C based on resistance
- Tolerance: ±1%, 2%, or 3%
- Operating Temp. Range: -55°C to +155°C
- Rated Ambient Temperature: +70°C
- Material: Cu-alloy resistor with epoxy resin coating
- Terminals: 100% matte tin plated
- Storage Conditions: 2 years airtight at +10°C to +40°C, 75% humidity
- Construction: Copper alloy resistor with flame-retardant epoxy protective coating
Buy the Ohmite Series Low Value Current Sense: LVT06R0100FER
Experience exceptional accuracy and stability with the Ohmite low-value current sense resistor. Designed for power management and electronic circuits, this resistor offers resistance values from 2mΩ to 20mΩ, with tight tolerance of ±1%. It features excellent temperature stability from -55°C to 155°C, making it reliable for demanding applications. The series utilizes durable epoxy coating and tin-plated terminals, ensuring longevity and corrosion resistance. Purchase online today to ensure your electronic projects meet the highest standards of precision and dependability.
Get Ohmite LVT06R0100FER today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy Ohmite LVT06R0100FER?
You can click on the BUY or RFQ button to purchase LVT06R0100FER from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part LVT06R0100FER?
You can download the LVT06R0100FER datasheet or visit the Ohmite website for support.
Who is the manufacturer of LVT06R0100FER?
Ohmite
