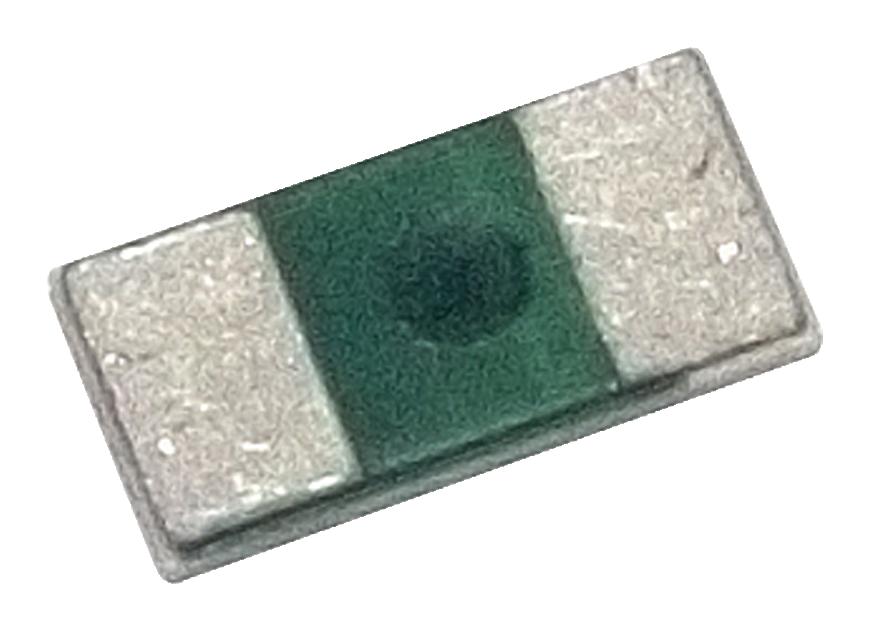

Ohmite MCS1320R005FER current sense resistor
The MCS Series resistive metal alloy current sense components are high-precision surface-mount devices designed for monitoring current in electronic circuits. Featuring ultra-low resistance values ranging from 0.00592 to 0.05022 ohms, these resistors utilize NiCu or MnCu alloys with a TCR of +10ppm/°K, ensuring excellent stability over temperature. They are packaged on alumina substrates with UL-94 V-0 flame-retardant epoxy coats, Pb-free copper terminals, and are suitable for industrial, automotive, and power electronics applications, including power supplies, motor controllers, and communication equipment.
Ohmite MCS1320R005FER current sense resistor Specifications:
- Resistance Range: 0.00592 ~ 0.05022 ohms
- Power Ratings: 0.75W, 1W, 2W at 70°C
- Resistance Tolerance: ±1%, ±3%, ±5%
- Temperature Coefficient (TCR): <50ppm/°C, typical +10ppm/°K
- Material: NiCu, MnCu, NiCr20AISi, CuMnNi alloys
- Substrate: Alumina ceramic
- Flammability: UL 94V-0 compliant epoxy coating
- Termination: Pb-free Cu with Sn/Ni Finish
- Operating Temperature Range: -55°C to +155°C
- Solder Profile: Preheating at 145°C max for 120s, soldering at 220°C for 60s, max temp 260°C for 45s, UL-94V-0 compliant coating
- Impedance: Low inductance and thermo EMF (<50µV/°C)
- Certification: RoHS compliant
Buy the Buy Ohmite MCS Series Current Sense Resistors Part Number MCS1320R005FER Online
Purchase the Ohmite MCS Series current sense resistor online today to secure highly stable, low-resistance measurement solution ideal for power supplies, motor controllers, and communication equipment. With ultra-low resistance values, low TCR, UL-94 V-0 flame-retardant coating, and RoHS compliance, these resistors deliver excellent reliability and thermal stability. Ideal for industrial, automotive, and consumer electronics applications, their surface-mount design ensures easy integration and high performance in demanding environments. Order now to enhance your electronic circuit accuracy and durability.
Order your Ohmite MCS1320R005FER resistive current sense component today and ensure accurate low-resistance measurement for power and industrial electronics.
Frequently Asked Questions
Where can I buy Ohmite MCS1320R005FER?
You can click on the BUY or RFQ button to purchase MCS1320R005FER from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part MCS1320R005FER?
You can download the MCS1320R005FER datasheet or visit the Ohmite website for support.
Who is the manufacturer of MCS1320R005FER?
Ohmite
