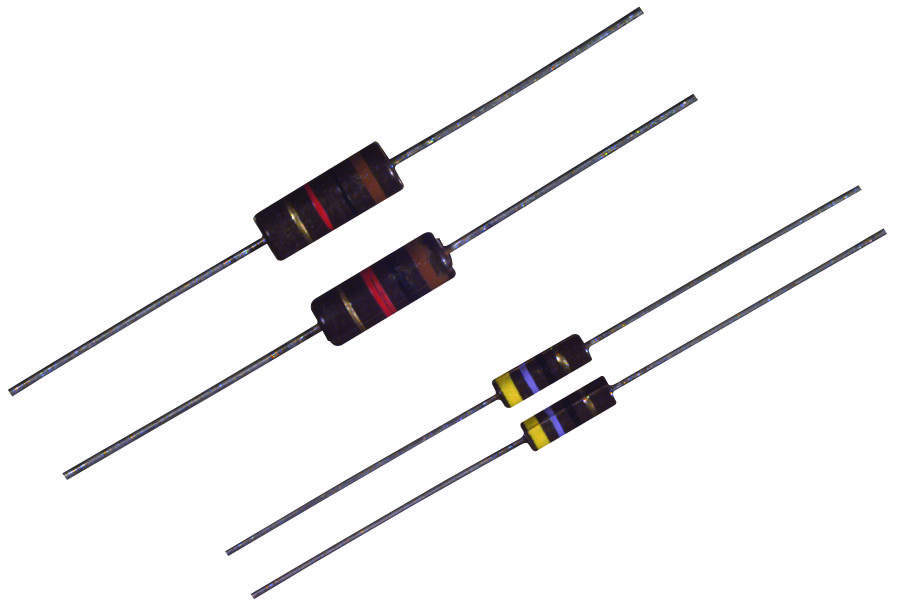

Ohmite OF473JE Carbon Composition Molded Resistor
OHMITE’s Little Demon OF473JE resistor is a small, reliable carbon composition resistor known for its exceptional strength and durability. The molded construction integrates the terminals, insulation, and resistive element into a single unit, providing high dielectric strength and robust performance. These resistors are characterized by their low noise, rapid heat dissipation, and high-temperature stability, making them ideal for applications requiring reliable resistance in demanding environments. They are comparable to “Mil” RC20 types and offer high surge capabilities. Proper storage and handling are recommended to maintain optimal performance and minimize resistance shift during soldering.
Ohmite OF473JE Carbon Composition Molded Resistor Specifications:
- series: OD/OF Series
- mil_r_11_type: RC20
- wattage: 0.50
- ohms: 2.2Ω - <100KΩ
- tolerance: ±5%
- max_voltage: 350
- dielectric_vac: 700
- terminals: Solder-coated copper terminal
- body: Molded Phenolic Single Pulse Power Capability
- pulse_power_w: 10,000
- derating: Linearly from 100% @ +70°C to 0% @ 130°C
- length_max: 1.135" ±0.12
- length_mm: 28.83mm ± 3
- diameter_max: 0.276 / 7.0
- lead_dia: 0.098 / 2.5
- lead_dia_mm: 0.024/0.60
- storage_temperature: 5° to 35°C
- storage_humidity: less than 60%
- tape_reel_od: 5000
- tape_reel_of: 3000
- reel_size_mm: 260
- qty_per_carton: 40,000
- gross_carton_wt_kg: 12
- carton_size_m3: 0.04
- ammo_box_od: 2000
- ammo_box_of: 2000
- qty_per_carton_ammo: 30,000
- gross_carton_wt_kg_ammo: 10
- carton_size_m3_ammo: 0.03
