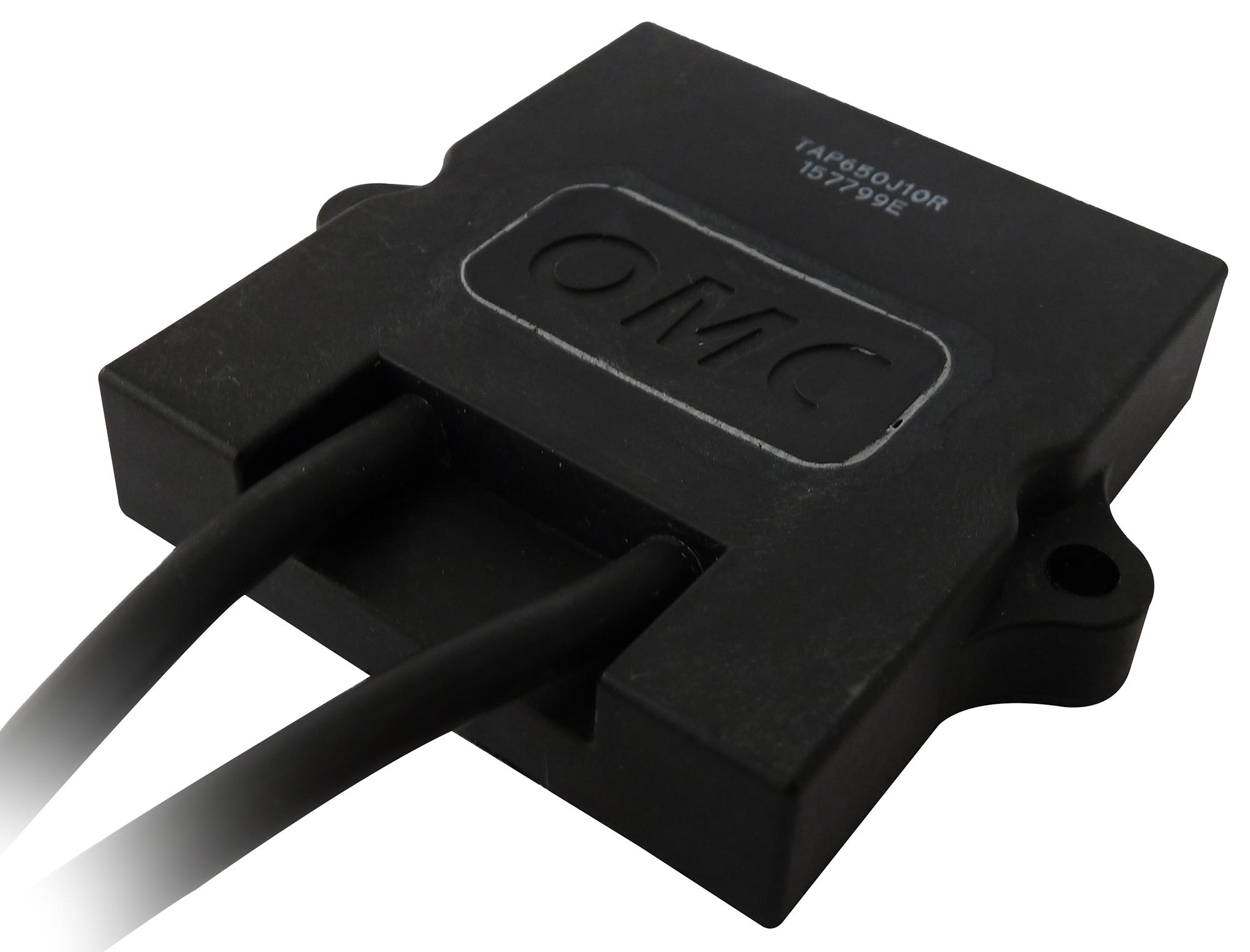

Ohmite TAP650J1R0E High Power Resistor
The TAP650J1R0E power resistor is a high-power, low profile component designed for demanding applications such as variable speed drives, power supplies, and motor control. It features a ceramic metalized film for improved heat transfer, a special resin-filled epoxy casing for insulation, and high dielectric strength with partial discharge capability. With a power rating of 650W at 85°C, it supports high pulse loads, withstanding voltages up to 12kV. Its stable resistance element ensures reliable performance under high wattage and pulse conditions, making it ideal for industrial power applications.
Ohmite TAP650J1R0E High Power Resistor Specifications:
- Power: 650W at 85°C bottom case temperature
- Resistance: 0.25 to 1MQ, stability under high wattage and pulse loading
- Voltage rating: up to 12kVDC, 6kVrms standard, special request 12kVrms
- Peak current: up to 1500A depending on pulse length and frequency
- Temperature coefficient: +150 ppm/°C
- Insulation Resistance: 10GΩ at 500V
- Partial Discharge: 4kVrms, <10 pC, up to 7kV upon request
- Operating temperature: -55°C to +150°C, short-time overload 1000W/10s
- Housing material: UL94-VO
- Dielectric strength: 6kVrms standard, up to 12kVrms upon request
- Inductance: approximately 80nH
- Thermal resistance: 0.117°C/W, using heat sinking technology
- Body size: approximately 2.6 inches in length, 0.8 inches in width
- Vibration: 2-500Hz/10g, 12,000 hours load life at 85°C
Buy the Ohmite TAP650J1R0E – Reliable High-Power Resistor for Industrial Applications
Order the high power resistor today for your industrial power systems. Designed with advanced ceramic metalized film for superior heat transfer, the TAP650J1R0E supports 650W power at 85°C with high dielectric strength, partial discharge capability, and robust insulation. Its stable resistance element withstands high pulse loads and voltages up to 12kV. Suitable for variable speed drives, motor control, and robotics, this resistor ensures reliable performance, durable operation, and conforms to RoHS standards. Purchase online now for fast, secure delivery and technical support.
Get Ohmite TAP650J1R0E today—built for high wattage power control and long-lasting durability.
Frequently Asked Questions
Where can I buy Ohmite TAP650J1R0E?
You can click on the BUY or RFQ button to purchase TAP650J1R0E from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part TAP650J1R0E?
You can download the TAP650J1R0E datasheet or visit the Ohmite website for support.
Who is the manufacturer of TAP650J1R0E?
Ohmite
