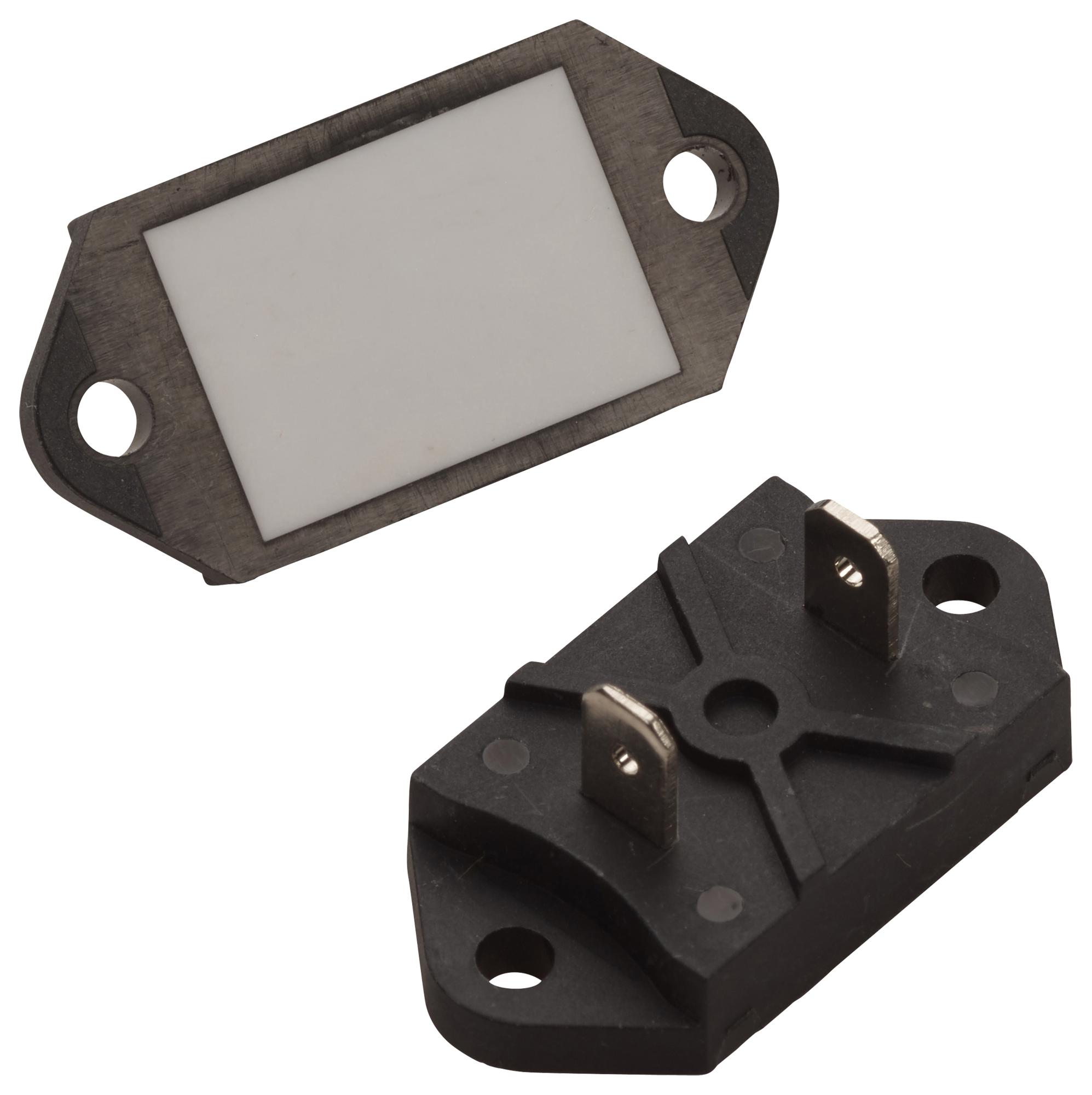

Ohmite TGHEV1K00FE High Power Heatsinkable Resistor
The TGHE Series 100W Heatsinkable Resistor is a thick-film, ceramic-based component designed for low to moderate power applications. Featuring a thermally efficient, non-inductive, RoHS-compliant construction, it provides effective heat dissipation suitable for variable speed drives, power supplies, control equipment, communication, and engine control. With resistance values from 0.24 to 1MΩ and tolerance ranges of 41% to 10%, it offers high dielectric strength, a maximum operating voltage of 1000V DC, and a working temperature range of -55°C to +130°C. Its robust design ensures reliable performance in demanding environments.
Ohmite TGHEV1K00FE High Power Heatsinkable Resistor Specifications:
- Rated Power: 100W at +85°C case temperature
- Resistance Range: 0.24 to 1MΩ
- Tolerance Range: 41% to 10%
- Maximum Operating Voltage: 1000V DC
- Dielectric Strength: 3000V DC
- Working Temperature: -55°C to +130°C
- Base Plate Installation: M3 screw, max torque 0.7Nm
- Weight: 6 grams
- Thermal Resistance: >3.4W / (mK)
- Material: Ceramic base with RoHS compliance
- Construction: Non-inductive, molded package
- Temperature Coefficient: TOR 219: +150ppm/°C, <1Q: +250ppm/°C
- Derating: 0.45 KW at 130°C
- Certifications: RoHS compliant, UL 94 V-0
- Dimensions: Based on ceramic substrate design with mounting features
Buy the Omite TGHEV1K00FE – Reliable Heatsinkable Resistor for Industrial Applications
Purchase the high-performance TGHE series heatsinkable resistor online to ensure reliable thermal management in industrial environments. This 100W ceramic resistor features excellent heat dissipation, a wide resistance range from 0.24 to 1MΩ, and robust construction suitable for variable speed drives, power supplies, and control equipment. Its RoHS compliance, high dielectric strength, and temperature range of -55°C to +130°C make it ideal for demanding applications. Buy online now to improve your control systems' efficiency and durability with this dependable resistor product.
Order your Omite Series TGHEV1K00FE heatsinkable resistor today and ensure high-power thermal management for your industrial projects.
Frequently Asked Questions
Where can I buy Ohmite TGHEV1K00FE?
You can click on the BUY or RFQ button to purchase TGHEV1K00FE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part TGHEV1K00FE?
You can download the TGHEV1K00FE datasheet or visit the Ohmite website for support.
Who is the manufacturer of TGHEV1K00FE?
Ohmite
