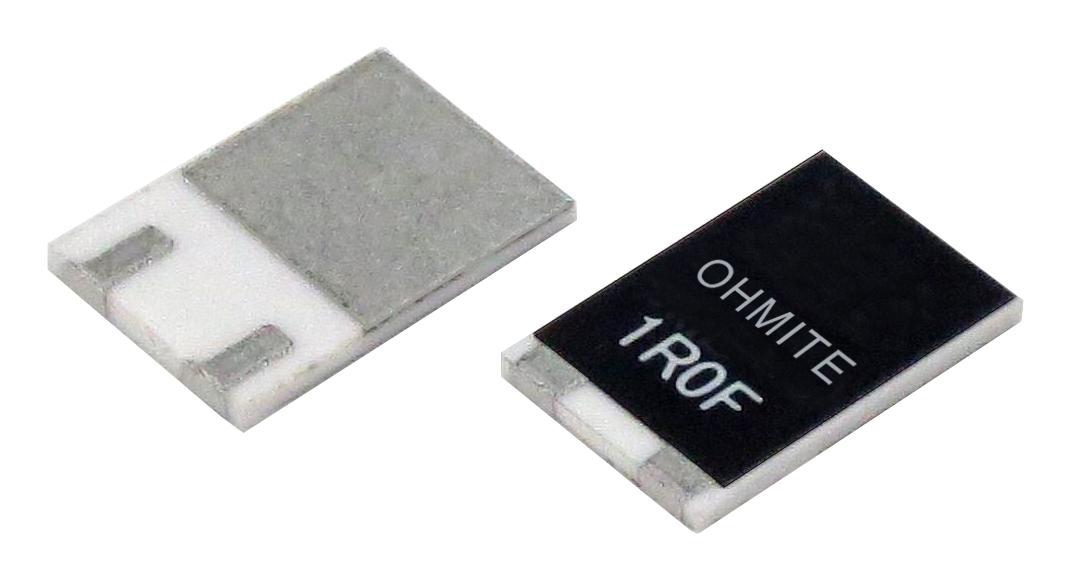

Ohmite TKH45P5K00FETR Thick Film Resistor
The TKH Series 45W Thick Film Resistor is designed for automotive and industrial applications, featuring a low profile, surge capability, and excellent high-speed pulse characteristics. Operating across temperatures from -55°C to +175°C, it offers low thermal resistance under 3.0°C/W for optimal cooling. It supports multiple resistance values, with a resistance range from 0.022Ω to 510kΩ, and is built with thick film technology on an epoxy resin substrate. Suitable for snubber circuits, motor control inverters, and high-voltage filtering, this resistor ensures durability, stability, and reliable performance under demanding conditions.
Ohmite TKH45P5K00FETR Thick Film Resistor Specifications:
- Rated Power: 45W at -55°C to 25°C backing metal temperature; 1.0W attached on simple footprint; Overload capacity: 50W for 5 seconds with heat-sink
- Heat Resistance: 3.0°C/W resistor to back metal, TCR 100ppm/°C, resistance range: 0.022Ω to 510kΩ at 5% tolerance, with various wattage options
- Tolerance: ±1% (F), load life +1.0% at 25°C over 1000 hours, humidity resistance of 40°C, 90-95% RH, 0.1W for 1000 hours
- Capacitance: 2.65 pF, typical, inductance: 14.65 nH, operating temperature: -55°C to +175°C, maximum current: 10A
- Voltage Rating: Less than 500V, insulation resistance over 1,000 MΩ between terminals and back metal, and vibration resistance conforming to IEC60068-2-6
- Lead Solderability: Over 95% coverage at 230°C for 3 seconds, weight: 0.324 grams, construction: epoxy resin and copper with Ni and Sn plating
- Construction includes resistive Pd-Ag film, Ni-Cr alloy resistance, and heat sink capability; suitable for high-frequency, pulse, and surge applications
Buy the Ohmite Series 45W Thick Film Resistor: TKH45P5K00FETR
Purchase the Ohmite 45W thick film resistor online today and enjoy fast delivery, reliable performance, and excellent thermal stability for your industrial, automotive, or power management projects. Its rugged construction and high temperature endurance ensure long-lasting durability, making it ideal for snubber circuits, motor control inverters, and high-speed pulse applications. Quick and easy to order, this resistor provides exceptional value and peace of mind for your engineering needs, ensuring optimal circuit performance and reliability in demanding environments.
Buy Ohmite 45W thick film resistor now and experience unmatched reliability and high-performance in demanding industrial and automotive applications.
Frequently Asked Questions
Where can I buy Ohmite TKH45P5K00FETR?
You can click on the BUY or RFQ button to purchase TKH45P5K00FETR from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part TKH45P5K00FETR?
You can download the TKH45P5K00FETR datasheet or visit the Ohmite website for support.
Who is the manufacturer of TKH45P5K00FETR?
Ohmite
