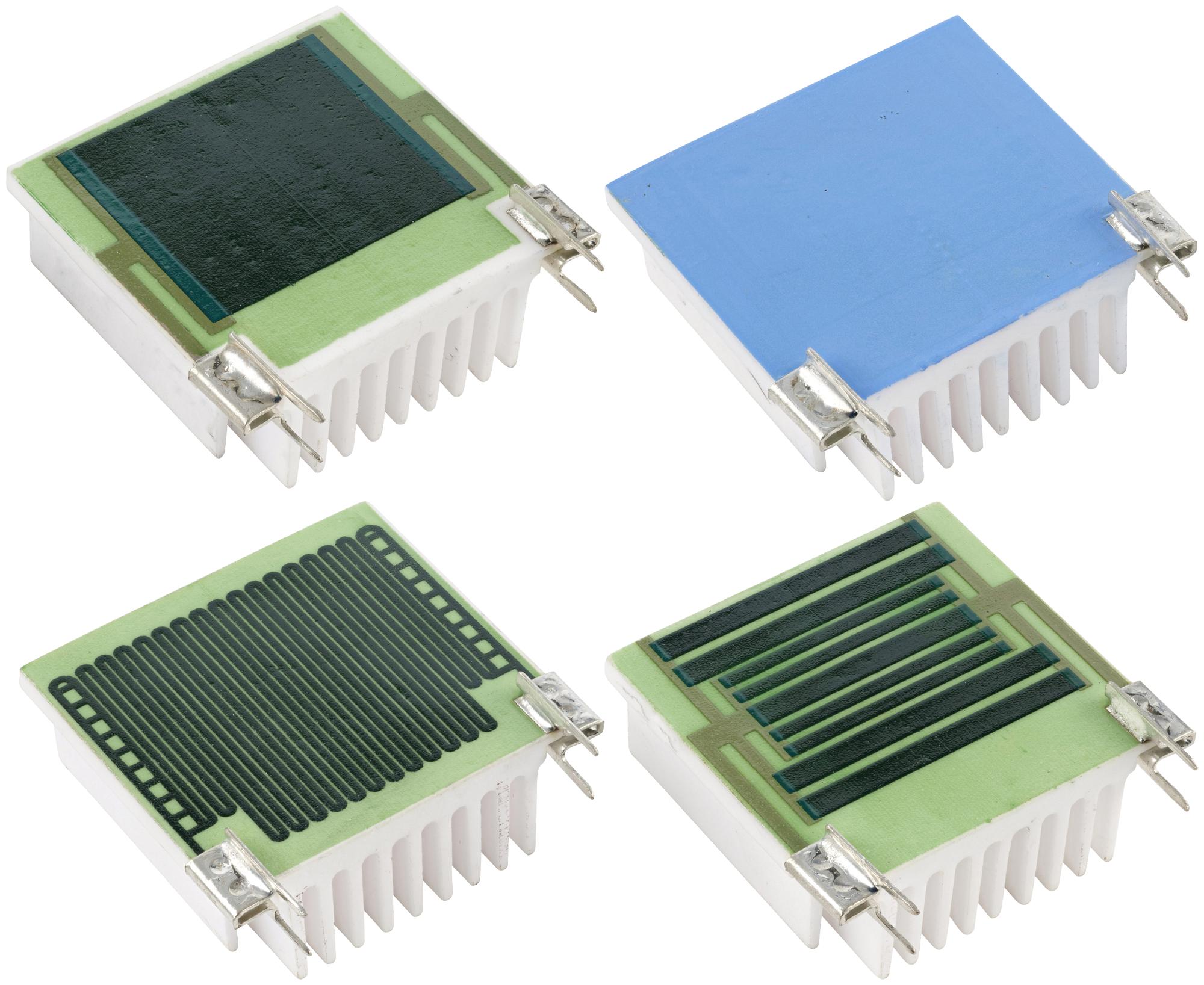

Ohmite TRHP01A200RF2E Thick Film Resistor
The TRH Series by Ohmite features thick film resistor and ceramic heatsink integration for efficient thermal management in board-mounted applications. Designed for continuous power, high voltage, and surge conditions, these models offer broad resistance ranges from 52Ω to 10MΩ, with power ratings up to 30W and temperature tolerance from -55°C to +180°C. They meet strict industry standards like Mil-Std-202 and IEC 61000-4-5, ensuring reliability, low inductance, and high dielectric strength. Ideal for high-temperature environments, these resistors provide exceptional performance in demanding electronic systems.
Ohmite TRHP01A200RF2E Thick Film Resistor Specifications:
- Resistance Range: 52Ω to 10MΩ
- Power Rating: 30W based on 25°C
- Temperature Range: -55°C to +180°C
- Resistance Tolerance: 1%, 5%, 10%
- Resistance Stability: <5ppm/°C TCR; ±0.25% resistance change over humidity and voltage
- Material: Thick film composition on 95% alumina substrate
- Termination: Solder plated phosphor bronze
- Dielectric Withstanding Voltage: >10,000MΩ
- Shock & Vibration Resistance: Meets Mil-Std-202 specifications
- Solderability: >95% coverage
- Insulation Resistance: >10,000MΩ
- Surge Immunity: Up to 4.5kV with 10 pulses (IEC 61000-4-5)
Buy the Ohmite Series TRH Thick Film Resistor: TRHP01A200RF2E
Explore and purchase the Ohmite TRH Series TRHP01A200RF2E online today to ensure superior thermal efficiency and electrical stability. These robust thick film resistors with integrated heatsinks are designed for demanding environments, offering excellent resistance stability, high voltage and surge handling, and compliance with industry standards. Perfect for high-temperature, high-power electronic systems, they provide reliable operation under extreme conditions. Order now to benefit from fast shipping and dedicated customer support for your engineering and manufacturing needs.
Buy Ohmite TRH Series TRHP01A200RF2E now and experience unmatched reliability and performance for high power and surge applications.
Frequently Asked Questions
Where can I buy Ohmite TRHP01A200RF2E?
You can click on the BUY or RFQ button to purchase TRHP01A200RF2E from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part TRHP01A200RF2E?
You can download the TRHP01A200RF2E datasheet or visit the Ohmite website for support.
Who is the manufacturer of TRHP01A200RF2E?
Ohmite
