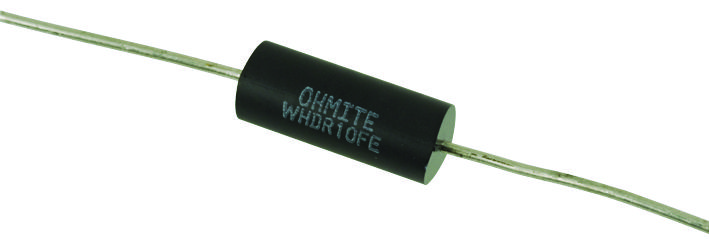

Ohmite WHDR10FET miniature wirewound resistor
The WHD series miniature molded wire-wound precision resistor ranges from 0.10 to 25kΩ. It features precision-formed stainless steel end caps and copper wire leads with a 100% tin coating. The manufacturing process employs CNC wire winding and spot welding to ensure consistent quality. The resistor is encapsulated in epoxy molding compound using advanced IC encapsulation mold and die technologies. It is designed to meet MIL-R-26F and MIL-STD-202 standard requirements.
Ohmite WHDR10FET miniature wirewound resistor Specifications:
- Power Rating: 0.10 - 25W
- Resistance Range: 0.10Ω to 25KΩ
- End Caps: Stainless steel, precision formed
- Leads: Copper wire, 100% Sn (lead free)
- Encapsulation: Epoxy molding compound
- Operating Temperature: -55°C to +150°C
- Certifications: Meets MIL-R-26F, MIL-STD-202
- Manufacturing Process: CNC wire winding and spot welding
- Resistance Wire: ISAOHM® wire
- Tolerance: D (0.5%), F (1.0%), J (5.0%)
- Temperature Coefficient: +20ppm/°C
- Dielectric Withstanding Voltage: >500 volts rms for 1 min
- Insulation Resistance: >10^9Ω at 500V for 1 min
- Storage and Life: Suitable for high-temp and long-term storage
Buy the Buy Ohmite WHD Series Part Number WHDR10FET Online
Purchase the Ohmite WHD series miniature wirewound resistor online today to ensure superior quality, durability, and precise performance. This resistor offers a resistance range from 0.10 to 25KΩ, encapsulated in epoxy for protection, with stainless steel end caps, and copper leads coated with 100% tin. Manufactured using CNC wire winding and spot welding technologies for consistent quality. Designed to meet military standards, it guarantees high reliability in demanding environments. Get quick delivery and expert support for your electronic or industrial applications.
Buy Ohmite WHDR10FET now and experience unmatched reliability and precision in high-temperature applications with this miniature wirewound resistor.
Frequently Asked Questions
Where can I buy Ohmite WHDR10FET?
You can click on the BUY or RFQ button to purchase WHDR10FET from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part WHDR10FET?
You can download the WHDR10FET datasheet or visit the Ohmite website for support.
Who is the manufacturer of WHDR10FET?
Ohmite
