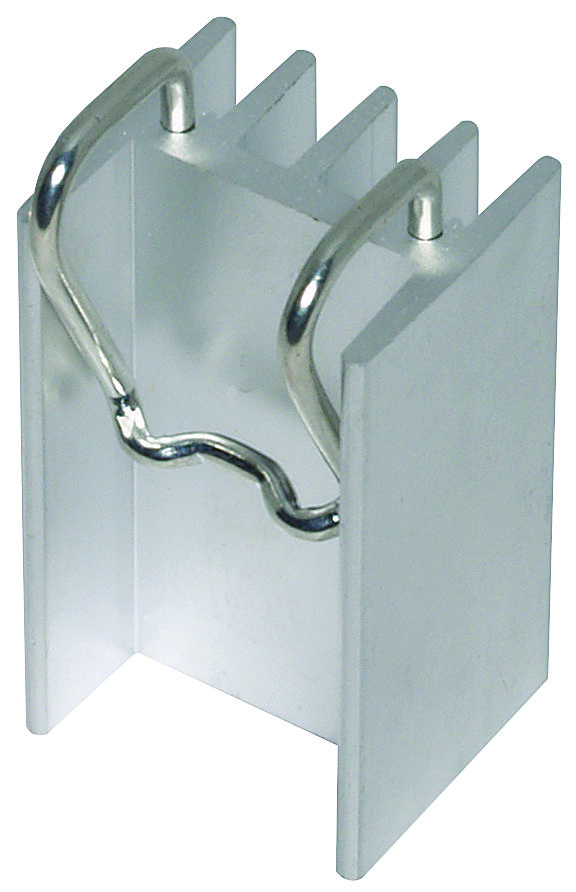

Ohmite WVT220101E Heatsink
The WV-T220-101E is a uniquely designed heatsink that combines a tin-plated, solderable integral spring clip with an extruded aluminum heat sink body, providing an all-in-one solution for mounting TO-220, TO-247, and TO-264 packages through-hole. This self-aligning heat sink features solderable feet and an integrated clip capable of applying 13.2 lbf of force to improve thermal performance. Its design ensures maximum repeatability, efficient heat transfer within limited space, resistance to shock and vibration, and high reliability. It is suitable for applications in HVAC systems and thermal management.
Ohmite WVT220101E Heatsink Specifications:
- Material: Aluminum alloy 6063-T5 or equivalent
- Mounting: Vertical thru-hole mount with 13.2 lbf clip force
- Surface Coating: Tin-plated, solderable
- Heat Dissipation: Suitable for natural convection at 10W dissipation
- Dimensions: 0.72 to 0.92 inches (approx. 18-23 mm) length based on model
- Weight: 10g to 22g depending on model
- Thermal Resistance: Rs-a=7°C/W to 8°C/W
- Integrated spring clip with patent pending design
- Temperature Range: Not specified in excerpt
- Compliance: RoHS compliant
- Design features: Self-aligning, high repeatability, shock, and vibration resistant
Buy the Buy Ohmite Heatsink Part Number WVT220101E Online
Purchase the Ohmite WVT220101E heatsink online today for reliable thermal management. Its innovative design combines a solderable, tin-plated spring clip with an extruded aluminum body, ensuring efficient heat transfer and easy mounting for TO-220, TO-247, and TO-264 packages. Perfect for high-reliability applications where resistance to shock and vibration is essential. With a compact form factor and RoHS compliance, this heatsink simplifies assembly and enhances system performance, making it an ideal choice for thermal solutions in electronics, power supplies, and industrial equipment.
Get Ohmite WVT220101E today—engineered for efficient thermal management and long-lasting durability with integrated spring clip and solderable feet.
Frequently Asked Questions
Where can I buy Ohmite WVT220101E?
You can click on the BUY or RFQ button to purchase WVT220101E from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part WVT220101E?
You can download the WVT220101E datasheet or visit the Ohmite website for support.
Who is the manufacturer of WVT220101E?
Ohmite
