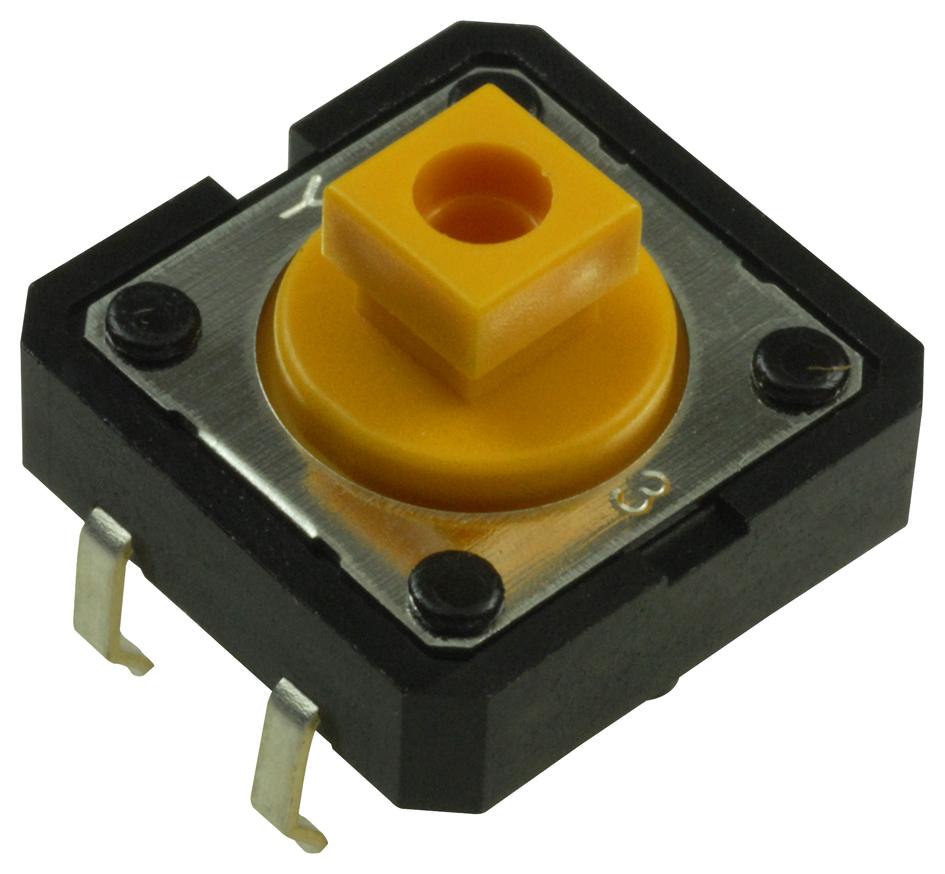

OMRON ELECTRONIC COMPONENTS B3F4055 tactile switch
The B3F4055 is a single-pole single-throw tactile switch with a projected plunger and silver-plated contacts. It features multiple operating forces ranging from 0.98N to 4.9N, rated for at least 100,000 operations. This switch offers an insulation resistance of 100 MΩ, dielectric strength of 500V, and IEC IP00 protection. Suitable for industrial automation, power management, and process control applications, it ensures reliable switching at 50mA at 24VDC. Type B32 key tops are available for projected plunger models, providing easy integration in various control systems.
OMRON ELECTRONIC COMPONENTS B3F4055 tactile switch Specifications:
- Contact Resistance: 100 mΩ max
- Insulation Resistance: 100 MΩ min at 250 VDC
- Dielectric Strength: 500 VAC, 50/60 Hz for 1 min
- Operating Forces: 0.98N, 1.27N, 1.47N, 1.76N, 2.55N, 4.9N
- Switching Capacity: Up to 50mA at 24V DC
- Operational Life: Minimum 100,000 cycles
- Protection: IEC IP00
- Ambient Temperature: -25°C to +70°C
- Material: Silver-plated contacts
- Applicable for industrial, automation, and process control systems
Buy the Omron B3F4055 – Reliable Tactile Switch for Industrial Applications
Purchase the Omron B3F4055 tactile switch online now and benefit from its proven durability and reliable operation in industrial automation, power management, and control systems. With a rated life of 100,000+ cycles, multiple operating forces, and silver-plated contacts, this switch ensures consistent performance in demanding environments. Ideal for designing robust control panels, instrumentation, and automation equipment, it provides high insulation resistance and dielectric strength. Secure your supply of this high-quality switch today and ensure seamless system operation and long-term reliability.
Order your Omron B3F4055 tactile switch today and enhance your automation projects with dependable, high-quality switching performance.
Frequently Asked Questions
Where can I buy OMRON ELECTRONIC COMPONENTS B3F4055?
You can click on the BUY or RFQ button to purchase B3F4055 from an authorized OMRON ELECTRONIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part B3F4055?
You can download the B3F4055 datasheet or visit the OMRON ELECTRONIC COMPONENTS website for support.
Who is the manufacturer of B3F4055?
OMRON ELECTRONIC COMPONENTS
