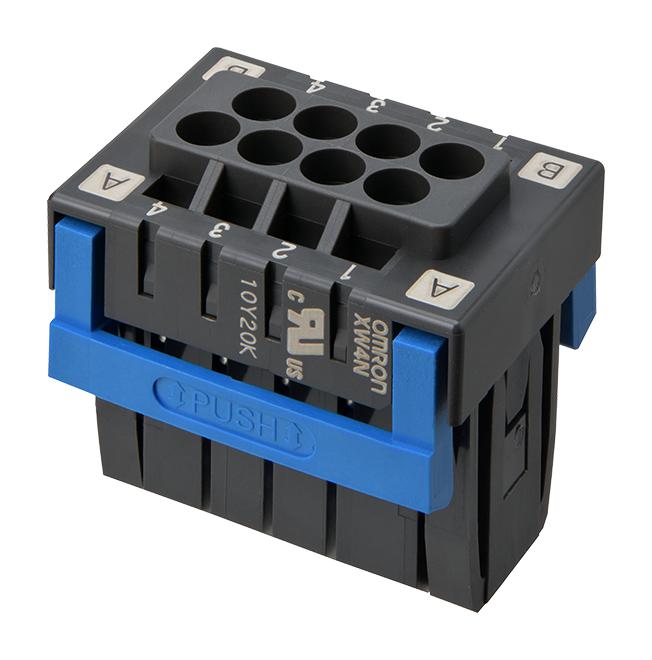

OMRON ELECTRONIC COMPONENTS XW4N16D2S Push-in Terminal Block
This is a 3.5mm pitch push-in terminal block connector designed for PCB applications, offering improved insertion/removal efficiency and reliable high-quality connections. Compatible with reflow mounting, it features standard pin identification, a hands-free wiring mechanism, UL standards compliance, and RoHS conformity. Available in various models for single and double-row configurations with straight or right-angle terminals, it supports wire ranges from 0.2 mm² to 1.5 mm², rated at 300V, with an operating temperature from -40°C to 100°C, and an insertion durability of 100 times. Constructed with UL94 V-0 rated materials, copper alloy contacts, and stainless steel springs, it ensures safety, durability, and ease of use in electronics and automation systems.
OMRON ELECTRONIC COMPONENTS XW4N16D2S Push-in Terminal Block Specifications:
- Pitch: 3.5mm
- Rated Voltage: 300V
- Rated Current: 10A
- Operating Temperature Range: -40°C to 100°C
- Wire Range: 0.2 mm² to 1.5 mm² (stranded and solid wire)
- Contact Material: Copper alloy with tin or gold plating
- Housing Material: PA (UL94 V-0), LCP (UL1059)
- Spring Material: Stainless steel
- Insertion Durability: 100 times
- Dimensions (typical): Length varies with model, approximate height 10-66.5mm depending on configuration
- Certifications: UL listed (File No.E245101), RoHS compliance
- Suitable for reflow mounting
- Approval: UL standard, RoHS compliant
- Assembly: Compatible with through-hole reflow, standard pin identification
- Protection Level: Mating and insulation resistance suitable for PCB mounting environments
Buy the Buy Omron 3.5mm pitch Push-in Terminal Block Part Number XW4N16D2S Online
Enhance your electronic assembly with the Omron Push-in Terminal Block featuring 3.5mm pitch, supporting wire ranges from 0.2 mm² to 1.5 mm². This reliable, UL-listed connector ensures high-quality connections, excellent durability, and compatibility with reflow mounting. Available in various configurations, it streamlines wiring with a hands-free mechanism and standard pin identification for quick installation and maintenance. Perfect for PCB applications in automation, industrial equipment, and electronic projects, delivering ease of use, safety, and compliance for professional assembly and repair.
Buy Omron XW4N16D2S now and experience unmatched reliability and performance in PCB connections and automation systems.
Frequently Asked Questions
Where can I buy OMRON ELECTRONIC COMPONENTS XW4N16D2S?
You can click on the BUY or RFQ button to purchase XW4N16D2S from an authorized OMRON ELECTRONIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part XW4N16D2S?
You can download the XW4N16D2S datasheet or visit the OMRON ELECTRONIC COMPONENTS website for support.
Who is the manufacturer of XW4N16D2S?
OMRON ELECTRONIC COMPONENTS
