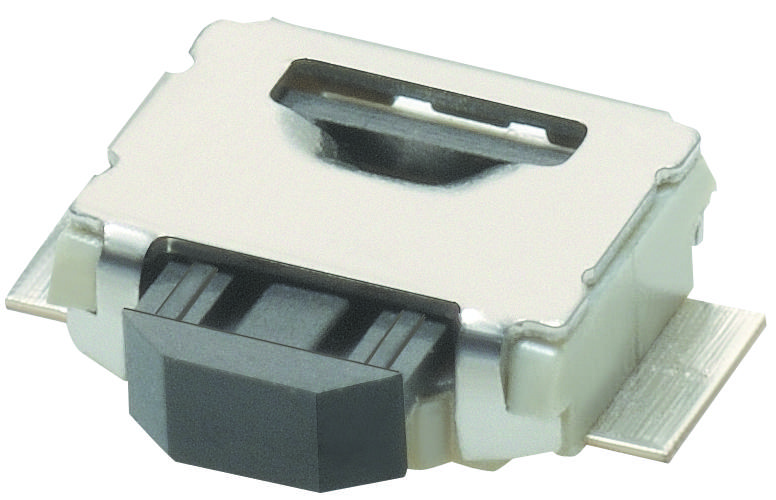

OMRON ELECTRONIC COMPONENTS B3U3000PB Tactile Switch
This ultra-small surface-mount tactile switch measures 1.2 x 3 x 2.5 mm and is ideal for high-density mounting in compact electronic devices. It features high contact reliability, models with ground terminals for static electricity protection, and options for automatic mounting with embossed tape. Suitable for resistive loads up to 50 mA at 3-12 VDC, it offers excellent durability, with 200,000 operations, and meets RoHS compliance standards, making it perfect for densely packed electronic systems requiring reliable tactile activation.
OMRON ELECTRONIC COMPONENTS B3U3000PB Tactile Switch Specifications:
- Dimensions: 1.2 x 3 x 2.5 mm (H x W x D)
- Operation Force: 1.50 +0.49 N (resistive load, top-actuated)
- Contact Resistance: 100 mΩ max.
- Mechanical Durability: 200,000 operations
- Operating Temperature: -25°C to +70°C
- Operating Humidity: 35% to 85%
- Contact Form: SPST-NO
- Insulation Resistance: 100 MΩ min.
- Dielectric Strength: 250 VAC for 1 min
- Degree of Protection: IEC IP40
- Weight: Approx. 0.022 g
- RoHS compliant
- Surface mount: Suitable for automatic placement with embossed tape
Buy the Omron Series Ultra-small Tactile Switch: B3U3000P
Enhance your electronic designs with the reliable Omron Series tactile switch, measuring just 1.2 x 3 x 2.5 mm. It offers high contact reliability, durability for up to 200,000 operations, and RoHS compliance, making it suitable for high-density mounting in compact devices. Compatible with automatic assembly processes, it features options for static electricity protection with ground terminals. Perfect for applications demanding precise tactile feedback, this tiny switch ensures dependable performance in a variety of electronic systems, ensuring longevity and consistent operation.
Order your Omron Series B3U3000P ultra-small tactile switch today and give your compact electronic projects the high reliability they deserve.
