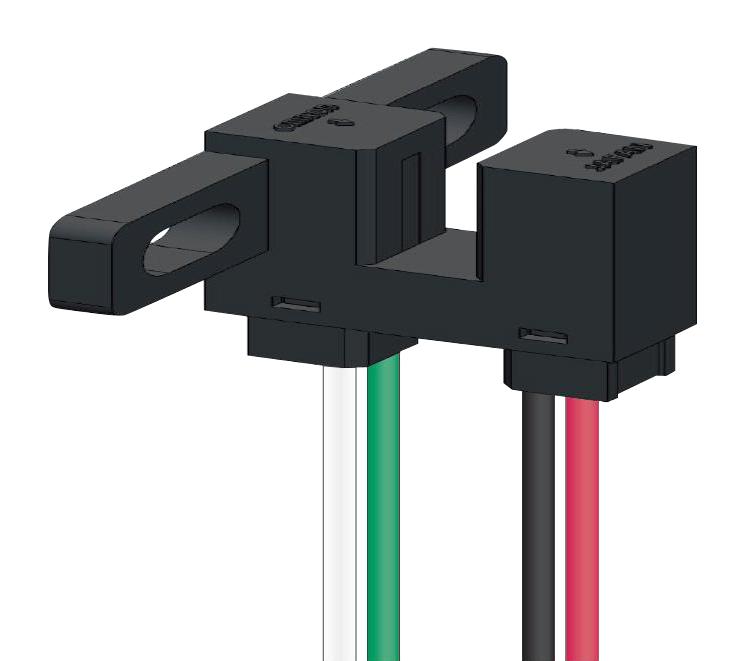

OMRON ELECTRONIC COMPONENTS EESX3161W11 Photomicrosensor
The photomicrosensor features transmissive operation with models EE-SX3161-W11 and EE-SX4161-W11, designed for precise optical detection in industrial automation. It includes integrated light-receiving elements and amplification circuits, with dust-proof options available. The device operates on 4.5 to 16 V power supply, connects directly to C-MOS or TTL circuits, and offers high response frequency up to 3 kHz. Key features include low-level and high-level output voltages, fast response delay times, and robust construction suitable for various sensing environments.
OMRON ELECTRONIC COMPONENTS EESX3161W11 Photomicrosensor Specifications:
- Power Supply Voltage: 4.5 to 16 V
- Output Voltage: Up to 28 V
- Output Current: 16 mA
- Response Frequency: Minimum 3 kHz
- Response Delay Time: 3 μs typical
- Dark-ON and Light-ON Models: EE-SX3161-W11 and EE-SX4161-W11
- Emitter Forward Voltage: 1.2 V typical, 1.5 V max at 20 mA
- Peak Emission Wavelength: 940 nm
- Maximum Emitter Forward Current: 50 mA
- Storage Temperature Range: -25°C to 85°C
- Operating Temperature Range: -25°C to 75°C
- Connector Type: Pre-wired with AWG28, solder-less lead wire connection
- Dimensions: Fan-out area around 23.7 mm, mount screw M3 with max torque 0.5 N·m
- Detecting distance: 0.5 mm to 30 mm depending on model
- Material: Durable housing designed for industrial conditions
Buy the Buy Omron Photomicrosensor Transmissive Part Number EESX3161W11 Online
Purchase the Omron Photomicrosensor today to enhance your automation systems. Designed for high-speed object detection, this transmissive sensor operates between 4.5 and 16 V, ensuring reliable performance in various industrial environments. Its compact design, fast response time of just 3 microseconds, and durable construction make it ideal for applications requiring precise proximity sensing. Available in dust-proof options, it connects easily via pre-wired leads for quick installation. Order now to improve process efficiency with this high-quality optical sensor.
Get Omron EESX3161W11 today—built for precise optical detection in industrial automation and long-lasting reliability.
Frequently Asked Questions
Where can I buy OMRON ELECTRONIC COMPONENTS EESX3161W11?
You can click on the BUY or RFQ button to purchase EESX3161W11 from an authorized OMRON ELECTRONIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part EESX3161W11?
You can download the EESX3161W11 datasheet or visit the OMRON ELECTRONIC COMPONENTS website for support.
Who is the manufacturer of EESX3161W11?
OMRON ELECTRONIC COMPONENTS
