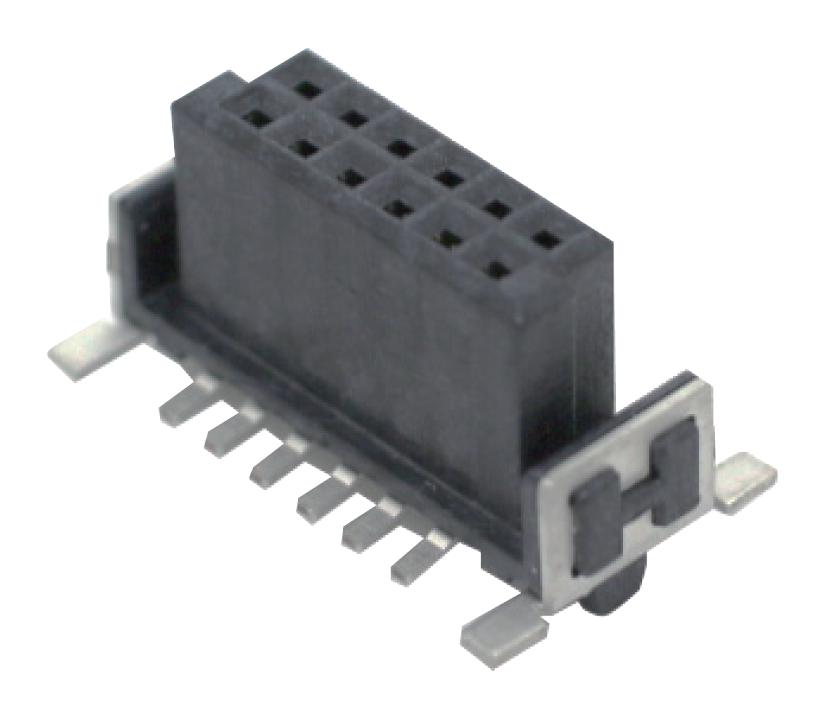

OMRON ELECTRONIC COMPONENTS XH5B50154N SMT Connector
The XH5 series comprises compact, versatile SMT connectors designed for PCB and cable interconnections, offering high reliability with RoHS compliance. Featuring various contact counts, mounting orientations, stacking heights, and hold-down types, these connectors support automated reflow mounting, ensuring precise installation. They include models with straight and right-angle configurations, as well as through-hole and cable-to-board options with strain relief. Suitable for demanding electronic applications, these connectors adhere to strict safety standards, with optimal soldering, handling, and storage precautions to maintain performance integrity.
OMRON ELECTRONIC COMPONENTS XH5B50154N SMT Connector Specifications:
- Pitch: 1.27 mm
- Contact Types: Straight, right-angle, socket, plug
- Contact Count: 12, 20, 26, 32, 40, 50, 68, 80
- Board Mounting: SMT, through-hole (THR), hold-down type
- Material: Copper alloy with gold or tin plating
- Rated Current: 1A
- Rated Voltage: 100 VAC
- Insulation Resistance: 1000 MΩ minimum at 100 VDC
- Dielectric Strength: 500 VAC for 1 minute
- Temperature Range: -55°C to +105°C (depending on model)
- Soldering Conditions: Max 260°C, within 20-40 seconds, recommended metal mask thickness 0.18-0.20 mm
- Mechanical Durability: 500 insertion cycles
- Compliance: RoHS
- Cable Compatibility: Flat cables, AWG30, 0.635mm pitch, tin-plated copper wire
Buy the Buy Omron SMT Connectors Part Number XH5B50154N Online
Secure your electronic assembly needs by purchasing the Omron XH5B50154N SMT connector online today. Designed for high-performance PCB and cable connections, these connectors support automated reflow mounting, are RoHS compliant, and are available in multiple configurations and contact counts. Easy to install, reliable, and durable, they ensure optimal electrical contact and mechanical stability. Order now to benefit from streamlined procurement, quick delivery, and dependability in your manufacturing or repair operations, enhancing overall product quality.
Buy Omron XH5B50154N now and experience unmatched reliability and versatile interconnection solutions for your electronic assemblies.
Frequently Asked Questions
Where can I buy OMRON ELECTRONIC COMPONENTS XH5B50154N?
You can click on the BUY or RFQ button to purchase XH5B50154N from an authorized OMRON ELECTRONIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part XH5B50154N?
You can download the XH5B50154N datasheet or visit the OMRON ELECTRONIC COMPONENTS website for support.
Who is the manufacturer of XH5B50154N?
OMRON ELECTRONIC COMPONENTS
