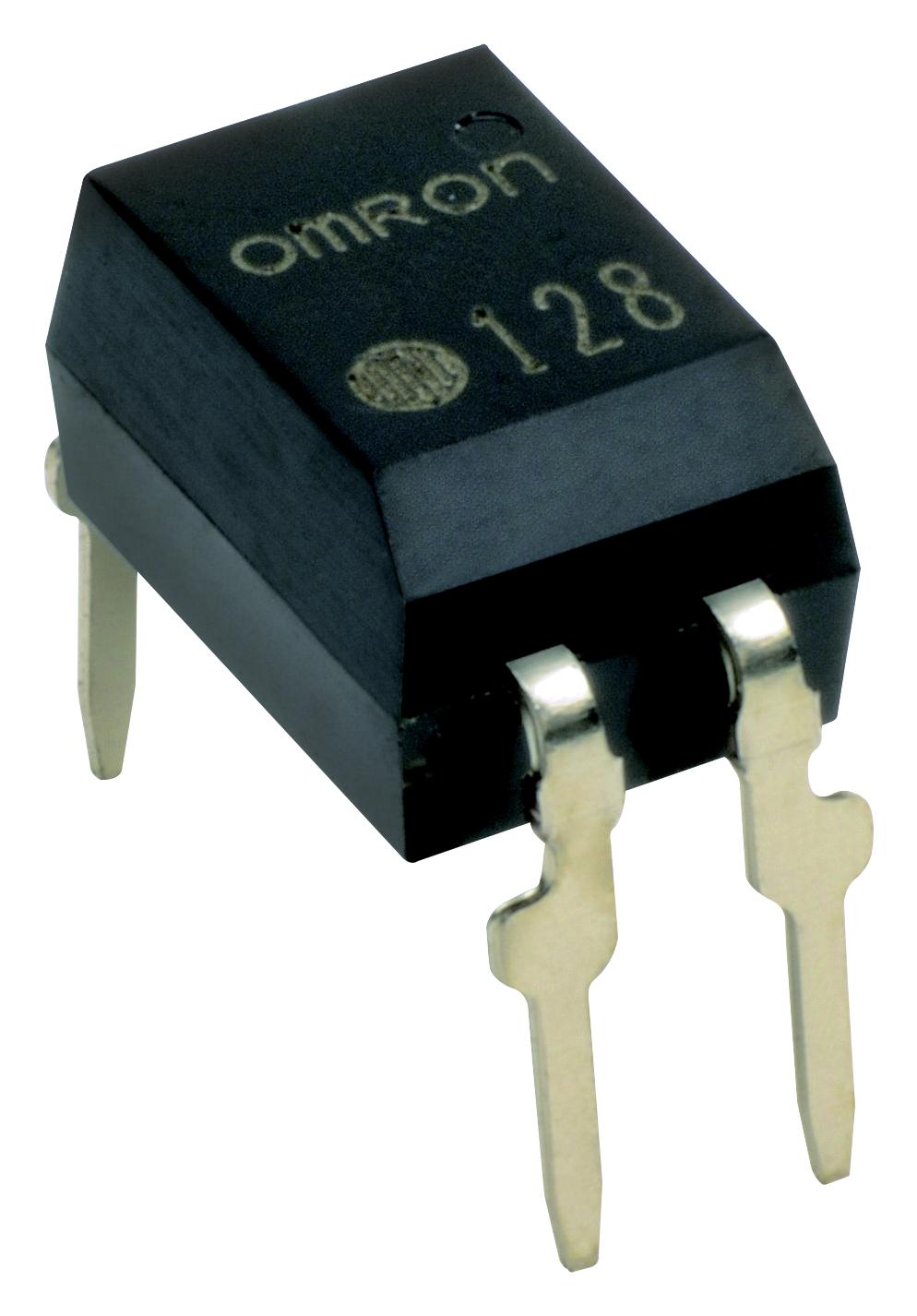

OMRON ELECTRONIC COMPONENTS G3VM61DY1 MOSFET Relay
The G3VM-61DY1 from Omron is a compact, versatile MOSFET relay in a 4-pin DIP surface-mount package. It features optical isolation with a dielectric strength of 5 kV AC between input and output, ensuring high electrical noise immunity. Supporting load voltages up to 60V and continuous currents up to 500mA, it is ideal for electrical power units, testing equipment, security devices, and industrial automation. The relay requires an LED trigger current of 7.5mA at 1.27V, operates from -20°C to 65°C, and is UL recognized, guaranteeing safety and reliability for sensitive electronic applications.
OMRON ELECTRONIC COMPONENTS G3VM61DY1 MOSFET Relay Specifications:
- Package Type: DIP4 surface-mount
- Contact Form: SPST-NO
- Load Voltage: Up to 60V
- Continuous Load Current: 500mA
- Dielectric Strength: 5,000 VAC between I/O
- Trigger LED Forward Current: 3mA maximum
- Trigger LED Forward Voltage: 1.27V at 10mA
- Operating Temperature Range: -20°C to 65°C
- Operating Ambient Temperature: Minimum -20°C, Maximum 65°C
- UL Recognized: File No. E80555
- Dimensions: Approx. 4.58mm x 4.58mm footprint
- Weight: 0.25 grams
Buy the Omron Series G3VM MOSFET Relay: G3VM61DY1
Order the Omron G3VM61DY1 online today and enhance your electronic projects with this reliable, compact relay. Its high dielectric strength of 5 kV AC ensures safety, while supporting load voltages up to 60V and currents up to 500mA. Perfect for industrial automation, measurement, security, and medical devices, this UL-recognized relay offers excellent insulation and safety margins. Easy to integrate into your designs, it guarantees consistent performance under ambient temperatures from -20°C to 65°C, making it the ideal choice for demanding electronic systems.
Buy Omron G3VM61DY1 now and experience unmatched reliability and high dielectric strength for industrial and safety-critical applications.
Frequently Asked Questions
Where can I buy OMRON ELECTRONIC COMPONENTS G3VM61DY1?
You can click on the BUY or RFQ button to purchase G3VM61DY1 from an authorized OMRON ELECTRONIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part G3VM61DY1?
You can download the G3VM61DY1 datasheet or visit the OMRON ELECTRONIC COMPONENTS website for support.
Who is the manufacturer of G3VM61DY1?
OMRON ELECTRONIC COMPONENTS
