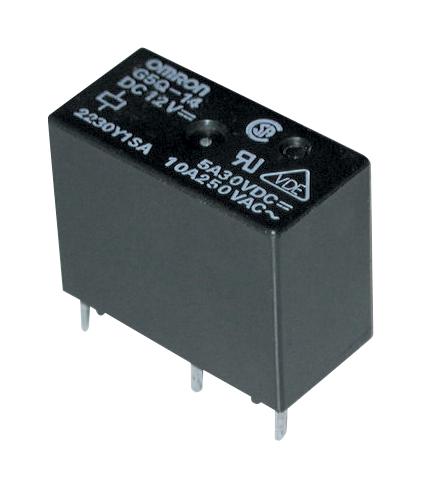

OMRON ELECTRONIC COMPONENTS G5Q1A4EUDC12 PCB Power Relay
The G50 is a compact PCB power relay designed for industrial applications, featuring a 10A switching capacity and excellent performance with low coil power consumption. It supports both SPST-NO and SPDT contact configurations, with high surge impulse withstand voltage of 8 kV. Suitable for control equipment output, its insulation system is Class F, conforming to IEC/EN 60335-1 standards. Constructed with Ag-Alloy contacts, it provides reliable switching for resistive loads up to 10A at 250 VAC. UL Recognized and CSA Certified, this relay offers durability, precision, and broad compatibility in automation and control systems.
OMRON ELECTRONIC COMPONENTS G5Q1A4EUDC12 PCB Power Relay Specifications:
- Contact Form: 1-pole (SPST-NO), 1c (SPDT)
- Rated Load: 10 A at 250 VAC for NO, 3 A at 125 VAC for NC
- Switching Voltage: Max 277 VAC, 30 VDC
- Contact Material: Ag-Alloy (Cd free)
- Coil Ratings: 5 VDC, 9 VDC, 12 VDC, 24 VDC; Coil Resistance varies with voltage
- Coil Power Consumption: 200 mW (SPST-NO), 400 mW (SPDT)
- Impulse Withstand Voltage: 8 kV between coil and contacts
- Insulation System: Class F (UL 1446)
- Operating Temperature: -40°C to 105°C (standard), -40°C to 85°C (high-capacity)
- Vibration Resistance: 10-55 Hz, 0.75 mm amplitude
- Shock Resistance: 1000 m/s²
- Mechanical Life: Up to 5,000,000 operations (resistive loads)
- Electrical Life: Up to 100,000 operations at rated load
- Certifications: UL Recognized, CSA Certified
- Weight: Approx. 6.5 to 9 grams
- Standards: IEC/EN 60335-1 conformed, RoHS compliant
Buy the OMRON G5Q-000 U+2013 Reliable PCB Power Relay for Industrial Applications
Purchase the OMRON G5Q-000 PCB Power Relay online today and enhance your automation projects with a compact, reliable relay that offers high switching capacity, excellent durability, and proven safety certifications. Perfect for assembly in control equipment and industrial electronics, this relay guarantees performance with low coil power consumption and high impulse withstand voltage. Easy to install and RoHS compliant, it is the ideal component for your automation, control, and manufacturing needs. Order now for immediate delivery and improve your system reliability.
Order your OMRON G5Q-000 PCB Power Relay today and ensure reliable switching performance in your control systems.
Frequently Asked Questions
Where can I buy OMRON ELECTRONIC COMPONENTS G5Q1A4EUDC12?
You can click on the BUY or RFQ button to purchase G5Q1A4EUDC12 from an authorized OMRON ELECTRONIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part G5Q1A4EUDC12?
You can download the G5Q1A4EUDC12 datasheet or visit the OMRON ELECTRONIC COMPONENTS website for support.
Who is the manufacturer of G5Q1A4EUDC12?
OMRON ELECTRONIC COMPONENTS
