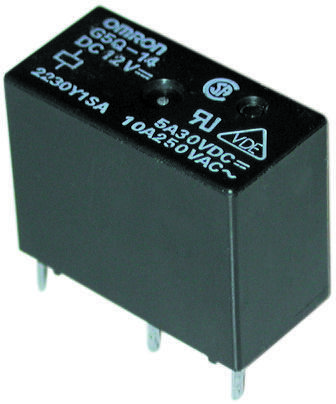

OMRON ELECTRONIC COMPONENTS G5Q1DC12 PCB Power Relay
The G50 PCB power relay is a compact, reliable electromagnetic switching device rated at 10A, suitable for industrial and control applications. It features a single pole design with excellent switching performance, affording high impulse withstand voltage of 8 kV between coil and contacts. This relay offers low coil power consumption, with variants consuming 200 mW to 400 mW, and conforms to IEC/EN 60335-1 standards, including UL1446 Class F insulation system. Suitable for both general purpose and home appliance uses, it provides dependable operation in various electrical control systems with RoHS compliance.
OMRON ELECTRONIC COMPONENTS G5Q1DC12 PCB Power Relay Specifications:
- Contact Ratings: 10 A at 250 VAC (NO), 3 A at 125 VAC (NC), 5 A at 30 VDC (NO)
- Contact Material: Silver Alloy (Cd Free)
- Insulation Resistance: 1,000 MΩ min.
- Between coil and contacts: 4,000 VAC, 50/60 Hz for 1 min
- Dielectric Strength: 1,000 VAC, 50/60 Hz for 1 min
- Impulse withstand voltage: 8 kV
- Coil Power Consumption: 200 mW (SPST-NO), 400 mW (SPDT)
- Coil Resistance: varies with voltage; e.g., 5 VDC coil approx. 125 Ω
- Operating Temperature: -40°C to 105°C
- Mechanical Life: 10 million operations
- Electrical Life: 200,000 operations at specified loads
- Vibration Resistance: 10-55-10 Hz, 0.75 mm amplitude
- Shock Resistance: 100 m/s²
- RoHS Compliant, UL Recognized, CSA Certified
- Dimensions: approx. 20.3 mm x 15.8 mm (bottom view, model dependent)
Buy the Omron G5Q1DC12 – Reliable PCB Power Relay for Industrial Applications
Enhance your electronic projects with the reliable G5Q series PCB power relay. Designed for industrial and control environments, it offers high current handling, excellent switching capacity, and robust insulation. Its compact form factor makes it suitable for tight spaces, while its high impulse withstand voltage ensures safety and durability. Easily order online to get fast delivery and incorporate this high-quality relay into your automation systems, home appliances, or control panels with confidence and ease.
Order your Omron Series G5Q1DC12 PCB Power Relay today and ensure dependable switching performance in your control systems.
Frequently Asked Questions
Where can I buy OMRON ELECTRONIC COMPONENTS G5Q1DC12?
You can click on the BUY or RFQ button to purchase G5Q1DC12 from an authorized OMRON ELECTRONIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part G5Q1DC12?
You can download the G5Q1DC12 datasheet or visit the OMRON ELECTRONIC COMPONENTS website for support.
Who is the manufacturer of G5Q1DC12?
OMRON ELECTRONIC COMPONENTS
