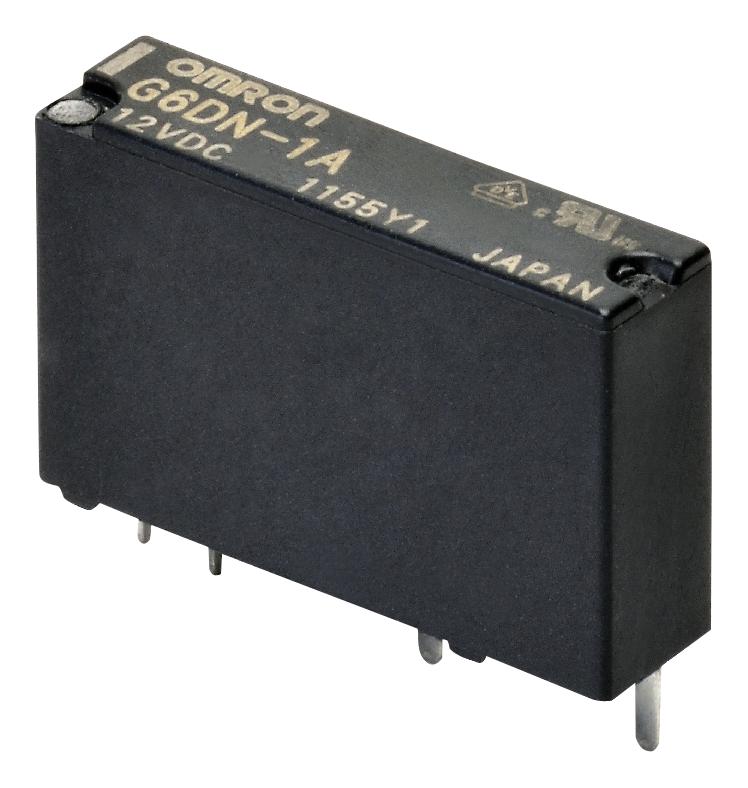

OMRON ELECTRONIC COMPONENTS G6DN1ALDC5 PCB Power Relay
The G6DN PCB power relay is a high-performance SPST-NO relay designed for precise control in automation, building systems, and control outputs. It features a slim design measuring 20 x 5.08 x 12.5 mm, capable of switching 5A at 250 VAC or 30 VDC with high contact reliability through crossbar-twin contact technology. With low power consumption of approximately 110 mW, it meets safety standards EN61010-1 and EN61010-2-201, providing reinforced insulation with a minimum dielectric strength of 600 V, ensuring durability and safety for various electrical control applications.
OMRON ELECTRONIC COMPONENTS G6DN1ALDC5 PCB Power Relay Specifications:
- Dimensions: 20 x 5.08 x 12.5 mm
- Contact Rating: 5A at 250 VAC, 2A at 30 VDC
- Contact Material: Ag-Alloy with Au plating
- Maximum Switching Voltage: 277 VAC, 125 VDC
- Coil Resistance: 22.0 Ω at 5 VDC, 46 Ω at 24 VDC, 9.2 Ω at 12 VDC
- Rated Coil Power Consumption: Approx. 110 mW
- Insulation Resistance: 1,000 MQ min at 500 VDC
- Dielectric Strength: 750 VAC for contacts, 6kV between coil and contacts
- Operate Time: ≤10 ms, Release Time: ≤5 ms
- Ambient Temperature Range: -40°C to +90°C
- Vibration Resistance: 10-55 Hz, 0.75 mm amplitude
- Shock Resistance: 100 m/s² (malfunction threshold)
- Mechanical Durability: 20 million operations min.
- Electrical Durability: 100,000 operations at rated load
- Weight: Approx. 3 grams
- Certifications: UL, CSA, VDE approved
- Insulation Voltage: 300 V, Pollution Degree: 2
- Flammability: UL94 V-0, Category of Protection: Sealed
Buy the Buy Omron G6DN PCB Power Relay Part Number G6DN1ALDC5 Online
Purchase the Omron G6DN PCB Power Relay online today and experience reliable high-current switching, compact size, and low power consumption ideal for automation, building, and control systems. This relay meets safety standards including UL, CSA, and VDE, offering reinforced insulation and excellent durability for long-term use. Its sealed design ensures safe operation in various environments. Buy now to ensure your control system's stability with this high-quality, compact relay that delivers efficient performance and trusted safety standards.
Get Omron G6DN1ALDC5 today—designed for reliable switching and safety in automation and building control systems.
Frequently Asked Questions
Where can I buy OMRON ELECTRONIC COMPONENTS G6DN1ALDC5?
You can click on the BUY or RFQ button to purchase G6DN1ALDC5 from an authorized OMRON ELECTRONIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part G6DN1ALDC5?
You can download the G6DN1ALDC5 datasheet or visit the OMRON ELECTRONIC COMPONENTS website for support.
Who is the manufacturer of G6DN1ALDC5?
OMRON ELECTRONIC COMPONENTS
