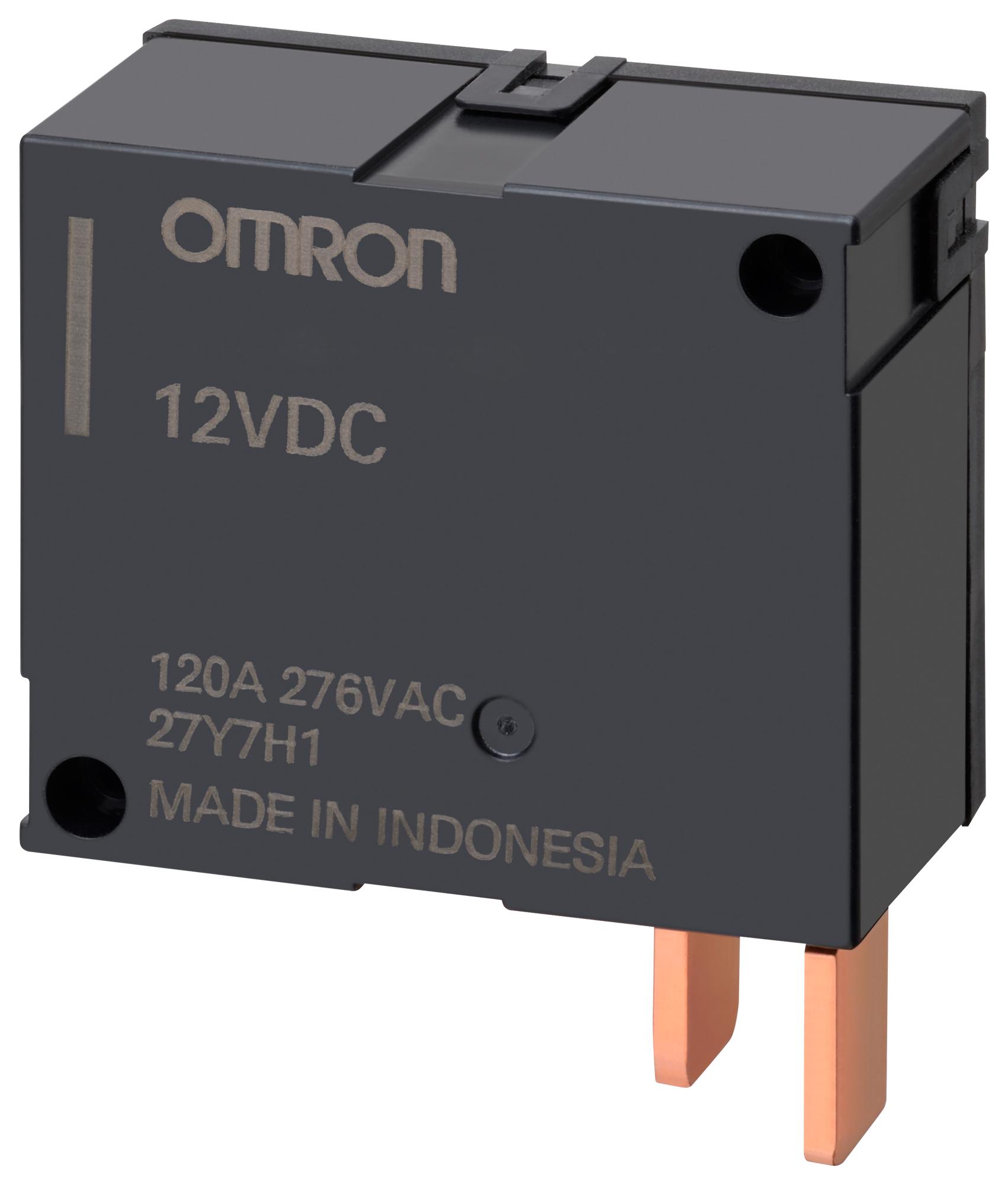

OMRON ELECTRONIC COMPONENTS G9TBK1ATWEDC12 Power Latching Relay
The G9TB AC Power Latching Relay is a high-capacity, compact relay capable of switching 120 A at 276 VAC, ideal for smart meters, PV inverters, lighting control, and EV chargers. It features single- and double-winding latching options with robust insulation resistance and dielectric strength. Its dimensions are approximately 37 mm x 43 mm x 22 mm, with top-view terminal arrangements. Designed for reliable operation in harsh environments, it offers low power consumption, high overcurrent capability, and complies with IEC62055-31 standards, ensuring durable performance for demanding electrical applications.
OMRON ELECTRONIC COMPONENTS G9TBK1ATWEDC12 Power Latching Relay Specifications:
- Contact Resistance: 0.4 mΩ max.
- Set Time: 25 ms max.
- Reset Time: 25 ms max.
- Insulation Resistance: 1,000 MΩ min.
- Dielectric Strength: 4,000 VAC (contacts to coil) for 1 min.
- Impulse Withstand: 8 kV between coil and contacts.
- Shock Resistance: 100,000 mechanical operations; 5,000 electrical operations at 120 A, 276 VAC.
- Ambient Operating Temperature: -40°C to 85°C.
- Weight: Approximately 709 grams.
- Dimensions: 37 mm x 43 mm x 22 mm.
- Coil Voltage: 12 VDC.
- Rated Current (single-winding): 225 mA at 12 VDC.
- Rated Current (double-winding): 451 mA at 12 VDC.
- Rated Power Consumption: Approx. 2.7 W for single-winding, 5.4 W for double-winding.
- Terminal: Top-view internal connection with M8 screw or welding terminals.
- Standards: IEC62055-31 UC3-compliant.
- Operational Life: Up to 120,000 switching cycles resistively, depending on load and environment.
