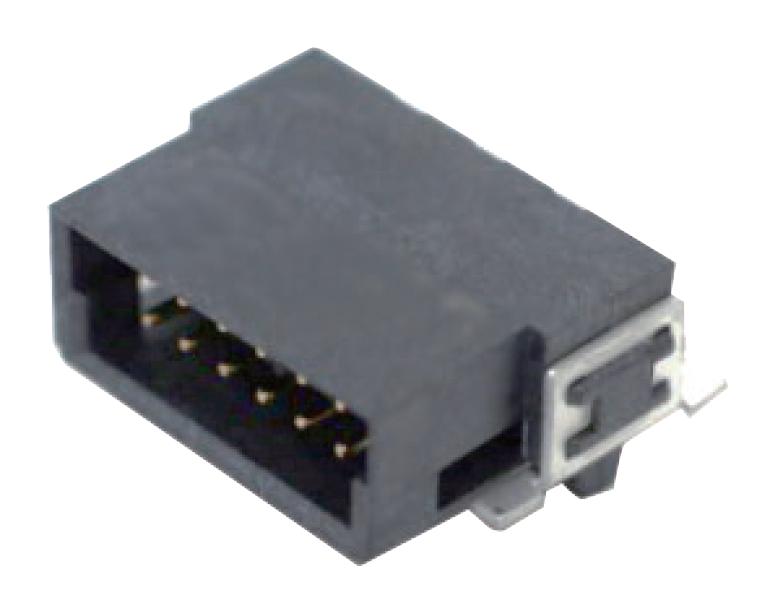

OMRON ELECTRONIC COMPONENTS XH5A6815N XH5 Connector
The XH5 series 1.27-mm pitch SMT connectors provide flexible board-to-board and board-to-cable connections, with options for vertical, horizontal, and stacking configurations. Designed for reflow mounting, they feature low contact resistance, RoHS compliance, and various contact counts. Suitable for automation, these connectors ensure reliable electrical and mechanical connection in compact electronic assemblies, with optional strain relief and crimping sockets for easy assembly. They meet industry standards and include comprehensive precautions for proper handling and mounting, making them ideal for intricate electronic applications.
OMRON ELECTRONIC COMPONENTS XH5A6815N XH5 Connector Specifications:
- Pitch: 1.27 mm
- Contact Counts: 12, 20, 26, 40, 50, 68, 80 contacts
- Housing Material: LCP (UL94 V-0), PBT
- Contact Material: Copper alloy, gold plated
- Rated Current: 1A
- Rated Voltage: 100 VAC
- Insulation Resistance: 1000 MΩ min. at 100 VDC
- Dielectric Strength: 500 VAC for 1 min.
- Temperature Range: -55°C to +105°C
- Soldering Conditions: Max 260°C, within 20-40 seconds
- RoHS compliant, conforming to certification standards
- Compatible with reflow mounting, with optional hold-down type for enhanced mounting
- Includes crimping sockets and strain relief options
- Applicable for surface-mount technology and automation assembly methods
- Suitable for various mounting orientations and stacking heights
