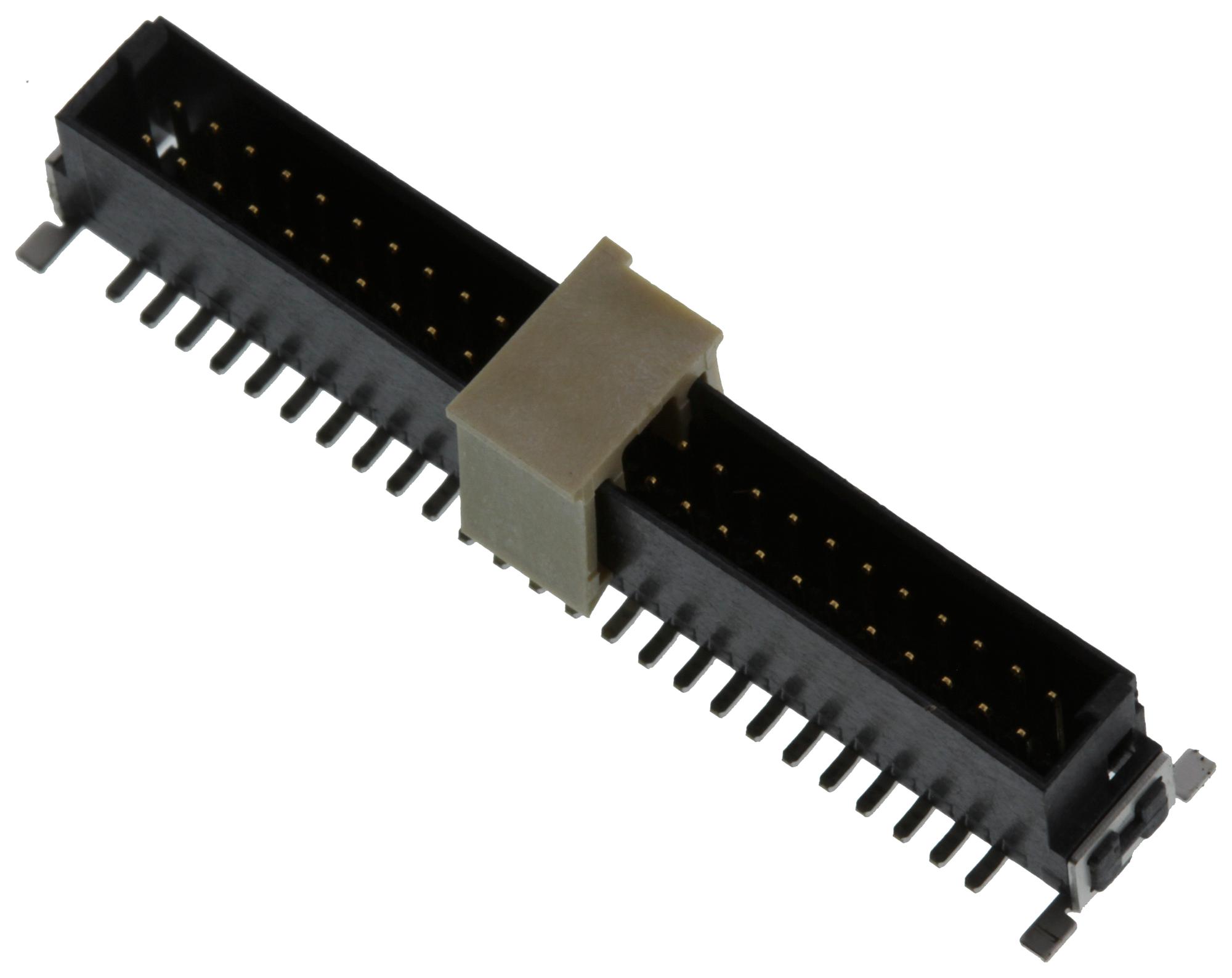

OMRON ELECTRONIC COMPONENTS XH5E80152N Board-to-Board Connector
The XH5-N series consists of compact, versatile SMT connectors with 1.27-mm pitch designed for board-to-board and board-to-cable connections. Featuring various contact configurations, stacking, horizontal, and vertical connection options, these connectors are compatible with reflow mounting and RoHS compliant. They offer robust durability with rated currents of 1A and voltages of 100 VAC, suitable for high-density electronic assemblies. Their design minimizes assembly issues, ensures reliable electrical contact, and accommodates multiple mounting heights, making them ideal for space-constrained and demanding electronic applications.
OMRON ELECTRONIC COMPONENTS XH5E80152N Board-to-Board Connector Specifications:
- Pitch: 1.27 mm
- Rated current: 1A
- Rated voltage: 100 VAC
- Contact resistance: 20 mΩ max
- Insulation resistance: 1000 MΩ min at 100 VDC
- Dielectric strength: 500 VAC for 1 min
- Temperature range: -55°C to +105°C
- Housing Material: LCP (UL94 V-0)
- Contact Material: Copper alloy, gold or tin plated
- Soldering temperature: Max 260°C for 20-40s
- Applicable wire: AWG30, 0.635 mm pitch flat cable
- RoHS compliant, compatible with reflow soldering, various contact arrangements
Buy the Omron Series XH5 Connectors: XH5-N
Enhance your electronic projects with the Omron XH5-N series connectors, designed for space-efficient, high-reliability connections. These SMT connectors support reflow mounting, multiple contact configurations, and vertical or horizontal orientations, making them suitable for complex circuit designs. Built with durable materials and RoHS compliant, they ensure long-lasting performance in demanding environments. Whether for industrial equipment, consumer electronics, or automation systems, purchase the Omron XH5-N online today to ensure seamless connectivity and robust electrical performance in your next project.
Get Omron XH5-N today—built for high-density electronic assemblies and reliable connections.
